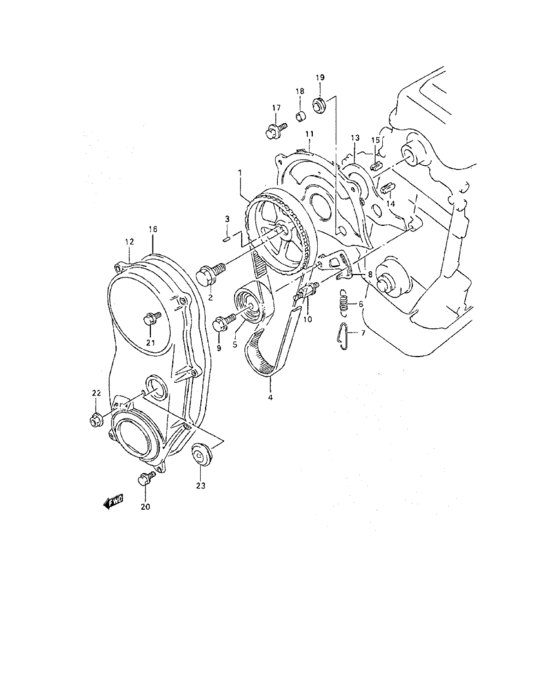

Timing belt (GASOLINE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12741-53B01-000 PULLEY,CAMSHAFT TIMING |
12741-53B01-000 |
from US $70.40 |
||
|
2
|
2
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $1.28 |
||
|
2
|
2
01550-1025A-000 BoltBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
3
|
3
04221-05109-000 PIN |
04221-05109-000 |
from US $0.38 |
||
|
4
|
4
12761-84C10-000
Belt, timing
|
12761-84C10-000 |
— | ||
|
5
|
5
12810-71C02-000 TENSIONER,TIMING BELT |
12810-71C02-000 |
from US $51.91 |
||
|
6
|
6
12821-50G00-000
スプリング,テンショナ
|
12821-50G00-000 |
— | ||
| replacement | |||||
|
6
|
6
12821-50G01-000 SPRING,TENSIONER |
12821-50G01-000 |
US $3.64 |
||
|
7
|
7
12823-82001-000 DAMPER,TENSIONER SPRING |
12823-82001-000 |
from US $1.76 |
||
|
8
|
8
12822-72F00-000
PLATE,TENSIONER
|
12822-72F00-000 |
— | ||
|
9
|
9
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
9
|
9
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
10
|
10
12825-71C02-000 BOLT,TENSIONER PLATE |
12825-71C02-000 |
from US $3.26 |
||
|
11
|
11
11360-82001-000 COVER,TIMING BELT,INSIDE |
11360-82001-000 |
from US $5.49 |
||
|
12
|
12
11390-51G00-000
COVER,TIMING BELT OUTSIDE
|
11390-51G00-000 |
— | ||
| replacement | |||||
|
12
|
12
11390-72F10-000 COVER,TIMING BELT OUTSIDE |
11390-72F10-000 |
US $85.88 |
||
|
13
|
13
11383-82000-000 SEAL,TIMING BELT COVER INSIDE |
11383-82000-000 |
from US $5.56 |
||
|
14
|
14
11394-70B00-000 SEALL:28>18.5 |
11394-70B00-000 |
from US $1.49 |
||
|
15
|
15
11394-70B00-000 SEALL:28>12.5 |
11394-70B00-000 |
from US $1.49 |
||
|
16
|
16
11396-71C00-000 SEAL,TIMING BELT COVER OUTL:1070>990 |
11396-71C00-000 |
from US $5.02 |
||
|
17
|
17
01107-06206-000
Bolt, front
6X20 |
01107-06206-000 |
— | ||
| replacement | |||||
|
17
|
17
01500-0620A-000 Bolt6X20 |
01500-0620A-000 |
from US $0.76 |
||
|
18
|
18
09180-06106-000 SPACER(6.8X10X7)6.8X10X7 |
09180-06106-000 |
from US $0.92 |
||
|
19
|
19
09308-10004-000 GROMMET |
09308-10004-000 |
from US $0.90 |
||
|
20
|
20
09103-06186-000
Bolt
|
09103-06186-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
21
|
21
09103-06187-000
Bolt (6x20)
|
09103-06187-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-06207-000 Bolt |
01550-06207-000 |
from US $0.96 |
||
|
22
|
22
09159-06077-000 NUT |
09159-06077-000 |
from US $1.28 |
||
|
23
|
23
09250-30010-000
Grommet
|
09250-30010-000 |
— | ||
| replacement | |||||
|
23
|
23
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
