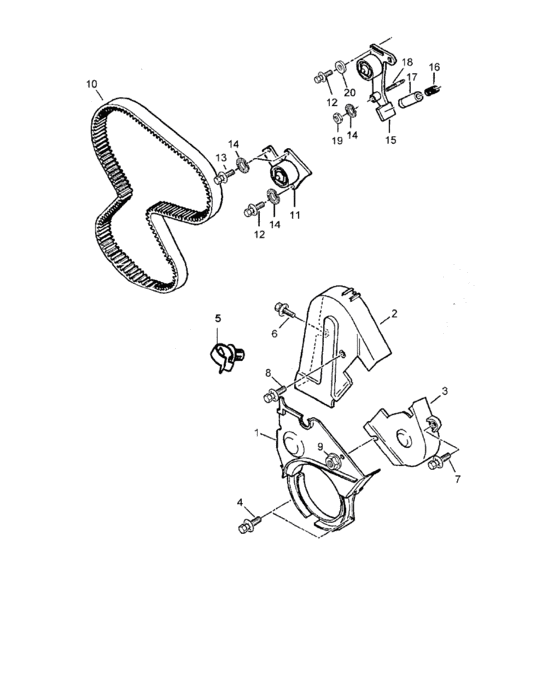

Timing cover (TURBO DIESEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11380-86CA0-000
Right timing, case
|
11380-86CA0-000 |
— | ||
|
2
|
2
11390-86CA0-000
Left timing, case
|
11390-86CA0-000 |
— | ||
|
3
|
3
11360-86CA0-000
Right timing case
|
11360-86CA0-000 |
— | ||
|
4
|
4
11119-86CA6-000
Screw
7x100-12 |
11119-86CA6-000 |
— | ||
|
5
|
5
11367-86CA0-000
Clip
|
11367-86CA0-000 |
— | ||
|
6
|
6
11119-86CA8-000
Screw
7x100-35 |
11119-86CA8-000 |
— | ||
|
7
|
7
11119-86CA7-000
Screw hrdl
6x100-25 |
11119-86CA7-000 |
— | ||
|
8
|
8
11119-86CA9-000
Screw
6x100-16 |
11119-86CA9-000 |
— | ||
|
9
|
9
M8316-86CA0-000
Nut with washer
6X100 |
M8316-86CA0-000 |
— | ||
|
10
|
10
12761-86CA0-000
Belt, timing
|
12761-86CA0-000 |
— | ||
|
11
|
11
12810-86CA0-000
Roller
|
12810-86CA0-000 |
— | ||
|
12
|
12
11119-86CA3-000
Bolt
8X125-30 |
11119-86CA3-000 |
— | ||
|
13
|
13
11119-86CA4-000
Screw
8X1,25-20 |
11119-86CA4-000 |
— | ||
|
14
|
14
08321-86CA3-000
Spring washer
8X17-0.8 |
08321-86CA3-000 |
— | ||
|
15
|
15
12830-86CA0-000
Tensioner
|
12830-86CA0-000 |
— | ||
|
16
|
16
12821-86CA0-000
Spring
|
12821-86CA0-000 |
— | ||
|
17
|
17
12821-86CA1-000
Spring guide
|
12821-86CA1-000 |
— | ||
|
18
|
18
M1421-86CA1-000
Stub
8X125-35-16-21 |
M1421-86CA1-000 |
— | ||
|
19
|
19
M8316-86CA1-000
Nut
8X125 |
M8316-86CA1-000 |
— | ||
|
20
|
20
09160-86CA7-000
Washer
8X22-2.5 |
09160-86CA7-000 |
— |
