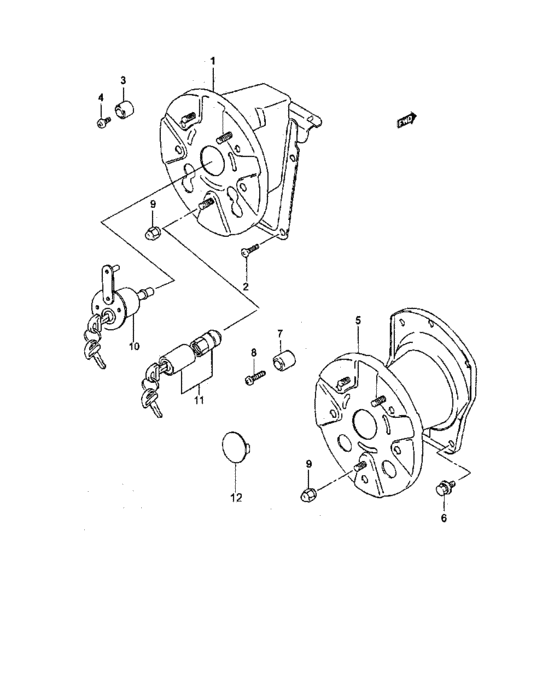

Tire carrier (TIRE CARRIER) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52814-00000-000
Carrier, spare tire
W/STEEL WHEEL |
52814-00000-000 |
— | ||
|
1
|
1
72810-84C20-000
Carrier, spare tire
W/ALUMINIUM WHEEL |
72810-84C20-000 |
— | ||
|
2
|
2
09125-84C00-000
Screw
|
09125-84C00-000 |
— | ||
|
3
|
3
09320-06011-000 CUSHION |
09320-06011-000 |
from US $3.89 |
||
|
4
|
4
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
4
|
4
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.96 |
||
|
4
|
4
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
5
|
5
52813-00000-000
Carrier, spare tire
|
52813-00000-000 |
— | ||
|
5
|
5
72810-84C10-000
Carrier, spare tire
|
72810-84C10-000 |
— | ||
|
6
|
6
01707-10253-000
Bolt, carrier
|
01707-10253-000 |
— | ||
|
7
|
7
09320-B0601-400
Cushion, stopper
|
09320-B0601-400 |
— | ||
|
8
|
8
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
8
|
8
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.96 |
||
|
8
|
8
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
9
|
9
09140-12041-000
Nut
W/STEEL WHEEL |
09140-12041-000 |
— | ||
| replacement | |||||
|
9
|
9
09159-12057-000 NUTW/STEEL WHEEL |
09159-12057-000 |
from US $2.89 |
||
|
9
|
9
09140-12024-000
Nut, spare tire
W/ALUMINIUM WHEEL |
09140-12024-000 |
— | ||
|
10
|
10
51600-00000-000
Antithief, equipment
W/STEEL WHEEL |
51600-00000-000 |
— | ||
|
11
|
11
83901-70AA0-000
KEY ASSY,SPARE TIRE NUT LOCK
W/ALUMINIUM WHEEL |
83901-70AA0-000 |
— | ||
|
12
|
12
83966-85C00-000
Cover, hole antithef
W/LOCK NUT |
83966-85C00-000 |
— | ||
