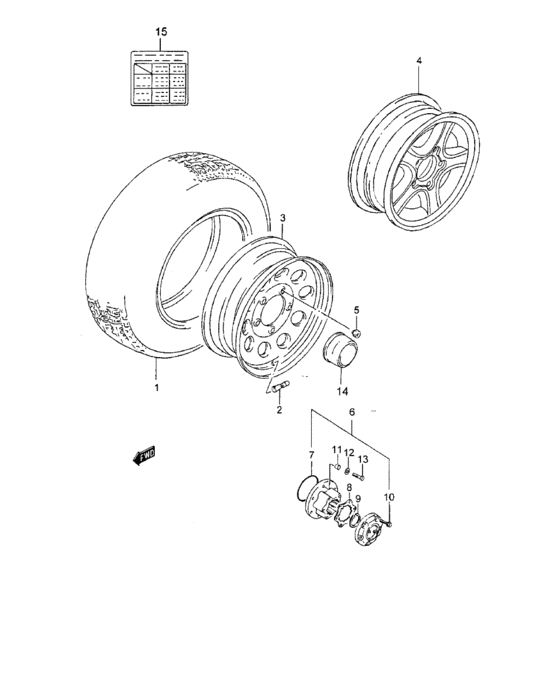

Tire/wheel (TIRE/WHEEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43110-A70A0-000
Tire
MICHELIN |
43110-A70A0-000 |
— | ||
|
1
|
1
43100-B70A0-000
Tire
PIRELLI |
43100-B70A0-000 |
— | ||
|
1
|
1
43110-C70A0-000
Tire
FIRESTONE |
43110-C70A0-000 |
— | ||
|
1
|
1
43110-84C30-000
Tire
DUNLOP |
43110-84C30-000 |
— | ||
|
1
|
1
43110-84C40-000
Tire
BS |
43110-84C40-000 |
— | ||
|
2
|
2
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
from US $4.46 |
||
|
3
|
3
43210-84C00-000
Wheel
|
43210-84C00-000 |
— | ||
|
4
|
4
43210-00020-000
Wheel , aluminium
|
43210-00020-000 |
— | ||
|
5
|
5
09140-12041-000
Nut
|
09140-12041-000 |
— | ||
| replacement | |||||
|
5
|
5
09159-12057-000 NUT |
09159-12057-000 |
from US $2.89 |
||
|
6
|
6
43801-80011-000 HUB SET,LOCKINGW/FREE WHEEL:,France,Switzerland,Belgium,Germany,Portugal,Italy,Spain |
43801-80011-000 |
US $571.52 |
||
|
6
|
6
43810-60A40-000
Hub assy, free wheel
W/FREE WHEEL:Greece |
43810-60A40-000 |
— | ||
| replacement | |||||
|
6
|
6
43800-60812-000 WHEEL LOCKING HUB SET (MANUAL)W/FREE WHEEL:Greece |
43800-60812-000 |
from US $267.46 |
||
|
7
|
7
43838-60A00-000 O-RINGW/FREE WHEEL:,France,Switzerland,Belgium,Germany,Portugal,Italy,Spain |
43838-60A00-000 |
US $10.56 |
||
|
7
|
7
00000-A0087-300
O ring
W/FREE WHEEL:Greece |
00000-A0087-300 |
— | ||
|
8
|
8
43813-60A00-000 GASKET,LOCKING HUB COVERW/FREE WHEEL:,France,Switzerland,Belgium,Germany,Portugal,Italy,Spain |
43813-60A00-000 |
US $2.88 |
||
|
8
|
8
00000-A0087-200
Gasket
W/FREE WHEEL:Greece |
00000-A0087-200 |
— | ||
|
9
|
9
09380-26003-000 CIRCLIPW/FREE WHEEL:,France,Switzerland,Belgium,Germany,Portugal,Italy,Spain |
09380-26003-000 |
US $1.92 |
||
|
10
|
10
01560-06163-000
Bolt
W/FREE WHEEL:,France,Switzerland,Belgium,Germany,Portugal,Italy,Spain |
01560-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
01560-0616A-000 BoltW/FREE WHEEL:,France,Switzerland,Belgium,Germany,Portugal,Italy,Spain |
01560-0616A-000 |
US $0.96 |
||
|
10
|
10
00000-A0087-000
Bolt
W/FREE WHEEL:Greece |
00000-A0087-000 |
— | ||
|
11
|
11
43841-80001-000 WASHER,LOCKING HUB CONEW/FREE WHEEL |
43841-80001-000 |
from US $2.40 |
||
|
12
|
12
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
12
|
12
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.96 |
||
|
13
|
13
01500-08253-000
Bolt
|
01500-08253-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
14
|
14
43252-82A00-000
Center cap, wheel
N/FREE WHEEL |
43252-82A00-000 |
— | ||
|
15
|
15
79161-83301-000
PLACARD,TIRE INFORMATION
|
79161-83301-000 |
— | ||
