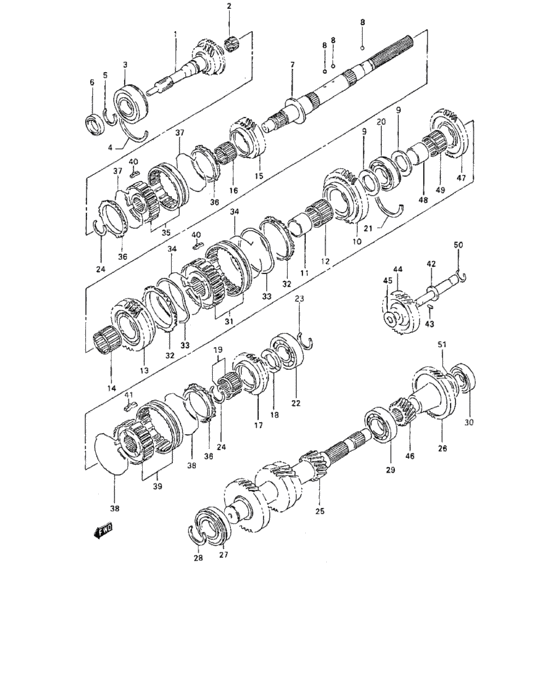

Transmission (TRANSMISSION) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-A8300-100
Shaft, input
|
24110-A8300-100 |
— | ||
|
2
|
2
21915-85C00-000
Bearing
|
21915-85C00-000 |
— | ||
|
3
|
3
21911-85C00-000
Bearing
|
21911-85C00-000 |
— | ||
|
4
|
4
21933-85C80-000
C ring
|
21933-85C80-000 |
— | ||
|
5
|
5
21933-85C30-000
Ring, snap
|
21933-85C30-000 |
— | ||
|
6
|
6
09283-25088-000 SEAL,OIL(25X38X6) |
09283-25088-000 |
from US $5.99 |
||
|
7
|
7
24121-83002-000 SHAFT,T/M MAIN |
24121-83002-000 |
from US $123.57 |
||
|
8
|
8
06111-06003-000 BALL |
06111-06003-000 |
from US $0.76 |
||
|
9
|
9
09166-30007-000 WASHER |
09166-30007-000 |
from US $5.02 |
||
|
10
|
10
24210-85C00-000
Gear, mainshaft low
|
24210-85C00-000 |
— | ||
|
11
|
11
09300-30003-000 BUSH(30X35X27.1) |
09300-30003-000 |
from US $7.47 |
||
|
12
|
12
21915-85C40-000
Bearing
|
21915-85C40-000 |
— | ||
|
13
|
13
24220-85C00-000
Gear, mainshaft 2nd
|
24220-85C00-000 |
— | ||
|
14
|
14
21915-85C40-000
Bearing
|
21915-85C40-000 |
— | ||
|
15
|
15
24230-A81A2-000
Gear, mainshaft 3rd
|
24230-A81A2-000 |
— | ||
|
16
|
16
21915-85C30-000
Bearing
|
21915-85C30-000 |
— | ||
|
17
|
17
24250-84C10-000
Gear, main shaft 5th
|
24250-84C10-000 |
— | ||
|
18
|
18
24255-60A00-000 WASHER,MAIN SFT 5TH GR |
24255-60A00-000 |
from US $5.20 |
||
|
19
|
19
09263-35028-000 ROLLER BEARING |
09263-35028-000 |
US $19.04 |
||
| replacement | |||||
|
19
|
19
24801-60820-000 BEARING SET |
24801-60820-000 |
from US $19.04 |
||
|
20
|
20
09262-30085-000
Bearing
|
09262-30085-000 |
— | ||
| replacement | |||||
|
20
|
20
09262-30086-000 BEARING(30X62X16) |
09262-30086-000 |
from US $24.32 |
||
|
21
|
21
09390-62010-000 C RING |
09390-62010-000 |
from US $1.33 |
||
|
22
|
22
08113-63050-000
Bearing
|
08113-63050-000 |
— | ||
| replacement | |||||
|
22
|
22
09262-25073-000 BEARING(25X62X17)Bearing (25x62x17) |
09262-25073-000 |
from US $14.59 |
||
|
23
|
23
21933-85C10-000
Ring, snap
|
21933-85C10-000 |
— | ||
|
24
|
24
21933-85C30-000
Ring, snap
|
21933-85C30-000 |
— | ||
|
25
|
25
24131-83002-000 SHAFT,T/M COUNTER |
24131-83002-000 |
from US $203.27 |
||
|
26
|
26
24351-85C00-000
Gear, counter shaft 5th
|
24351-85C00-000 |
— | ||
|
27
|
27
21911-85C10-000
Bearing
|
21911-85C10-000 |
— | ||
|
28
|
28
21933-85C30-000
Ring, snap
|
21933-85C30-000 |
— | ||
|
29
|
29
09262-28020-000 BEARING(28X58X16) |
09262-28020-000 |
from US $19.76 |
||
|
30
|
30
08113-63040-000
Bearing
|
08113-63040-000 |
— | ||
| replacement | |||||
|
30
|
30
09262-20073-000 BEARING(20X52X15)Bearing (20x52x15) |
09262-20073-000 |
from US $12.31 |
||
|
31
|
31
24400-83000-000
HUB SET LOW SPEED
|
24400-83000-000 |
— | ||
| replacement | |||||
|
31
|
31
24400-83002-000 HUB ASSY,LOW SPEED SYNC |
24400-83002-000 |
from US $122.65 |
||
|
32
|
32
24431-85C00-000
Ring, low speed sync
|
24431-85C00-000 |
— | ||
|
33
|
33
24436-83000-000 SPRING,SYNC RING LOW |
24436-83000-000 |
from US $3.92 |
||
|
34
|
34
09388-00017-000 SPRING |
09388-00017-000 |
from US $2.23 |
||
|
35
|
35
24410-83000-000
HUB ASSY HIGH SPEED
|
24410-83000-000 |
— | ||
| replacement | |||||
|
35
|
35
24410-83002-000 HUB ASSY,HIGH SPEED SYNC |
24410-83002-000 |
from US $84.65 |
||
|
36
|
36
24432-83001-000 RING,HIGH SPEED SYNC |
24432-83001-000 |
from US $44.87 |
||
|
37
|
37
09388-00019-000 SPRING |
09388-00019-000 |
from US $2.24 |
||
|
38
|
38
09388-00019-000 SPRING |
09388-00019-000 |
from US $2.24 |
||
|
39
|
39
24420-83000-000 HUB SET 5TH REV |
24420-83000-000 |
US $94.39 |
||
| replacement | |||||
|
39
|
39
24420-81A23-000 HUB ASSY,5TH&REV |
24420-81A23-000 |
from US $94.39 |
||
|
40
|
40
24471-60A00-000 KEY,SYNC |
24471-60A00-000 |
from US $1.73 |
||
|
41
|
41
24473-70D10-000 KEY,SYNC |
24473-70D10-000 |
from US $1.92 |
||
|
42
|
42
24551-83000-000 Axe tendeur marche arriere |
24551-83000-000 |
US $30.47 |
||
| replacements | |||||
|
42
|
42
24551-83010-000 SHAFT,T/M REVERSE GEAR |
24551-83010-000 |
from US $30.47 |
||
|
42
|
42
09380-17008-000 CIRCLIP |
09380-17008-000 |
from US $0.86 |
||
|
43
|
43
09261-06003-000 PIN(6X10)Pin, drive shadft, r |
09261-06003-000 |
from US $0.97 |
||
|
44
|
44
24560-A8300-100
Engrenage n.a. tendeu
|
24560-A8300-100 |
— | ||
|
45
|
45
09166-16014-000 WASHER |
09166-16014-000 |
from US $0.99 |
||
|
46
|
46
24671-83000-000 GEAR,CTSHFT REV |
24671-83000-000 |
from US $27.09 |
||
|
47
|
47
24681-83000-000 GEAR MAIN SHAFT |
24681-83000-000 |
US $50.45 |
||
| replacement | |||||
|
47
|
47
24681-81A41-000 GEAR, MAIN SHAFT REVERSE |
24681-81A41-000 |
US $50.45 |
||
|
48
|
48
09300-30003-000 BUSH(30X35X27.1) |
09300-30003-000 |
from US $7.47 |
||
|
49
|
49
21915-85C20-KIT
Bearing set
|
21915-85C20-KIT |
— | ||
|
50
|
50
09380-17008-000 CIRCLIP |
09380-17008-000 |
from US $0.86 |
||
|
51
|
51
09164-20008-000 WASHER |
09164-20008-000 |
from US $1.52 |
||
