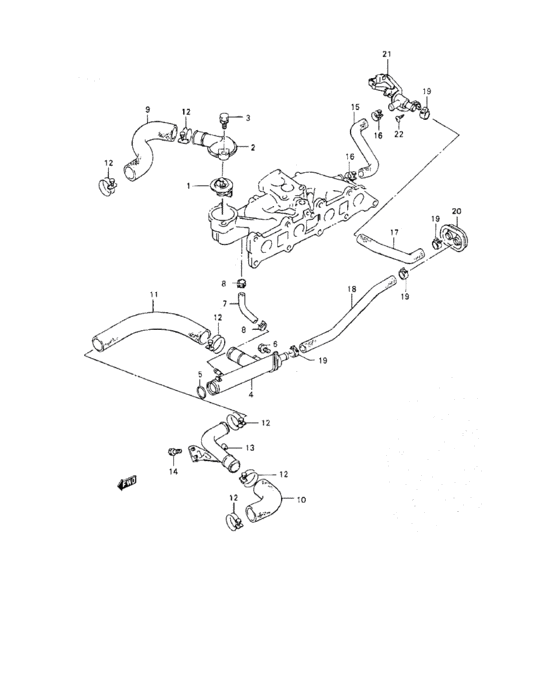

Water hose (GASOLINE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17670-85C00-000
Thermostat, water
82?C |
17670-85C00-000 |
— | ||
|
2
|
2
17561-73000-000 CAP,WATER THERMOSTAT |
17561-73000-000 |
from US $11.10 |
||
|
3
|
3
09103-08341-000 BOLT(8X30)8X30 |
09103-08341-000 |
from US $3.24 |
||
|
4
|
4
17550-84C00-000
Pipe, water inlet
|
17550-84C00-000 |
— | ||
|
5
|
5
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
from US $1.44 |
||
|
6
|
6
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
17859-85C00-000
Hose, water bypass
|
17859-85C00-000 |
— | ||
|
8
|
8
11195-85C00-000
Clamp
|
11195-85C00-000 |
— | ||
|
9
|
9
17841-83001-000
Hose, radiator inlet
|
17841-83001-000 |
— | ||
|
10
|
10
17851-85C00-000
Hose, radiator outlet no. 1
|
17851-85C00-000 |
— | ||
|
11
|
11
17852-83000-000 HOSE,RADIATOR OUTLET NO.2 |
17852-83000-000 |
from US $22.55 |
||
|
12
|
12
08005-00000-000
Collier
|
08005-00000-000 |
— | ||
|
13
|
13
17860-B8300-000
Pipe, radiator outlet
|
17860-B8300-000 |
— | ||
|
14
|
14
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
17871-A8301-000
Hose, inlet to valve
|
17871-A8301-000 |
— | ||
|
16
|
16
09401-A2040-200
Clip
|
09401-A2040-200 |
— | ||
|
17
|
17
17872-83010-000
Hose, valve to heater
|
17872-83010-000 |
— | ||
| replacements | |||||
|
17
|
17
17872-83011-000
HOSE,HEATER VALVE TO HEATER
|
17872-83011-000 |
— | ||
|
17
|
17
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.37 |
||
|
18
|
18
17873-A8300-000
Hose, heater to inlet
|
17873-A8300-000 |
— | ||
|
19
|
19
09401-A2040-200
Clip
|
09401-A2040-200 |
— | ||
|
20
|
20
74812-83001-000 GROMMET,HEATER HOSE |
74812-83001-000 |
US $12.32 |
||
|
21
|
21
74710-83020-000
VALVE,WATER
|
74710-83020-000 |
— | ||
|
22
|
22
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
22
|
22
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
