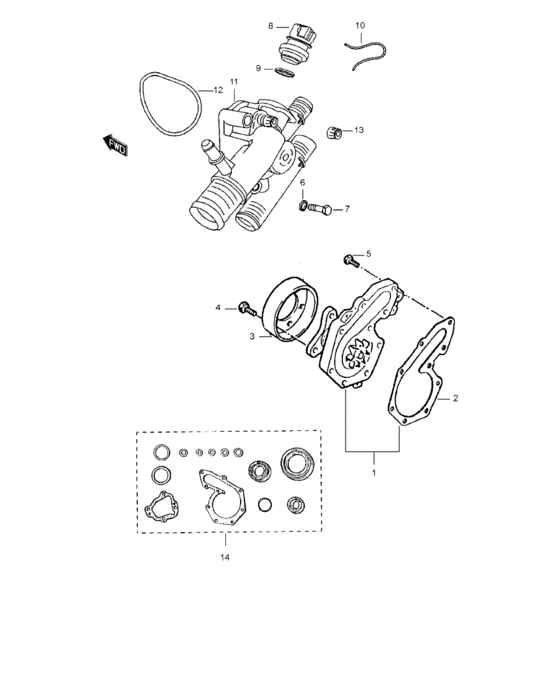

Water pump (DIESEL EURO III) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-84CT0-000
Water pump
|
17400-84CT0-000 |
— | ||
|
2
|
2
17431-84CT0-000
Gasket, Water Pump
|
17431-84CT0-000 |
— | ||
|
3
|
3
17511-84CT0-000
Water pump pulley
|
17511-84CT0-000 |
— | ||
|
4
|
4
09103-84CT1-000
Bolt
8X125-16 |
09103-84CT1-000 |
— | ||
|
5
|
5
11119-84CT1-000
Bolt
|
11119-84CT1-000 |
— | ||
|
6
|
6
09160-84CT0-000
Washer
? 6 |
09160-84CT0-000 |
— | ||
|
7
|
7
09116-84CT0-000
Bolt
6X100-40 |
09116-84CT0-000 |
— | ||
|
8
|
8
13650-84CT0-000
Watre temp. sensor
|
13650-84CT0-000 |
— | ||
|
9
|
9
11228-84CT2-000
Gasket, water temp. sensor
|
11228-84CT2-000 |
— | ||
|
10
|
10
09385-84CT0-000
Clip, water temp. sensor
|
09385-84CT0-000 |
— | ||
|
11
|
11
17550-84CT0-000
Case, water and thermost.
|
17550-84CT0-000 |
— | ||
|
12
|
12
15167-84CT3-000
Gasket
|
15167-84CT3-000 |
— | ||
|
13
|
13
08351-84CT0-000
Drain plug
|
08351-84CT0-000 |
— | ||
|
14
|
14
11401-84CT0-000
Gasket water pump kit
|
11401-84CT0-000 |
— |
