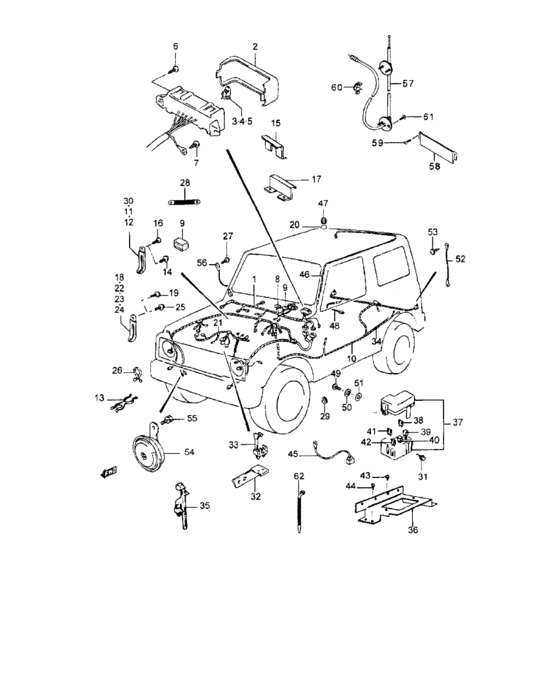

Wiring harness (WIRING HARNESS) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-84CN0-000
Harness assy, wrg no. 1
T. DIESEL |
36610-84CN0-000 |
— | ||
|
1
|
1
36610-84CR1-000
Harness assy, wrg no. 1
T.DIESEL: W/INMOBILIZER |
36610-84CR1-000 |
— | ||
|
1
|
1
36610-84CI0-000
Harness assy, wrg no. 1
GASOLINE |
36610-84CI0-000 |
— | ||
|
1
|
1
36610-84CT0-000
Harness assy, wrg no. 1
DIESEL E. III |
36610-84CT0-000 |
— | ||
|
2
|
2
36717-60A11-000 COVER,FUSE BOX |
36717-60A11-000 |
US $8.83 |
||
|
3
|
3
35155-00000-000
Fuse 10 a
|
35155-00000-000 |
— | ||
|
4
|
4
35156-00000-000
Fuse
|
35156-00000-000 |
— | ||
|
5
|
5
35157-00000-000
Fuse 20 a
|
35157-00000-000 |
— | ||
|
6
|
6
09115-06001-000 Bolt, lhBolt (6x16) |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
6
|
6
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
||
|
7
|
7
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
from US $0.16 |
||
|
8
|
8
33553-52E00-R00
Filter, noise suppressor
|
33553-52E00-R00 |
— | ||
|
9
|
9
35197-00000-000
Diodes box
GASOLINE |
35197-00000-000 |
— | ||
|
10
|
10
36602-84CM0-000
Harness assy, wrg no. 2
LONG: DIESEL |
36602-84CM0-000 |
— | ||
|
10
|
10
36602-84C60-000
Harness assy, wrg no. 2
LONG: GASOLINE |
36602-84C60-000 |
— | ||
|
10
|
10
36602-84CN0-000
Harness assy, wrg no. 2
SHORT: DIESEL |
36602-84CN0-000 |
— | ||
|
10
|
10
36602-84C40-000
Harness assy, wrg no. 2
SHORT: GASOLINE |
36602-84C40-000 |
— | ||
|
10
|
10
36602-84CR0-000
Harness assy, wrg no. 2
LONG: T. DIESEL: W/INMOBILIZER |
36602-84CR0-000 |
— | ||
|
10
|
10
36602-84CS0-000
Harness assy, wrg no. 2
SHORT: T. DIESEL: W/INMOBILIZER |
36602-84CS0-000 |
— | ||
|
10
|
10
36602-84CB0-000
Harness assy, wrg no. 2
LONG: DIESEL E. III |
36602-84CB0-000 |
— | ||
|
10
|
10
36602-84CA0-000
Harness assy, wrg no. 2
SHORT: DIESEL E. III |
36602-84CA0-000 |
— | ||
|
11
|
11
09407-05403-000 CLAMP,L:88DIESEL |
09407-05403-000 |
from US $0.91 |
||
|
11
|
11
24759-A7813-000
Clamp, harness no. 1
LONG: GASOLINE |
24759-A7813-000 |
— | ||
|
11
|
11
36990-85C20-000
Clamp, harness no. 1
SHORT: GASOLINE |
36990-85C20-000 |
— | ||
|
12
|
12
09407-12404-000 CLAMP(L:140)DIESEL |
09407-12404-000 |
from US $1.33 |
||
|
12
|
12
24759-A7813-000
Clamp, harness no. 1
GASOLINE |
24759-A7813-000 |
— | ||
|
13
|
13
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) DIESEL |
09408-00012-000 |
from US $3.37 |
||
|
14
|
14
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
from US $0.16 |
||
|
15
|
15
35159-00000-000
Upper bracket, fuse box
|
35159-00000-000 |
— | ||
|
16
|
16
01550-06123-000
Bolt
GASOLINE |
01550-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0612B-000 BoltBolt, clamp GASOLINE |
01550-0612B-000 |
from US $0.76 |
||
|
16
|
16
01550-0612A-000 BoltGASOLINE |
01550-0612A-000 |
from US $0.76 |
||
|
17
|
17
35158-00000-000
Lower bracket, fuse box
|
35158-00000-000 |
— | ||
|
18
|
18
24759-A7813-000
Clamp, harness no. 1
T. DIESEL |
24759-A7813-000 |
— | ||
|
18
|
18
36990-85C20-000
Clamp, harness no. 1
GASOLINE |
36990-85C20-000 |
— | ||
|
19
|
19
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
19
|
19
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
20
|
20
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
from US $6.72 |
||
|
21
|
21
36650-84CC1-000
Harness assy, wrg. engine
T. DIESEL |
36650-84CC1-000 |
— | ||
|
21
|
21
36650-80C50-000
Harness assy, wrg. engine
GASOLINE |
36650-80C50-000 |
— | ||
|
21
|
21
36650-84CE0-000
Harness assy, wrg. engine
DIESEL E. III |
36650-84CE0-000 |
— | ||
|
22
|
22
09407-12404-000 CLAMP(L:140)DIESEL |
09407-12404-000 |
from US $1.33 |
||
|
22
|
22
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire GASOLINE |
09404-06429-000 |
from US $1.52 |
||
|
23
|
23
36990-85C01-000
Clamp
DIESEL |
36990-85C01-000 |
— | ||
|
23
|
23
09404-A0641-900
Clamp, engine harness
GASOLINE |
09404-A0641-900 |
— | ||
|
24
|
24
09408-00024-000 CLIP(ID:23)Clip, ptt sw terminal DIESEL |
09408-00024-000 |
from US $2.40 |
||
|
24
|
24
36990-85C30-000
Clamp, engine harness
LONG: GASOLINE |
36990-85C30-000 |
— | ||
|
25
|
25
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
25
|
25
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
26
|
26
09408-00024-000 CLIP(ID:23)Clip, ptt sw terminal |
09408-00024-000 |
from US $2.40 |
||
|
27
|
27
09139-05028-000 SCREW(5X14) |
09139-05028-000 |
from US $0.79 |
||
|
28
|
28
35174-84C00-000
Wire comp, gnd
DIESEL |
35174-84C00-000 |
— | ||
|
29
|
29
35070-00000-000
Rondelle calbe
JHT |
35070-00000-000 |
— | ||
|
30
|
30
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
31
|
31
09138-06040-000 BOLT(6X10)DIESEL |
09138-06040-000 |
US $1.52 |
||
|
32
|
32
36625-83000-000 BRACKET,HARN&CABLE |
36625-83000-000 |
from US $0.27 |
||
|
33
|
33
09403-16306-000
CLAMP
|
09403-16306-000 |
— | ||
|
34
|
34
35316-00000-000
Wire comp, back door
JHT: SHORT |
35316-00000-000 |
— | ||
|
34
|
34
35328-00000-000
Wire comp, back door
JHT: LONG |
35328-00000-000 |
— | ||
|
34
|
34
36845-84C30-000
Wire comp, back door
|
36845-84C30-000 |
— | ||
|
35
|
35
36990-85C01-000
Clamp
DIESEL |
36990-85C01-000 |
— | ||
|
36
|
36
36735-84CA0-000
Bracket comp, fuse box
T. DIESEL |
36735-84CA0-000 |
— | ||
|
36
|
36
36735-84CB0-000
Bracket comp, fuse box
DIESEL E. III |
36735-84CB0-000 |
— | ||
|
37
|
37
36740-77E00-000 BOX ASSY,MAIN FUSEDIESEL |
36740-77E00-000 |
from US $49.19 |
||
|
38
|
38
35156-00000-000
Fuse
DIESEL |
35156-00000-000 |
— | ||
|
39
|
39
09481-50203-000 FUSE(50A)DIESEL |
09481-50203-000 |
from US $3.24 |
||
|
40
|
40
09481-60202-000 FUSE(60A)DIESEL |
09481-60202-000 |
from US $5.24 |
||
|
41
|
41
09481-80301-000 FUSE(80A)DIESEL |
09481-80301-000 |
from US $8.93 |
||
|
42
|
42
09481-30203-000 FUSE(30A)DIESEL |
09481-30203-000 |
from US $3.51 |
||
|
43
|
43
02112-05123-000
Screw 5x12
T. DIESEL |
02112-05123-000 |
— | ||
| replacement | |||||
|
43
|
43
02112-0512A-000 SCREWT. DIESEL |
02112-0512A-000 |
from US $0.80 |
||
|
43
|
43
02142-06123-000
Screw
DIESEL E. III |
02142-06123-000 |
— | ||
| replacements | |||||
|
43
|
43
02142-0612B-000 SCREWDIESEL E. III |
02142-0612B-000 |
from US $0.76 |
||
|
43
|
43
02142-0612A-000 SCREWDIESEL E. III |
02142-0612A-000 |
from US $0.80 |
||
|
44
|
44
01550-06123-000
Bolt
T. DIESEL |
01550-06123-000 |
— | ||
| replacements | |||||
|
44
|
44
01550-0612B-000 BoltBolt, clamp T. DIESEL |
01550-0612B-000 |
from US $0.76 |
||
|
44
|
44
01550-0612A-000 BoltT. DIESEL |
01550-0612A-000 |
from US $0.76 |
||
|
44
|
44
02142-06123-000
Screw
DIESEL E. III |
02142-06123-000 |
— | ||
| replacements | |||||
|
44
|
44
02142-0612B-000 SCREWDIESEL E. III |
02142-0612B-000 |
from US $0.76 |
||
|
44
|
44
02142-0612A-000 SCREWDIESEL E. III |
02142-0612A-000 |
from US $0.80 |
||
|
45
|
45
39312-60A01-000
ワイヤ,ホーングランド
|
39312-60A01-000 |
— | ||
| replacement | |||||
|
45
|
45
39312-82012-000 WIRE,NOISE SUPPR |
39312-82012-000 |
US $9.76 |
||
|
46
|
46
36890-66700-000
Wire,defogger lead
|
36890-66700-000 |
— | ||
|
47
|
47
09308-05011-000 GROMMET |
09308-05011-000 |
US $9.20 |
||
|
48
|
48
36822-80001-000
REED WIRE,FUEL LEVEL GAUGE
|
36822-80001-000 |
— | ||
|
49
|
49
09128-06059-000
Bolt 6x10
DIESEL |
09128-06059-000 |
— | ||
| replacements | |||||
|
49
|
49
09128-06044-000 SCREW(6X10)Screw, oil level (6x10) DIESEL |
09128-06044-000 |
from US $1.22 |
||
|
49
|
49
09128-06004-000 SCREW(6X10)DIESEL |
09128-06004-000 |
from US $0.18 |
||
|
50
|
50
08321-01063-000
Washer, lock
DIESEL |
08321-01063-000 |
— | ||
| replacement | |||||
|
50
|
50
08321-0106A-000 WASHER,LOCKDIESEL |
08321-0106A-000 |
from US $0.76 |
||
|
51
|
51
09160-84C00-000
Washer
DIESEL |
09160-84C00-000 |
— | ||
|
52
|
52
36821-80000-000 REED WIRE,WINDOW EARTH |
36821-80000-000 |
from US $0.38 |
||
|
53
|
53
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
53
|
53
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
54
|
54
38500-84C01-000
Horn assy
|
38500-84C01-000 |
— | ||
|
55
|
55
01570-08123-000
Bolt
|
01570-08123-000 |
— | ||
| replacement | |||||
|
55
|
55
01570-0812A-000 Bolt |
01570-0812A-000 |
US $14.40 |
||
|
56
|
56
36821-80000-000 REED WIRE,WINDOW EARTH |
36821-80000-000 |
from US $0.38 |
||
|
57
|
57
63524-00000-000
Anntena assy
W/ANTENA |
63524-00000-000 |
— | ||
|
58
|
58
39161-70E01-000 COVER,RADIO HOLE |
39161-70E01-000 |
US $13.23 |
||
|
59
|
59
03141-04123-000
Screw
|
03141-04123-000 |
— | ||
| replacement | |||||
|
59
|
59
03142-0412B-000 SCREW |
03142-0412B-000 |
from US $0.80 |
||
|
60
|
60
34935-80C10-000 CLAMP ANT FEEDERW/ANTENA |
34935-80C10-000 |
US $2.69 |
||
|
61
|
61
03141-04123-000
Screw
W/ANTENA |
03141-04123-000 |
— | ||
| replacement | |||||
|
61
|
61
03142-0412B-000 SCREWW/ANTENA |
03142-0412B-000 |
from US $0.80 |
||
|
62
|
62
00009-00000-000
Clamp,wire electro fan
DIESEL |
00009-00000-000 |
— | ||
|
63
|
63
08321-B3108-300
Washer
|
08321-B3108-300 |
— | ||
|
64
|
64
35412-84C00-000
Wire comp. hmsl
|
35412-84C00-000 |
— | ||
|
65
|
65
36930-85C00-000
Tape, rr deffoger
|
36930-85C00-000 |
— | ||
|
66
|
66
36891-84C00-000
Wire copm. rr df. gnd
|
36891-84C00-000 |
— | ||
|
67
|
67
36890-84C00-000
Wire copm. rr df. plus
NOT ILLUSTRATED |
36890-84C00-000 |
— | ||
|
68
|
68
36845-84CA0-000
Wire comp. back door
GASOLINE: SHORT |
36845-84CA0-000 |
— | ||
|
68
|
68
36845-84CB0-000
Wire comp. back door
GASOLINE: LONG |
36845-84CB0-000 |
— | ||
|
68
|
68
36845-84CC0-000
Wire comp, back door
DIESEL: SHORT |
36845-84CC0-000 |
— | ||
|
68
|
68
36845-84CD0-000
Wire comp, back door
DIESEL: LONG |
36845-84CD0-000 |
— | ||
