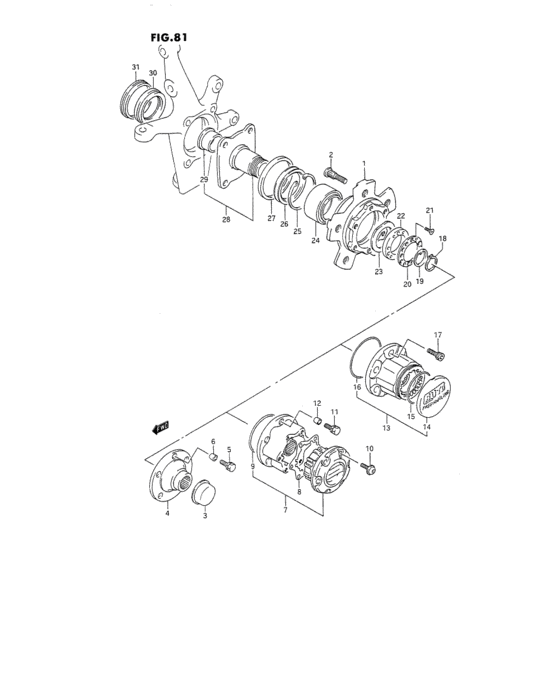

Front wheel hub (FRONT WHEEL HUB) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43420-50820-000 HUB SET,FR WHL |
43420-50820-000 |
US $267.52 |
||
|
2
|
2
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
from US $0.99 |
||
|
3
|
3
43241-80001-000 CAP,FR AXLEN/FREE WHEEL |
43241-80001-000 |
US $16.80 |
||
|
4
|
4
43471-60A00-000
フランジ,フロントアクスルシャフトドライブ
N/FREE WHEEL |
43471-60A00-000 |
— | ||
| replacements | |||||
|
4
|
4
43471-80001-000 FLANGE,FR AXLE SHAFT DRIVEN/FREE WHEEL |
43471-80001-000 |
from US $56.84 |
||
|
4
|
4
43811-65D00-000 BOLT,DRIVE FLANGEN/FREE WHEEL |
43811-65D00-000 |
from US $2.72 |
||
|
5
|
5
01570-08253-000
Bolt, upper
|
01570-08253-000 |
— | ||
| replacements | |||||
|
5
|
5
01570-0825B-000 BOLT |
01570-0825B-000 |
US $1.12 |
||
|
5
|
5
01570-0825A-000 BOLT |
01570-0825A-000 |
from US $1.06 |
||
|
6
|
6
43841-80001-000 WASHER,LOCKING HUB CONE |
43841-80001-000 |
US $2.40 |
||
|
7
|
7
43800-60811-000
ロッキングハブセット,マニュアル
MANUAL FREE WHEEL,<-43801-60A00 |
43800-60811-000 |
— | ||
| replacement | |||||
|
7
|
7
43800-60812-000 WHEEL LOCKING HUB SET (MANUAL)MANUAL FREE WHEEL,<-43801-60A00 |
43800-60812-000 |
US $516.80 |
||
|
8
|
8
43813-60A00-000 GASKET,LOCKING HUB COVER |
43813-60A00-000 |
US $2.88 |
||
|
9
|
9
43838-60A00-000 O-RING |
43838-60A00-000 |
US $8.64 |
||
|
10
|
10
43814-60A01-000 BOLT,LOCKING HUB COVER |
43814-60A01-000 |
US $2.29 |
||
|
11
|
11
01570-08253-000
Bolt, upper
|
01570-08253-000 |
— | ||
| replacements | |||||
|
11
|
11
01570-0825B-000 BOLT |
01570-0825B-000 |
US $1.12 |
||
|
11
|
11
01570-0825A-000 BOLT |
01570-0825A-000 |
from US $1.06 |
||
|
12
|
12
43841-80001-000 WASHER,LOCKING HUB CONE |
43841-80001-000 |
US $2.40 |
||
|
13
|
13
43810-60A10-000 HUB ASSY,AUTO FREE WHLAUTO FREE WHEEL |
43810-60A10-000 |
US $763.84 |
||
| replacement | |||||
|
13
|
13
43810-60A20-000
HUB ASSY,AUTO FREE WHL
AUTO FREE WHEEL |
43810-60A20-000 |
— | ||
|
14
|
14
43814-60A10-000 COVER,AUTO FREE WHEEL HUB |
43814-60A10-000 |
US $105.25 |
||
|
15
|
15
43815-83000-000 O-RING,AUTO FREE WHL COVER |
43815-83000-000 |
US $6.11 |
||
|
16
|
16
43838-83000-000 O-RING,AUTO FREE WHL HUB BODY |
43838-83000-000 |
US $8.98 |
||
|
17
|
17
43811-60A10-000
Bolt,auto free wheel hub
|
43811-60A10-000 |
— | ||
| replacement | |||||
|
17
|
17
43811-60A1V-000 BOLT,AUTO FREE WHEEL HUB |
43811-60A1V-000 |
US $3.53 |
||
|
18
|
18
09380-26004-000 CIRCLIP |
09380-26004-000 |
from US $1.67 |
||
| replacement | |||||
|
18
|
18
94412-31J01-YMC Cowling,body Lower |
94412-31J01-YMC |
US $172.48 |
||
|
19
|
19
44182-60A01-000 WASHER,FR SPINDLE THRUST |
44182-60A01-000 |
US $2.56 |
||
|
20
|
20
43466-60A00-000 WASHER,FR WHEEL BRG LOCK |
43466-60A00-000 |
from US $10.69 |
||
|
21
|
21
02122-04083-000
スクリュ
|
02122-04083-000 |
— | ||
| replacement | |||||
|
21
|
21
02122-0408A-000 SCREW |
02122-0408A-000 |
from US $0.76 |
||
|
22
|
22
43461-60A01-000 NUT,FR WHL BRG LOCK |
43461-60A01-000 |
from US $30.04 |
||
|
23
|
23
43465-60A00-000 WASHER,FR WHEEL BRG |
43465-60A00-000 |
from US $1.35 |
||
|
24
|
24
09269-41001-000 BEARING(41X68X40) |
09269-41001-000 |
from US $108.50 |
||
|
25
|
25
09381-68001-000 CIRCLIP<-43486-60A10 |
09381-68001-000 |
from US $2.72 |
||
|
26
|
26
09283-54001-000 SEAL,OIL(54X69X7) |
09283-54001-000 |
from US $7.18 |
||
|
27
|
27
09286-75001-000 SEAL,OIL(75X83X4) |
09286-75001-000 |
from US $10.91 |
||
|
28
|
28
43440-60A03-000
SPINDLE,FR WHEEL
|
43440-60A03-000 |
— | ||
|
29
|
29
43445-60A11-000 BUSHING,FR SPINDLE<-43445-60A10 |
43445-60A11-000 |
from US $10.82 |
||
|
30
|
30
09289-48004-000 SEAL,OIL(48X70X17) |
09289-48004-000 |
from US $11.66 |
||
|
31
|
31
09286-64001-000 SEAL,OIL(64X76X7) |
09286-64001-000 |
from US $9.74 |
||
