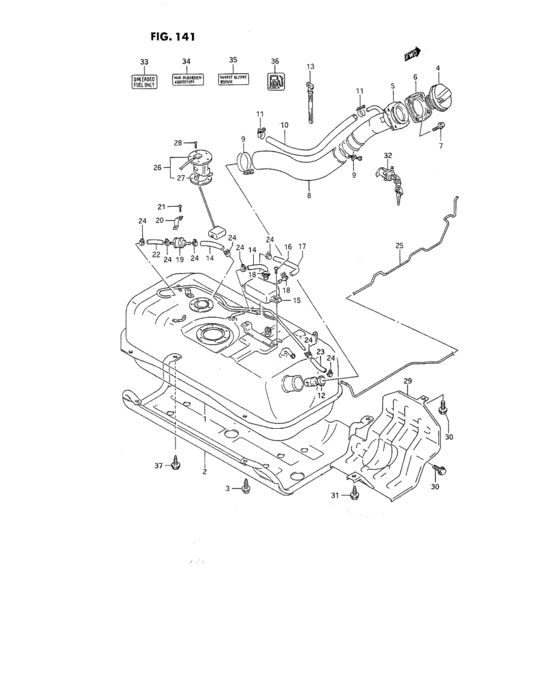

Fuel tank (FUEL TANK) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-57B12-000 TANK ASSY,FUEL |
89101-57B12-000 |
US $839.04 |
||
|
2
|
2
89320-56B00-000 PROTECTOR,FUEL TANK |
89320-56B00-000 |
US $193.20 |
||
|
3
|
3
01580-10253-000
ボルト
|
01580-10253-000 |
— | ||
| replacement | |||||
|
3
|
3
01580-1025A-000 Bolt |
01580-1025A-000 |
US $19.50 |
||
|
3
|
3
09118-10068-000
Bolt
TD01V-103133~,JSAETD01V00125534~ |
09118-10068-000 |
— | ||
|
3
|
3
09118-10052-000 BOLT(10X30)TD01V-150398~,JSAETD01V00134194~ |
09118-10052-000 |
from US $1.44 |
||
|
4
|
4
89260-85502-000
Cap assy, fuel tiller
|
89260-85502-000 |
— | ||
| replacement | |||||
|
4
|
4
89260-50J00-000 CAP ASSY,FUEL FILLER |
89260-50J00-000 |
US $15.89 |
||
|
4
|
4
89260-65AB0-000
Cap assy, filler
Thailand,Philippines |
89260-65AB0-000 |
— | ||
| replacement | |||||
|
4
|
4
89260-50J00-000 CAP ASSY,FUEL FILLERThailand,Philippines |
89260-50J00-000 |
US $15.89 |
||
|
5
|
5
89201-60A01-000
ネックアッシ,フューエルフィラ
|
89201-60A01-000 |
— | ||
| replacement | |||||
|
5
|
5
89201-60A03-000 NECK ASSY,FUEL FILLER |
89201-60A03-000 |
US $106.35 |
||
|
5
|
5
89201-60A11-000
Neck assy, fuel filler
,,Thailand,Finland,Norway,Sweden,Switzerland,,Belgium,2,5,6,Italy,Hong Kong,Austria,,Czech Republic,Iceland |
89201-60A11-000 |
— | ||
| replacement | |||||
|
5
|
5
89201-60A13-000
NECK ASSY,FUEL FILLER
,,Thailand,Finland,Norway,Sweden,Switzerland,,Belgium,2,5,6,Italy,Hong Kong,Austria,,Czech Republic,Iceland |
89201-60A13-000 |
— | ||
|
6
|
6
89285-82000-000
パッキング,フューエルフィラ
|
89285-82000-000 |
— | ||
| replacement | |||||
|
6
|
6
89285-75F00-000 PACKING,FUEL FILLER |
89285-75F00-000 |
US $5.17 |
||
|
7
|
7
09116-05014-000 BOLT(5X20) |
09116-05014-000 |
US $1.82 |
||
|
8
|
8
89241-56B00-000 HOSE,FUEL TANK FILLER |
89241-56B00-000 |
US $42.32 |
||
|
8
|
8
89241-56B20-000
HOSE,FUEL TANK FILLER
Brazil |
89241-56B20-000 |
— | ||
|
8
|
8
89241-56B10-000
Hose, fuel filler
Saudi Arabia |
89241-56B10-000 |
— | ||
| replacement | |||||
|
8
|
8
89241-56B20-000
HOSE,FUEL TANK FILLER
Saudi Arabia |
89241-56B20-000 |
— | ||
|
9
|
9
09400-52312-000 CLAMP |
09400-52312-000 |
US $20.20 |
||
|
9
|
9
09402-57511-000 CLAMPBrazil,Saudi Arabia |
09402-57511-000 |
from US $6.24 |
||
|
10
|
10
09355-13207-600 HOSE(13X20X600)Hose, breather TYPE 2,L:600->560 |
09355-13207-600 |
US $12.46 |
||
|
10
|
10
89291-56B00-000
ホース,フューエルタンクブリーザ
TYPE 3 |
89291-56B00-000 |
— | ||
| replacement | |||||
|
10
|
10
11191-79200-000 HOSE,BREATHERTYPE 3 |
11191-79200-000 |
US $32 |
||
|
10
|
10
89291-56B11-000
Hose, tank breather
Saudi Arabia:TD01V-100133~ |
89291-56B11-000 |
— | ||
| replacement | |||||
|
10
|
10
89291-56B20-000
HOSE,FUEL TANK BREATHER
Saudi Arabia:TD01V-100133~ |
89291-56B20-000 |
— | ||
|
11
|
11
09400-22312-000 CLAMP |
09400-22312-000 |
from US $1.82 |
||
|
11
|
11
09402-22501-000
Clamp
Saudi Arabia |
09402-22501-000 |
— | ||
| replacement | |||||
|
11
|
11
09402-22511-000 CLAMPSaudi Arabia |
09402-22511-000 |
from US $9.26 |
||
|
12
|
12
89280-60A01-000 VALVE,FUEL TANK INLET |
89280-60A01-000 |
US $18.24 |
||
|
13
|
13
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
14
|
14
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->135 |
09355-54115-600 |
from US $6.59 |
||
|
15
|
15
89411-60A01-000
SEPARATOR,FUEL AND VAPOR
|
89411-60A01-000 |
— | ||
|
16
|
16
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.80 |
||
|
17
|
17
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->125 |
09355-54115-600 |
from US $6.59 |
||
|
18
|
18
09401-11412-000 CLIP |
09401-11412-000 |
US $28.30 |
||
|
19
|
19
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
20
|
20
89485-60A00-000
クランプ,チェックバルブ
|
89485-60A00-000 |
— | ||
| replacement | |||||
|
20
|
20
89485-82000-000 CLAMP,CHECK VALVE |
89485-82000-000 |
US $1.73 |
||
|
21
|
21
02112-05083-000
Screw
|
02112-05083-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
|
22
|
22
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->100 |
09355-54115-600 |
from US $6.59 |
||
|
23
|
23
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->135 |
09355-54115-600 |
from US $6.59 |
||
|
24
|
24
09401-11413-000 CLIP |
09401-11413-000 |
from US $0.96 |
||
|
25
|
25
89430-56B00-000 PIPE,EVAPORATION MAIN |
89430-56B00-000 |
US $50.42 |
||
|
26
|
26
34810-60A11-000 GAUGE ASSY,FUEL LEVELLHD,<-34810-60A01 |
34810-60A11-000 |
from US $60.05 |
||
|
27
|
27
34825-67012-000 GASKETLHD |
34825-67012-000 |
US $1.60 |
||
|
27
|
27
34825-67020-000 GASKETRHD |
34825-67020-000 |
US $4.80 |
||
|
28
|
28
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
29
|
29
89310-56B00-000 PROTECTOR,FUEL FILLER HOSE |
89310-56B00-000 |
US $53.36 |
||
|
29
|
29
89310-56B10-000
PROTECTOR,FILLER HOSE
,,Thailand,Finland,Norway,Sweden,Switzerland,,Belgium,1,2,5,6,Sinagpore,Italy,,Hong Kong,Austria,5,Barbados,Iceland |
89310-56B10-000 |
— | ||
|
30
|
30
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
30
|
30
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
31
|
31
09132-06008-000 SCREW(6X12) |
09132-06008-000 |
US $12.90 |
||
|
32
|
32
89300-60802-000 CYLINDER,FUEL LID LOCKCylinder, fuel lid lock |
89300-60802-000 |
US $76.80 |
||
|
33
|
33
86932-73060-000 LABEL,FUEL CAUTIONLabel, fuel caution ,Switzerland,Belgium,5,Italy,Hong Kong,Iceland |
86932-73060-000 |
US $1.52 |
||
|
34
|
34
79115-83000-000
Emblem, fuel caution
Germany,Austria,Czech Republic |
79115-83000-000 |
— | ||
|
35
|
35
79115-83011-000
Label, fuel caution
Finland,Norway,Sweden,Denmark |
79115-83011-000 |
— | ||
|
36
|
36
11959-64B10-000
Label, fuel caution
EC |
11959-64B10-000 |
— | ||
|
37
|
37
01580-10253-000
ボルト
|
01580-10253-000 |
— | ||
| replacement | |||||
|
37
|
37
01580-1025A-000 Bolt |
01580-1025A-000 |
US $19.50 |
||
