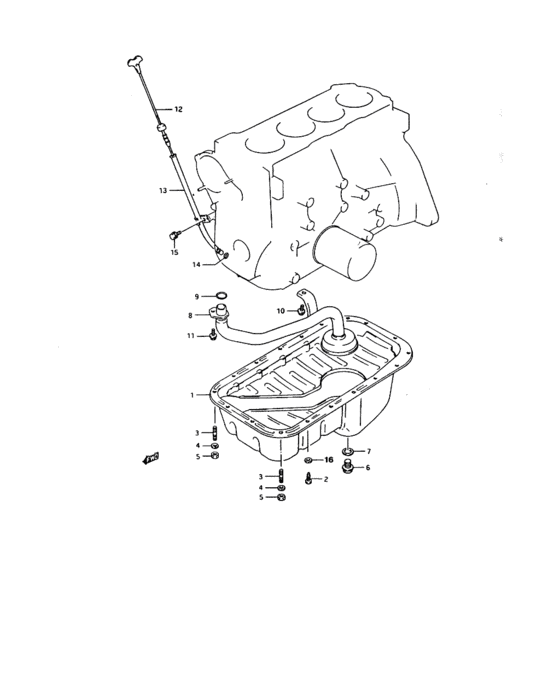

Oil case assy (OIL CASE ASSY) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-60A00-000
パン,オイル
H MOTOR 3975 |
11510-60A00-000 |
— | ||
| replacement | |||||
|
1
|
1
11510-60A01-000 PAN,OILH MOTOR 3975 |
11510-60A01-000 |
US $92.43 |
||
|
1
|
1
11510-60A01-000 PAN,OILD MOTOR 3976 |
11510-60A01-000 |
US $92.43 |
||
|
2
|
2
09100-A0611-600
Screw
|
09100-A0611-600 |
— | ||
|
3
|
3
01411-06123-000
Bolt, stud
|
01411-06123-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0612A-000 BOLT,STUD |
01411-0612A-000 |
from US $0.67 |
||
|
4
|
4
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
5
|
5
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
5
|
5
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
5
|
5
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
6
|
6
09247-A1402-700
Drain plug
|
09247-A1402-700 |
— | ||
|
7
|
7
09168-41401-200
Gasket washer
|
09168-41401-200 |
— | ||
|
8
|
8
14510-60A00-000
Suction & filter ass
|
14510-60A00-000 |
— | ||
|
9
|
9
09280-17005-000
Oリング,D:2.4,ID:16.8
|
09280-17005-000 |
— | ||
| replacement | |||||
|
9
|
9
09280-17002-000 O RING(D:2.4,ID:16.8)O ring (d:2.4,id:16.8) |
09280-17002-000 |
from US $2.68 |
||
|
10
|
10
01517-06126-000
Bolt m6x1x12
|
01517-06126-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
07120-06126-000
Bolt
|
07120-06126-000 |
— | ||
| replacement | |||||
|
11
|
11
07120-0612B-000 BoltPlug |
07120-0612B-000 |
from US $0.96 |
||
|
12
|
12
16910-60A00-000
ゲージ,オイルレベル
I 30031 |
16910-60A00-000 |
— | ||
| replacement | |||||
|
12
|
12
16910-60A01-000 GAUGE,OIL LEVELI 30031 |
16910-60A01-000 |
from US $20.95 |
||
|
12
|
12
16910-60A01-000 GAUGE,OIL LEVELD 36032 |
16910-60A01-000 |
from US $20.95 |
||
|
13
|
13
16930-82001-000 GUIDE,OIL LEVEL GAUGE |
16930-82001-000 |
from US $5.11 |
||
|
14
|
14
09280-10015-000 O RING(D:1.9,ID:9.8)O ring, oil gallery |
09280-10015-000 |
from US $1.60 |
||
| replacement | |||||
|
14
|
14
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
|
15
|
15
01537-06102-000
Bolt
|
01537-06102-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-06107-000 Bolt |
01550-06107-000 |
from US $0.80 |
||
|
16
|
16
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
