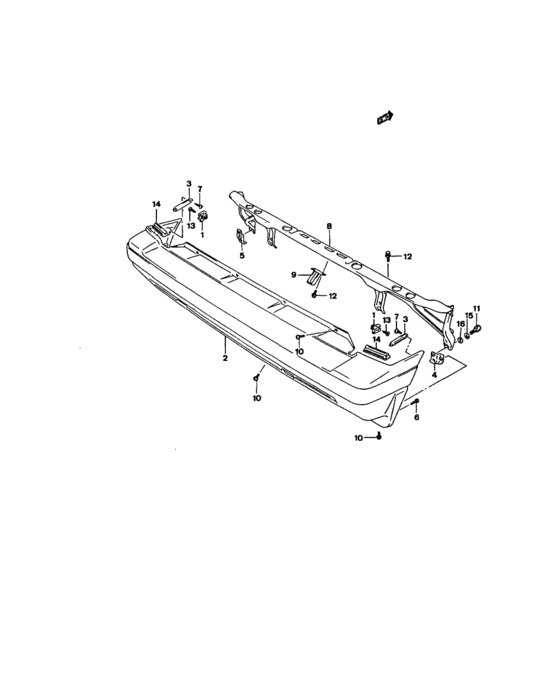

Rear bumper (REAR BUMPER) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71752-86000-000 SUPPORT,BUMPER SIDE |
71752-86000-000 |
from US $1.62 |
||
|
2
|
2
71011-60A10-000
Rear bumper
JX |
71011-60A10-000 |
— | ||
|
2
|
2
71011-60A40-000
Rear bumper
JA |
71011-60A40-000 |
— | ||
|
3
|
3
71751-86000-000 ATTACHMENT,BUMPER SIDE |
71751-86000-000 |
US $3.35 |
||
|
4
|
4
71012-60A10-000
Outer bracket,r/h
|
71012-60A10-000 |
— | ||
|
5
|
5
71013-60A10-000
Outer bracket,l/h
|
71013-60A10-000 |
— | ||
|
6
|
6
09139-06052-000
Screw, plate
|
09139-06052-000 |
— | ||
| replacement | |||||
|
6
|
6
09122-66007-000 SCREW(6X14) |
09122-66007-000 |
from US $0.80 |
||
|
7
|
7
03241-04123-000
Screw
|
03241-04123-000 |
— | ||
| replacement | |||||
|
7
|
7
03242-0412B-000 SCREW |
03242-0412B-000 |
from US $0.84 |
||
|
8
|
8
71820-60A10-000 MEMBER,RR BUMPER |
71820-60A10-000 |
US $157.37 |
||
|
9
|
9
71850-60A10-000 STAY,REAR BUMPER LOWER CTR |
71850-60A10-000 |
US $6.73 |
||
|
10
|
10
09139-06052-000
Screw, plate
|
09139-06052-000 |
— | ||
| replacement | |||||
|
10
|
10
09122-66007-000 SCREW(6X14) |
09122-66007-000 |
from US $0.80 |
||
|
11
|
11
03141-04105-000
New Genuine Part
|
03141-04105-000 |
— | ||
| replacement | |||||
|
11
|
11
03141-0410A-000 SCREW |
03141-0410A-000 |
US $0.80 |
||
|
12
|
12
01807-08163-000
Screw
|
01807-08163-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
13
|
13
03511-05123-000
SCREW 5X12
|
03511-05123-000 |
— | ||
| replacement | |||||
|
13
|
13
03511-0512A-000 SCREW |
03511-0512A-000 |
from US $0.96 |
||
|
14
|
14
71815-60A01-000 SPACER,REAR BUMPER SIDE,RTYPE 2,TYPE 3 |
71815-60A01-000 |
from US $4.61 |
||
|
14
|
14
71816-60A01-000 SPACER,REAR BUMPER SIDE,LTYPE 2,TYPE 3 |
71816-60A01-000 |
from US $9.81 |
||
|
15
|
15
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
16
|
16
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
16
|
16
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
