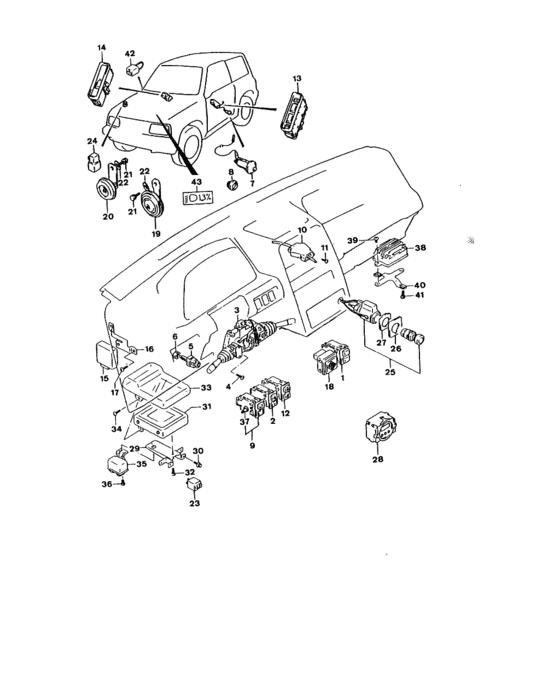

Switches (SWITCHES) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37370-86000-000 SWITCH ASSY,RR WIPER&WASHER |
37370-86000-000 |
US $17.42 |
||
|
2
|
2
37280-86000-000
SWITCH ASSY,RR FOG LAMP
|
37280-86000-000 |
— | ||
|
3
|
3
37400-60A21-000 SWITCH ASSY,COMBUnited Kingdom |
37400-60A21-000 |
US $244.76 |
||
|
4
|
4
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
5
|
5
37740-60A00-000
SWITCH ASSY STOP LAMP
|
37740-60A00-000 |
— | ||
| replacement | |||||
|
5
|
5
37740-60D01-000 SWITCH ASSY,STOP LAMP |
37740-60D01-000 |
from US $28.82 |
||
|
6
|
6
08310-22106-000
Nut
|
08310-22106-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.83 |
||
|
6
|
6
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
7
|
7
37670-60A01-000
SWITCH ASSY DOOR
|
37670-60A01-000 |
— | ||
| replacement | |||||
|
7
|
7
37670-60A02-000 SWITCH ASSY,DOOR |
37670-60A02-000 |
from US $13.84 |
||
|
8
|
8
09250-14008-000 CAP(OD:17.3) |
09250-14008-000 |
from US $1.12 |
||
|
9
|
9
37860-60A00-000 SWITCH ASSY,RR DEFOGGERJX |
37860-60A00-000 |
US $28.84 |
||
|
10
|
10
37870-60A01-000 SWITCH ASSY,HTR FAN MOTOR |
37870-60A01-000 |
US $24.32 |
||
|
11
|
11
03111-04088-000
Cross screw (4x8)
|
03111-04088-000 |
— | ||
| replacement | |||||
|
11
|
11
03112-0408B-000 SCREW |
03112-0408B-000 |
US $0.88 |
||
|
12
|
12
37500-86000-000
Switch assy,back door opener
JX-VEH.'V' |
37500-86000-000 |
— | ||
|
13
|
13
37990-60A00-000 SWITCH ASSY,P/W MAIN |
37990-60A00-000 |
from US $135.45 |
||
|
14
|
14
37995-60A00-000 SWITCH ASSY,P/W SUB |
37995-60A00-000 |
from US $51.46 |
||
|
15
|
15
38700-60A00-000
CONTROLLER ASSY,PWR DR LOCK
|
38700-60A00-000 |
— | ||
|
16
|
16
38663-60A00-000
Bracket, controller
|
38663-60A00-000 |
— | ||
|
17
|
17
02142-06128-000
Bolt
|
02142-06128-000 |
— | ||
| replacement | |||||
|
17
|
17
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
|
18
|
18
37950-60A00-000 SWITCH ASSY,MIRRORJX |
37950-60A00-000 |
US $32.54 |
||
|
19
|
19
38500-A8610-000
Low horn assy.320hz
JA/JX-INY. |
38500-A8610-000 |
— | ||
|
20
|
20
38500-A60A1-000
High horn assy.420hz
JX-INY. |
38500-A60A1-000 |
— | ||
|
21
|
21
01104-08126-000
Vis
|
01104-08126-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-08127-000 Bolt |
01500-08127-000 |
from US $0.76 |
||
|
22
|
22
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
23
|
23
38610-A8400-100
Flasher relay assy
|
38610-A8400-100 |
— | ||
|
24
|
24
38850-60A10-000 RELAY ASSY |
38850-60A10-000 |
US $28.82 |
||
| replacement | |||||
|
24
|
24
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
from US $28.82 |
||
|
25
|
25
39400-A8600-000
Lighter assy
|
39400-A8600-000 |
— | ||
|
26
|
26
39471-60A00-000 RIM,CIGARETTE |
39471-60A00-000 |
US $4.23 |
||
|
27
|
27
39472-82000-000 WASHER,CIGARETTE LIGHTER |
39472-82000-000 |
from US $0.18 |
||
|
28
|
28
34600-A60A1-000
Digital clock assy
|
34600-A60A1-000 |
— | ||
|
29
|
29
38665-60A00-000
BRACKET,RLY&ECU
United Kingdom-INY. |
38665-60A00-000 |
— | ||
|
30
|
30
09128-06043-000
Screw
United Kingdom-INY. |
09128-06043-000 |
— | ||
| replacement | |||||
|
30
|
30
09128-06058-000 SCREW(6X10)United Kingdom-INY. |
09128-06058-000 |
from US $1.28 |
||
|
31
|
31
33920-60A70-000
CONTROLLER ASSY,EPI
|
33920-60A70-000 |
— | ||
|
32
|
32
02142-06128-000
Bolt
INYECCION |
02142-06128-000 |
— | ||
| replacement | |||||
|
32
|
32
02142-06127-000 SCREWINYECCION |
02142-06127-000 |
from US $0.76 |
||
|
33
|
33
33925-60A10-000
Cover, controller
INYECCION |
33925-60A10-000 |
— | ||
|
34
|
34
02142-06128-000
Bolt
INYECCION |
02142-06128-000 |
— | ||
| replacement | |||||
|
34
|
34
02142-06127-000 SCREWINYECCION |
02142-06127-000 |
from US $0.76 |
||
|
35
|
35
31850-60A10-000 RELAY ASSY,EPIINYECCION |
31850-60A10-000 |
US $93.49 |
||
|
36
|
36
02142-06128-000
Bolt
INYECCION |
02142-06128-000 |
— | ||
| replacement | |||||
|
36
|
36
02142-06127-000 SCREWINYECCION |
02142-06127-000 |
from US $0.76 |
||
|
37
|
37
09471-12135-000 BULB(CLEAR)VEH.'V' |
09471-12135-000 |
from US $3.44 |
||
|
38
|
38
38660-82201-000
Controller, dim-dip
United Kingdom |
38660-82201-000 |
— | ||
|
39
|
39
02142-06088-000
Screw 6 x 8
United Kingdom |
02142-06088-000 |
— | ||
| replacement | |||||
|
39
|
39
02142-06087-000 SCREWUnited Kingdom |
02142-06087-000 |
from US $0.77 |
||
|
40
|
40
33947-56B00-000
Bracket, dim-dip controller
United Kingdom,INY. |
33947-56B00-000 |
— | ||
|
40
|
40
38661-60A00-000
Bracket, dim-dip controller
United Kingdom,CARB. |
38661-60A00-000 |
— | ||
|
41
|
41
02142-06166-000
Screw, upper
United Kingdom |
02142-06166-000 |
— | ||
| replacement | |||||
|
41
|
41
02142-0616A-000 SCREWUnited Kingdom |
02142-0616A-000 |
from US $0.76 |
||
|
42
|
42
39615-82000-000
Connector
|
39615-82000-000 |
— | ||
|
43
|
43
35186-70A01-000
LABEL,HEADLAMP INITIAL AIMING
United Kingdom |
35186-70A01-000 |
— | ||
