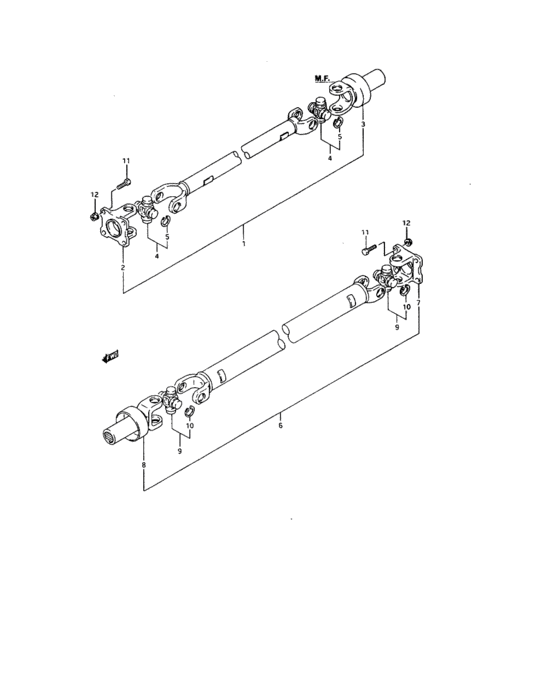

Transmission (TRANSMISSION) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-60A01-000
シャフトアッシ,プロペラ,フロント
ALTERN.,EDYO |
27101-60A01-000 |
— | ||
| replacement | |||||
|
1
|
1
27101-60A02-000 SHAFT ASSY,PROPELLER FRONTALTERN.,EDYO |
27101-60A02-000 |
US $408.32 |
||
|
1
|
1
27101-A60A0-100
Front drive
AYRA |
27101-A60A0-100 |
— | ||
|
2
|
2
27131-60A01-000
YOKE CROSS JOUNT FLANGE
KOYO |
27131-60A01-000 |
— | ||
| replacement | |||||
|
2
|
2
27131-56B00-000 YOKE,CROSS JOINT FLANGEKOYO |
27131-56B00-000 |
from US $47.18 |
||
|
3
|
3
27140-60A00-000 YOKE,SLIDINGKOYO |
27140-60A00-000 |
from US $77.22 |
||
|
4
|
4
27200-60811-000 JOINT UNIVERSALKOYO |
27200-60811-000 |
US $56.36 |
||
| replacements | |||||
|
4
|
4
27200-83812-000
JOINT SET,UNIVERSAL
KOYO |
27200-83812-000 |
— | ||
|
4
|
4
27200-83813-000 Joint Set,universalKOYO |
27200-83813-000 |
from US $56.36 |
||
|
4
|
4
27200-A8300-000
Ensemble crossillon
|
27200-A8300-000 |
— | ||
|
5
|
5
27225-60A00-000
サークリップ,ユニバーサルジョイント
KOYO |
27225-60A00-000 |
— | ||
| replacements | |||||
|
5
|
5
51118-36213-000 RING,SNAPKOYO |
51118-36213-000 |
from US $1.31 |
||
|
5
|
5
08331-41256-000
CIRCLIP
KOYO |
08331-41256-000 |
— | ||
|
6
|
6
27102-60A01-000
SHAFT ASSY PROP REAR
ALTERN.-KOYO |
27102-60A01-000 |
— | ||
| replacement | |||||
|
6
|
6
27102-60A02-000
SHAFT ASSY,PROPELLER REAR
ALTERN.-KOYO |
27102-60A02-000 |
— | ||
|
6
|
6
27102-A60A0-100
Rear drive
AYRA |
27102-A60A0-100 |
— | ||
|
7
|
7
27131-60A01-000
YOKE CROSS JOUNT FLANGE
KOYO |
27131-60A01-000 |
— | ||
| replacement | |||||
|
7
|
7
27131-56B00-000 YOKE,CROSS JOINT FLANGEKOYO |
27131-56B00-000 |
from US $47.18 |
||
|
8
|
8
27140-60A00-000 YOKE,SLIDINGKOYO |
27140-60A00-000 |
from US $77.22 |
||
|
9
|
9
27200-60811-000 JOINT UNIVERSALKOYO |
27200-60811-000 |
US $56.36 |
||
| replacements | |||||
|
9
|
9
27200-83812-000
JOINT SET,UNIVERSAL
KOYO |
27200-83812-000 |
— | ||
|
9
|
9
27200-83813-000 Joint Set,universalKOYO |
27200-83813-000 |
from US $56.36 |
||
|
9
|
9
27200-AB300-000
Spider
|
27200-AB300-000 |
— | ||
|
10
|
10
27225-60A00-000
サークリップ,ユニバーサルジョイント
KOYO |
27225-60A00-000 |
— | ||
| replacements | |||||
|
10
|
10
51118-36213-000 RING,SNAPKOYO |
51118-36213-000 |
from US $1.31 |
||
|
10
|
10
08331-41256-000
CIRCLIP
KOYO |
08331-41256-000 |
— | ||
|
11
|
11
01107-10303-000 BOLT 10X30 |
01107-10303-000 |
from US $1.72 |
||
| replacement | |||||
|
11
|
11
01500-1030A-000 Bolt |
01500-1030A-000 |
from US $0.96 |
||
|
12
|
12
09159-10090-000
ナット
|
09159-10090-000 |
— | ||
| replacement | |||||
|
12
|
12
09159-10091-000 NUT |
09159-10091-000 |
from US $2.09 |
||
|
12
|
12
27300-60A00-000
Front differential assy
|
27300-60A00-000 |
— | ||
