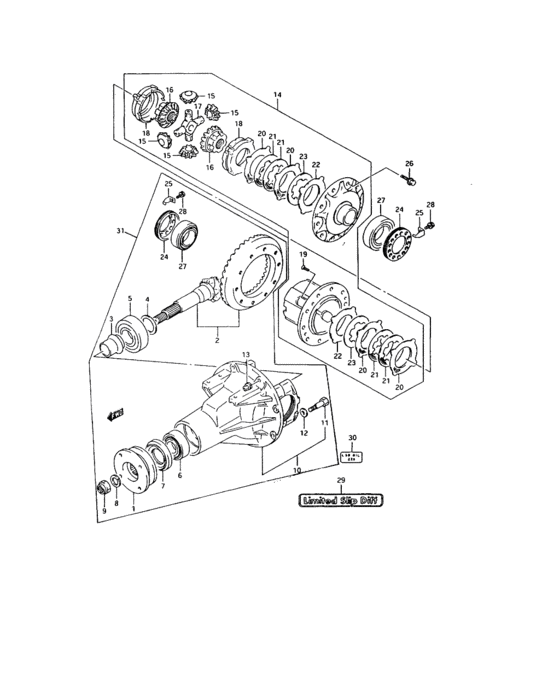

Autsl. rr diff (AUTSL. RR DIFF) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-56B01-000 FLANGE,UNIVERSAL JOINT |
27110-56B01-000 |
US $131.20 |
||
|
1
|
1
27110-60A00-000
フランジ,ユニバーサルジョイント
TYPE 1 |
27110-60A00-000 |
— | ||
| replacement | |||||
|
1
|
1
27110-56B01-000 FLANGE,UNIVERSAL JOINTTYPE 1 |
27110-56B01-000 |
US $131.20 |
||
|
2
|
2
20023-00000-000
Bevel pinion & gear set, rear
|
20023-00000-000 |
— | ||
|
2
|
2
27300-60841-000
ベベルピニオン/ギヤセット
TYPE 1 |
27300-60841-000 |
— | ||
| replacement | |||||
|
2
|
2
27300-60845-000
Bevel pinion & gear set
TYPE 1 |
27300-60845-000 |
— | ||
|
3
|
3
27315-60A00-000
スペーサ,ドライブベベルピニオン
|
27315-60A00-000 |
— | ||
| replacement | |||||
|
3
|
3
27315-60A01-000 SPACER,DRIVE BEVEL PINION |
27315-60A01-000 |
US $28 |
||
|
4
|
4
09181-35012-000 SHIM(35X42X1) |
09181-35012-000 |
US $25 |
||
|
4
|
4
09181-35013-000
シム,T:1.03
|
09181-35013-000 |
— | ||
|
4
|
4
09181-35014-000
Shim 35x42x1.06
|
09181-35014-000 |
— | ||
|
4
|
4
09181-35015-000
シム,T:1.09
|
09181-35015-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35014-000
Shim 35x42x1.06
|
09181-35014-000 |
— | ||
|
4
|
4
09181-35016-000
シム,T:1.12
|
09181-35016-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35117-000 SHIM(35X42X1.12) |
09181-35117-000 |
US $21.70 |
||
|
4
|
4
09181-35017-000
シム,T:1.15
|
09181-35017-000 |
— | ||
|
4
|
4
09181-35018-000
シム,T:1.18
|
09181-35018-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35119-000 SHIM(35X42X1.18) |
09181-35119-000 |
from US $1.82 |
||
|
4
|
4
09181-35019-000
シム,T:1.21
|
09181-35019-000 |
— | ||
|
4
|
4
09181-35020-000
シム,T:1.24
|
09181-35020-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35122-000 SHIM(35X42X1.24) |
09181-35122-000 |
US $21.70 |
||
|
4
|
4
09181-35021-000
シム,T:1.27
|
09181-35021-000 |
— | ||
|
4
|
4
09181-35022-000
シム,T:1.30
|
09181-35022-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35125-000 SHIM(35X42X1.3) |
09181-35125-000 |
US $21.70 |
||
|
4
|
4
09181-35023-000 SHIM(35X42X0.3) |
09181-35023-000 |
US $2.24 |
||
| replacement | |||||
|
4
|
4
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) |
09181-35101-000 |
from US $1.35 |
||
|
4
|
4
09181-35024-000 SHIM(35X57X1) |
09181-35024-000 |
from US $9.04 |
||
|
4
|
4
09181-35025-000 SHIM(35X42X0.55) |
09181-35025-000 |
US $26.90 |
||
|
4
|
4
09181-35026-000 SHIM(35X42X0.65) |
09181-35026-000 |
US $26.90 |
||
|
5
|
5
09265-35002-000
ベアリング,35X80X22.75
|
09265-35002-000 |
— | ||
| replacement | |||||
|
5
|
5
09265-35011-000 BEARING(35X80X22.75) |
09265-35011-000 |
US $40 |
||
|
6
|
6
09265-A3000-300
Roulement avant
|
09265-A3000-300 |
— | ||
|
7
|
7
09283-40022-000 SEAL,OIL(40X72X18.5) |
09283-40022-000 |
US $12.16 |
||
| replacement | |||||
|
7
|
7
09283-40027-000 SEAL,OIL(40x72x11x18) |
09283-40027-000 |
from US $7.25 |
||
|
8
|
8
09160-20056-000 WASHER(20.1X36X4) |
09160-20056-000 |
US $2.88 |
||
|
9
|
9
09139-20003-000
Nut
|
09139-20003-000 |
— | ||
|
10
|
10
27450-60A11-000
キャリアアッシ,ディファレンシャル,リヤ
|
27450-60A11-000 |
— | ||
| replacement | |||||
|
10
|
10
27450-60850-000 CARRIER SET,DIFF |
27450-60850-000 |
US $397.44 |
||
|
11
|
11
09111-12009-000
ボルト,12X61
|
09111-12009-000 |
— | ||
| replacement | |||||
|
11
|
11
09111-12010-000 BOLT(12X58) |
09111-12010-000 |
US $2.43 |
||
|
12
|
12
08321-A3112-600
Rondelle
|
08321-A3112-600 |
— | ||
|
13
|
13
09159-10091-000 NUT |
09159-10091-000 |
US $2.88 |
||
|
14
|
14
27400-60A40-000
リミテツドスリップデフ アッシ
|
27400-60A40-000 |
— | ||
|
15
|
15
27331-60A40-000
ピニオン,ディファレンシャル
|
27331-60A40-000 |
— | ||
|
16
|
16
27341-60A40-000
ギヤ,ディファレンシャルサイド
|
27341-60A40-000 |
— | ||
|
17
|
17
27351-60A40-000
スパイダ,ディファレンシャルピニオン
|
27351-60A40-000 |
— | ||
|
18
|
18
27357-60A40-000
リング,クラッチプレッシャ
|
27357-60A40-000 |
— | ||
|
19
|
19
27429-60A40-000
スクリュ,LSDケース
|
27429-60A40-000 |
— | ||
| replacements | |||||
|
19
|
19
02122-0612B-000 SCREW |
02122-0612B-000 |
from US $0.80 |
||
|
19
|
19
02122-0612A-000 SCREW |
02122-0612A-000 |
from US $0.80 |
||
|
19
|
19
02122-06123-000
Screw
|
02122-06123-000 |
— | ||
|
20
|
20
27433-60A40-170
PLATE,LSD FRICTION T1.7
|
27433-60A40-170 |
— | ||
|
20
|
20
27433-60A40-180
PLATE,LSD FRICTION T1.8
|
27433-60A40-180 |
— | ||
|
21
|
21
27432-60A40-170
Disk,lsd friction t1.7
|
27432-60A40-170 |
— | ||
|
21
|
21
27432-60A40-180
DISC,LSD FRICTION T1.8
|
27432-60A40-180 |
— | ||
|
22
|
22
27434-60A40-000
PLATE,LSD SPRING
|
27434-60A40-000 |
— | ||
|
23
|
23
27435-60A40-000 DISC,LSD SPRING |
27435-60A40-000 |
US $48.21 |
||
|
24
|
24
27461-83000-000 ADJUSTER,DIFF SIDE BEARING |
27461-83000-000 |
from US $7.52 |
||
|
25
|
25
27462-63202-000 PLATE,BEARING LOCK |
27462-63202-000 |
US $2.74 |
||
|
26
|
26
27415-56B00-000
ボルト,ドライブベベルギヤ
|
27415-56B00-000 |
— | ||
| replacements | |||||
|
26
|
26
09103-10253-000
Bolt,10x28
|
09103-10253-000 |
— | ||
|
26
|
26
09103-10184-000 BOLT(10X25) |
09103-10184-000 |
US $30.20 |
||
|
27
|
27
09265-45002-000 BEARING(45.2X80X19.84) |
09265-45002-000 |
from US $45.60 |
||
|
28
|
28
01134-08126-000
Bolt
|
01134-08126-000 |
— | ||
| replacement | |||||
|
28
|
28
01570-0812A-000 Bolt |
01570-0812A-000 |
US $14.40 |
||
|
29
|
29
27911-79400-000
EMBLEM,LINITED SLIP DIFF
United Kingdom |
27911-79400-000 |
— | ||
|
29
|
29
27911-A7940-000
Emblem
|
27911-A7940-000 |
— | ||
|
30
|
30
27912-60A00-000
Emblem,lsd oil capacity
United Kingdom |
27912-60A00-000 |
— | ||
|
30
|
30
27912-A60A0-000
Emblem
|
27912-A60A0-000 |
— | ||
|
31
|
31
27301-60A51-000
Rear differential a/
|
27301-60A51-000 |
— | ||
