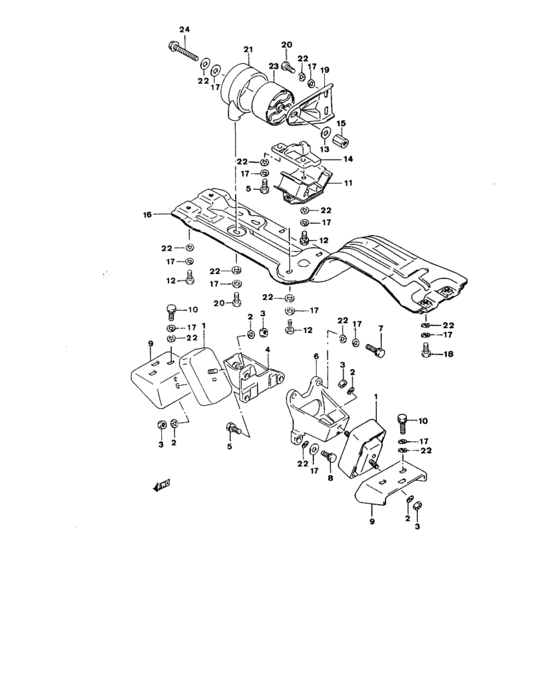

Eng. bracket, type 1 (ENG. BRACKET, TYPE 1) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-A60A0-100
Fr.bracket silentbl.
|
11610-A60A0-100 |
— | ||
|
2
|
2
08321-B3110-300
Rondelle
|
08321-B3110-300 |
— | ||
|
3
|
3
08310-12103-000 Nut |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
3
|
3
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
3
|
3
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
4
|
4
11641-60A00-000
ブラケット,エンジンフロントマウンチング,ライト
|
11641-60A00-000 |
— | ||
|
5
|
5
01107-10303-000 ボルト |
01107-10303-000 |
US $1.72 |
||
| replacement | |||||
|
5
|
5
01500-1030A-000 BOLT |
01500-1030A-000 |
from US $0.96 |
||
|
6
|
6
11651-60A00-000 BRACKET,ENG FR MTG,L |
11651-60A00-000 |
US $53.73 |
||
|
7
|
7
01107-10353-000
ボルト
|
01107-10353-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-1035B-000 BOLT |
01500-1035B-000 |
from US $4.10 |
||
|
8
|
8
01107-10303-000 ボルト |
01107-10303-000 |
US $1.72 |
||
| replacement | |||||
|
8
|
8
01500-1030A-000 BOLT |
01500-1030A-000 |
from US $0.96 |
||
|
9
|
9
11661-56B00-000 BRACKET,ENG FR MTG FRAME SIDE |
11661-56B00-000 |
US $17.22 |
||
|
10
|
10
01707-10303-000
Vis
|
01707-10303-000 |
— | ||
|
11
|
11
11710-60A01-000 MOUNTING,ENG RR |
11710-60A01-000 |
US $217.60 |
||
|
11
|
11
11710-A60A0-100
Eng.rear brack.assy
ALTERN. |
11710-A60A0-100 |
— | ||
|
12
|
12
01107-10203-000 ボルト |
01107-10203-000 |
US $2.22 |
||
| replacement | |||||
|
12
|
12
01500-1020B-000 BOLTBolt, axle bearing housing |
01500-1020B-000 |
from US $0.76 |
||
|
13
|
13
08322-21103-000 ワッシャ |
08322-21103-000 |
US $2.73 |
||
| replacements | |||||
|
13
|
13
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
13
|
13
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
14
|
14
11741-60A01-000 BRACKET,ENG RR MTG |
11741-60A01-000 |
US $47.47 |
||
|
15
|
15
09140-10040-000 NUT |
09140-10040-000 |
US $32.40 |
||
|
16
|
16
11730-60A01-000
メンバ,エンジンリヤマウンチング
|
11730-60A01-000 |
— | ||
| replacements | |||||
|
16
|
16
11730-58B23-000 MEMBER,ENG RR MTG |
11730-58B23-000 |
US $252.80 |
||
|
16
|
16
01580-1025A-000 Bolt |
01580-1025A-000 |
US $19.50 |
||
|
16
|
16
01580-10253-000
ボルト
|
01580-10253-000 |
— | ||
|
17
|
17
09160-10001-000
Washer
|
09160-10001-000 |
— | ||
| replacement | |||||
|
17
|
17
09160-10093-000 WASHER(10.5X24X2.3) |
09160-10093-000 |
from US $1.35 |
||
|
18
|
18
01707-10253-000
Bolt, carrier
|
01707-10253-000 |
— | ||
|
19
|
19
11755-60A01-000 BRACKET,TORQUE STOPPER |
11755-60A01-000 |
US $11.89 |
||
|
20
|
20
01107-10253-000
ボルト
|
01107-10253-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-1025A-000 Bolt |
01500-1025A-000 |
US $0.91 |
||
|
21
|
21
11751-60A01-000
ハウジング,トルクストッパブッシュ
|
11751-60A01-000 |
— | ||
|
22
|
22
08321-B3110-300
Rondelle
|
08321-B3110-300 |
— | ||
|
23
|
23
11910-60A02-000
ブッシュ,トルクストッパ
|
11910-60A02-000 |
— | ||
| replacements | |||||
|
23
|
23
11910-60A03-000 BUSH,TORQUE STOPPER |
11910-60A03-000 |
US $132 |
||
|
23
|
23
01580-1020A-000 Bolt |
01580-1020A-000 |
US $19.50 |
||
|
23
|
23
11910-A60A0-100
Stop bush
ALTERN. |
11910-A60A0-100 |
— | ||
|
24
|
24
01107-10753-000
Screw
H 26949 |
01107-10753-000 |
— | ||
|
24
|
24
01107-10803-000
Screw
D 26950 |
01107-10803-000 |
— | ||
