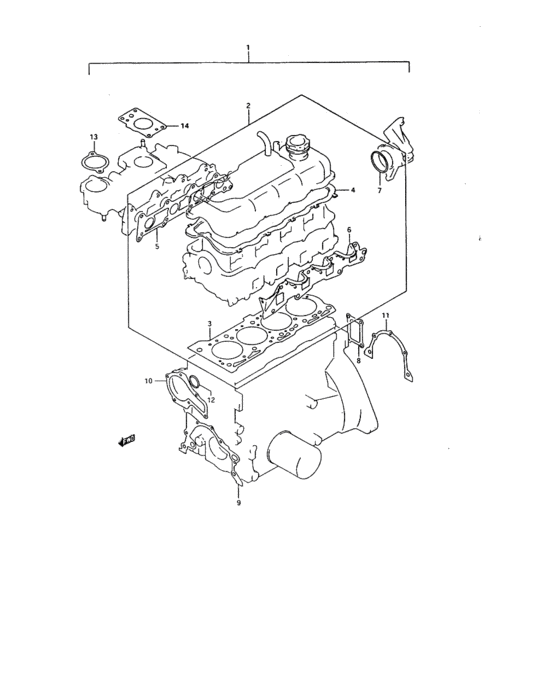

Eng. gask. s. inj (ENG. GASK. S. INJ) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
00000-A0080-500
Engine gaskets set
TYPE 1 |
00000-A0080-500 |
— | ||
|
1
|
1
00000-A0104-100
Engine gaskets set
TYPE 2,TYPE 3 |
00000-A0104-100 |
— | ||
|
2
|
2
00000-A0080-600
Cyl.head gaskets set
TYPE 1 |
00000-A0080-600 |
— | ||
|
2
|
2
00000-A0104-000
Cyl.head gaskets set
TYPE 2,TYPE 3 |
00000-A0104-000 |
— | ||
|
3
|
3
11141-A71C1-000
Cyl. head gasket
|
11141-A71C1-000 |
— | ||
|
4
|
4
11189-A8260-000
Cover gasket
|
11189-A8260-000 |
— | ||
|
5
|
5
13119-B60A0-000
Inlet manif.gasket
|
13119-B60A0-000 |
— | ||
|
6
|
6
14140-A60A2-000
Exh.maniv.gasket
|
14140-A60A2-000 |
— | ||
|
7
|
7
0928C-56004-000
O ring
|
0928C-56004-000 |
— | ||
|
8
|
8
15519-B60A0-000
Fuel pump gasket
|
15519-B60A0-000 |
— | ||
|
9
|
9
11229-60A00-000 GASKET,CYL BLOCK PLATETYPE 2,TYPE 3 |
11229-60A00-000 |
US $13.44 |
||
|
9
|
9
11229-A60A0-000
Plate gasket
TYPE 1 |
11229-A60A0-000 |
— | ||
|
10
|
10
16119-A60A1-000
Case gasket
|
16119-A60A1-000 |
— | ||
|
11
|
11
17431-A60A1-000
Pump gasket
|
17431-A60A1-000 |
— | ||
|
12
|
12
11349-B60A1-000
Gasket
|
11349-B60A1-000 |
— | ||
|
13
|
13
09280-25008-000
Water inlet o ring
|
09280-25008-000 |
— | ||
|
14
|
14
13421-61A00-000 GASKET,THROTTLE BODY |
13421-61A00-000 |
US $12.32 |
