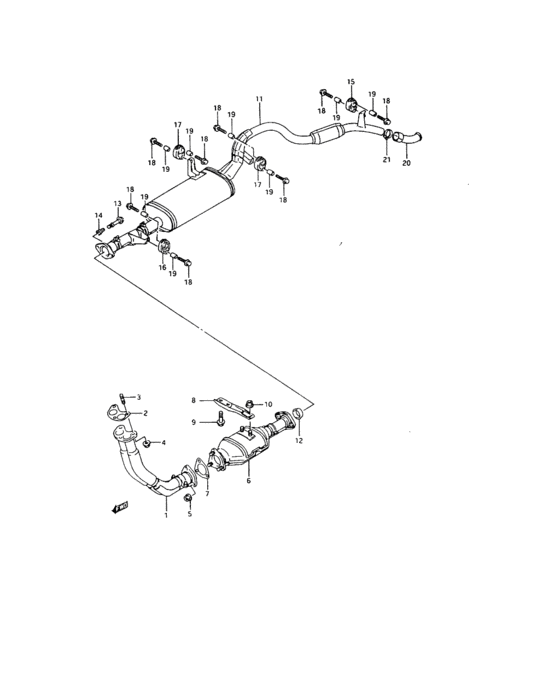

Exh.sys.inj. type 2,type 3 (EXH.SYS.INJ. TYPE 2,TYPE 3) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-56B00-000
Front exh.hose assy
|
14190-56B00-000 |
— | ||
| replacement | |||||
|
1
|
1
14190-56B0V-000
PIPE,EXH NO.1
|
14190-56B0V-000 |
— | ||
|
2
|
2
14181-A60A0-200
Manifold gasket
|
14181-A60A0-200 |
— | ||
|
3
|
3
01411-10253-000
New Genuine Part
|
01411-10253-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-1025A-000 BOLT,STUD |
01411-1025A-000 |
US $1.60 |
||
|
4
|
4
09159-10094-000
Nut
|
09159-10094-000 |
— | ||
| replacement | |||||
|
4
|
4
09159-10098-000 NUT |
09159-10098-000 |
from US $1.28 |
||
|
5
|
5
09139-A1004-900
Nut
|
09139-A1004-900 |
— | ||
|
6
|
6
14250-57B00-000
Pipe, exhaust no.2
|
14250-57B00-000 |
— | ||
| replacement | |||||
|
6
|
6
14250-57B0V-000
PIPE,EXH NO.2
|
14250-57B0V-000 |
— | ||
|
7
|
7
14182-57B00-000 GASKET,EXH PIPE |
14182-57B00-000 |
US $21.71 |
||
|
8
|
8
14284-57B00-000 BRACKET,EXH NO.2 PIPE |
14284-57B00-000 |
US $57.04 |
||
|
9
|
9
01197-10253-000
Screw
|
01197-10253-000 |
— | ||
|
10
|
10
08316-16103-000 NutTYPE 3 |
08316-16103-000 |
US $1.30 |
||
| replacement | |||||
|
10
|
10
08316-1010B-000 NUTTYPE 3 |
08316-1010B-000 |
from US $0.80 |
||
|
10
|
10
08316-A1610-300
Nut
|
08316-A1610-300 |
— | ||
|
11
|
11
14300-60A40-000
Muffler assy
H 23863 |
14300-60A40-000 |
— | ||
| replacement | |||||
|
11
|
11
14300-60A4V-000 MUFFLERH 23863 |
14300-60A4V-000 |
US $478.72 |
||
|
11
|
11
14300-60A41-000
Muffler
D 23864 |
14300-60A41-000 |
— | ||
| replacement | |||||
|
11
|
11
14300-60A4V-000 MUFFLERD 23864 |
14300-60A4V-000 |
US $478.72 |
||
|
12
|
12
14183-60A10-000
リング,シール
|
14183-60A10-000 |
— | ||
| replacement | |||||
|
12
|
12
14183-76A00-000 RING,SEAL EXH PIPE |
14183-76A00-000 |
from US $11.57 |
||
|
13
|
13
09119-10042-000
ボルト,10X65
|
09119-10042-000 |
— | ||
| replacement | |||||
|
13
|
13
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
14
|
14
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
14
|
14
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
15
|
15
14281-79010-000
Mounting, muffler
|
14281-79010-000 |
— | ||
| replacement | |||||
|
15
|
15
14281-60G11-000 MOUNTING,MUFFLER(HS60) |
14281-60G11-000 |
US $5.78 |
||
|
16
|
16
14281-60B00-000 MOUNTING,MUF |
14281-60B00-000 |
US $4.86 |
||
|
17
|
17
14281-79010-000
Mounting, muffler
|
14281-79010-000 |
— | ||
| replacement | |||||
|
17
|
17
14281-60G11-000 MOUNTING,MUFFLER(HS60) |
14281-60G11-000 |
US $5.78 |
||
|
18
|
18
01514-08353-000
Vis
|
01514-08353-000 |
— | ||
|
19
|
19
09180-08095-000
Bush
|
09180-08095-000 |
— | ||
| replacement | |||||
|
19
|
19
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
20
|
20
14391-60A40-000
Extending hose
H 23863 |
14391-60A40-000 |
— | ||
| replacement | |||||
|
20
|
20
14391-60A41-000
Pipe,muf tail extension
H 23863 |
14391-60A41-000 |
— | ||
|
20
|
20
14391-60A41-000
Pipe,muf tail extension
D 23864,Norway |
14391-60A41-000 |
— | ||
|
21
|
21
09402-85C00-000
Clamp
Switzerland |
09402-85C00-000 |
— | ||
