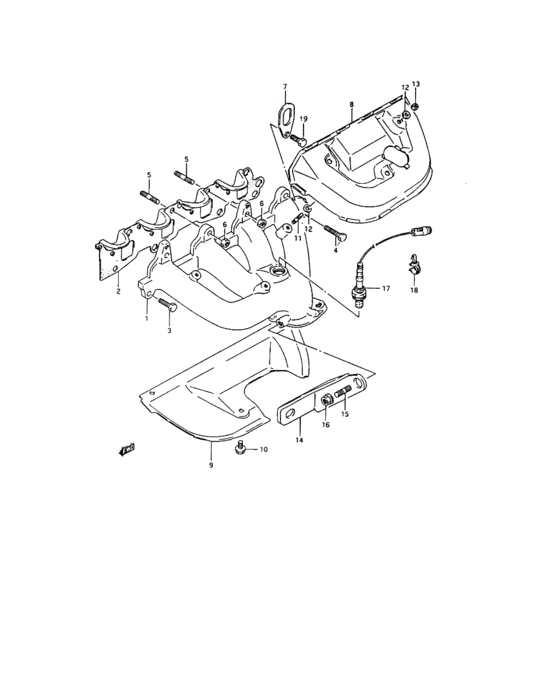

Exhaust manifold (EXHAUST MANIFOLD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-61A01-000
マニホールド,エキゾースト
INYECCION |
14111-61A01-000 |
— | ||
| replacement | |||||
|
1
|
1
14111-60X51-000
MANIFOLD,EXH
INYECCION |
14111-60X51-000 |
— | ||
|
1
|
1
14111-60A01-000
Exhaust manifold
|
14111-60A01-000 |
— | ||
| replacement | |||||
|
1
|
1
14111-60X51-000
MANIFOLD,EXH
|
14111-60X51-000 |
— | ||
|
2
|
2
14140-60A20-000 GASKET,EXH MANF |
14140-60A20-000 |
US $102.40 |
||
|
2
|
2
14140-A60A2-000
Exh.maniv.gasket
TYPE 3 |
14140-A60A2-000 |
— | ||
|
3
|
3
01707-08253-000
Vis
|
01707-08253-000 |
— | ||
|
4
|
4
01107-08356-000
ボルト
|
01107-08356-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
4
|
4
01500-0835B-000 BOLTBolt, muffler support |
01500-0835B-000 |
from US $0.96 |
||
|
5
|
5
13117-60B00-000
Stud bolt
|
13117-60B00-000 |
— | ||
| replacements | |||||
|
5
|
5
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
5
|
5
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
|
6
|
6
08310-12086-000
ナット
|
08310-12086-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
6
|
6
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
7
|
7
11851-73000-000
Engine book
TYPE 3 |
11851-73000-000 |
— | ||
| replacement | |||||
|
7
|
7
11851-62B00-000 HOOKTYPE 3 |
11851-62B00-000 |
US $5.02 |
||
|
7
|
7
11851-73001-000
フック,エンジン
|
11851-73001-000 |
— | ||
| replacement | |||||
|
7
|
7
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
8
|
8
14120-60A00-000
COVER,EXH MANF,UPPER
|
14120-60A00-000 |
— | ||
|
8
|
8
14120-61A00-000
カバー,エキゾーストマニホールド,アッパ
INYECCION |
14120-61A00-000 |
— | ||
| replacement | |||||
|
8
|
8
14120-60A00-000
COVER,EXH MANF,UPPER
INYECCION |
14120-60A00-000 |
— | ||
|
9
|
9
14130-60A00-000
COVER,EXH MANF,LOWER
|
14130-60A00-000 |
— | ||
|
10
|
10
01537-06102-000
Bolt
|
01537-06102-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-06107-000 BOLT |
01550-06107-000 |
from US $0.80 |
||
|
10
|
10
01537-06103-000
Bolt
TYPE 3 |
01537-06103-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0610A-000 BOLTTYPE 3 |
01550-0610A-000 |
from US $0.80 |
||
|
10
|
10
01550-0610B-000 BoltBolt TYPE 3 |
01550-0610B-000 |
from US $0.80 |
||
|
11
|
11
01411-06123-000
Bolt, stud
|
01411-06123-000 |
— | ||
| replacement | |||||
|
11
|
11
01411-0612A-000 BOLT,STUD |
01411-0612A-000 |
from US $0.67 |
||
|
12
|
12
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
13
|
13
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
13
|
13
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
13
|
13
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
14
|
14
14190-60A00-000
スチフナ,エキゾーストマニホールド
TYPE 3 |
14190-60A00-000 |
— | ||
| replacement | |||||
|
14
|
14
14190-60A01-000
Stiffener,exh manf
TYPE 3 |
14190-60A01-000 |
— | ||
|
14
|
14
14190-60A01-000
Stiffener,exh manf
|
14190-60A01-000 |
— | ||
|
15
|
15
01411-10163-000
スタッドボルト
|
01411-10163-000 |
— | ||
| replacement | |||||
|
15
|
15
01411-1016A-000 BOLT,STUD |
01411-1016A-000 |
US $1.60 |
||
|
16
|
16
08316-16103-000 NutTYPE 3 |
08316-16103-000 |
US $1.30 |
||
| replacement | |||||
|
16
|
16
08316-1010B-000 NUTTYPE 3 |
08316-1010B-000 |
from US $0.80 |
||
|
16
|
16
08316-A1610-300
Nut
|
08316-A1610-300 |
— | ||
|
17
|
17
18213-57B10-000 SENSOR,OXYGENTYPE 2:INY. |
18213-57B10-000 |
US $220.80 |
||
|
17
|
17
18213-57B20-000
Sensok, oxygen
TYPE 3:INY. |
18213-57B20-000 |
— | ||
| replacement | |||||
|
17
|
17
18213-57B21-000
SENSOR ASSY,OXYGEN
TYPE 3:INY. |
18213-57B21-000 |
— | ||
|
17
|
17
18213-61A10-000
SENSOR,OXYGEN
TYPE 1,INY. |
18213-61A10-000 |
— | ||
|
18
|
18
18214-56B00-000
Clamp
TYPE 2,TYPE 3:INY. |
18214-56B00-000 |
— | ||
| replacements | |||||
|
18
|
18
09407-14407-000 CLAMP(L:145)Band TYPE 2,TYPE 3:INY. |
09407-14407-000 |
from US $2.08 |
||
|
18
|
18
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) TYPE 2,TYPE 3:INY. |
09407-10404-000 |
from US $3.96 |
||
|
18
|
18
18214-61A00-000
Clamp
TYPE 1,INY. |
18214-61A00-000 |
— | ||
| replacements | |||||
|
18
|
18
09407-11401-000 CLAMP(L:95)Clamp, stator lead TYPE 1,INY. |
09407-11401-000 |
from US $1.76 |
||
|
18
|
18
09407-10403-000 CLAMP(L:95)Clamp, lead connector TYPE 1,INY. |
09407-10403-000 |
US $12.50 |
||
|
19
|
19
01107-08303-000
ボルト
TYPE 3 |
01107-08303-000 |
— | ||
| replacement | |||||
|
19
|
19
01500-0830B-000 BoltTYPE 3 |
01500-0830B-000 |
from US $0.96 |
||
