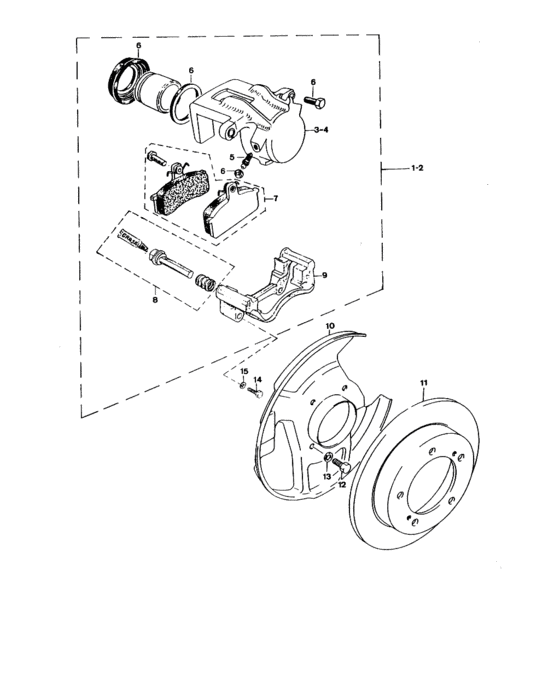

Fr. brake s/abes (FR. BRAKE S/ABES) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55102-B60A0-000
Caliper assy, front brake lh
|
55102-B60A0-000 |
— | ||
|
2
|
2
55101-B60A0-000
Caliper assy, front brake rh
|
55101-B60A0-000 |
— | ||
|
3
|
3
00000-A0090-300
Left assy
|
00000-A0090-300 |
— | ||
|
4
|
4
00000-A0090-400
Right assy
|
00000-A0090-400 |
— | ||
|
5
|
5
00000-A0023-600
Bleed screw
|
00000-A0023-600 |
— | ||
|
6
|
6
00000-A0071-800
Repair kit
|
00000-A0071-800 |
— | ||
|
7
|
7
00000-A0090-600
Pads kit
|
00000-A0090-600 |
— | ||
|
8
|
8
00000-A0090-700
Guides repair equip.
|
00000-A0090-700 |
— | ||
|
9
|
9
00000-A0090-500
Bracket assy, r/h, l/h
|
00000-A0090-500 |
— | ||
|
10
|
10
55221-56B10-000
COVER,BRAKE DISK DUST,R
|
55221-56B10-000 |
— | ||
|
10
|
10
55222-56B10-000
COVER,BRAKE DISK DUST,L
|
55222-56B10-000 |
— | ||
|
11
|
11
55211-60A00-000
ディスク,フロントブレーキ
|
55211-60A00-000 |
— | ||
| replacement | |||||
|
11
|
11
55211-60A01-000 DISC,FR BRAKE |
55211-60A01-000 |
US $132.80 |
||
|
12
|
12
09100-10237-000 BOLT(10X23) |
09100-10237-000 |
US $1.44 |
||
|
13
|
13
08321-83110-300
Spring washer
|
08321-83110-300 |
— | ||
|
14
|
14
09100-A1211-100
Vis
|
09100-A1211-100 |
— | ||
|
15
|
15
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
