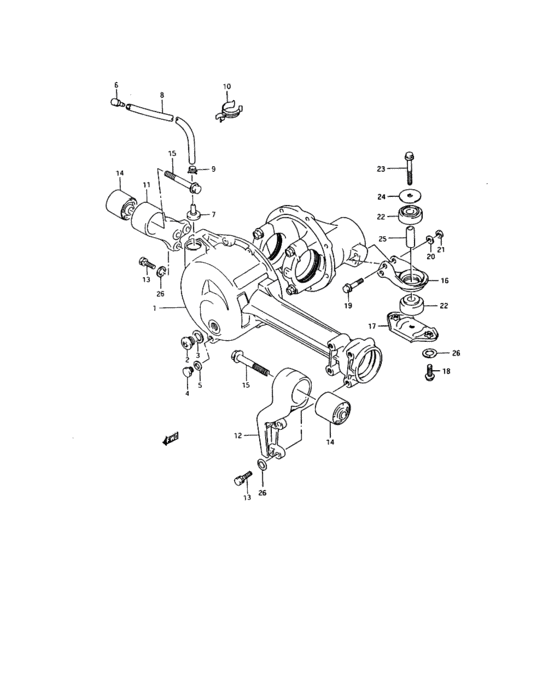

Front shaft case (FRONT SHAFT CASE) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27611-60A02-000
ハウジング,ディファレンシャル
|
27611-60A02-000 |
— | ||
| replacements | |||||
|
1
|
1
27611-60A11-000
HOUSING,DIFFERENTIAL
|
27611-60A11-000 |
— | ||
|
1
|
1
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
|
1
|
1
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
2
|
2
09246-A1600-900
Vacuum plug
|
09246-A1600-900 |
— | ||
|
3
|
3
09168-20001-000
Gasket
|
09168-20001-000 |
— | ||
| replacement | |||||
|
3
|
3
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) |
09168-20003-000 |
from US $2.28 |
||
|
4
|
4
09247-12003-000 PLUGPlug (12x13) |
09247-12003-000 |
US $0.96 |
||
|
5
|
5
09168-A1200-700
Joint
|
09168-A1200-700 |
— | ||
|
6
|
6
46543-60A00-000
プラグ,ブリーザ
|
46543-60A00-000 |
— | ||
| replacement | |||||
|
6
|
6
27991-65D01-000 PLUG,BREATHER |
27991-65D01-000 |
from US $1.92 |
||
|
7
|
7
17620-85400-000
Breather hose union
|
17620-85400-000 |
— | ||
|
8
|
8
09352-70113-510
Breather hose
D 35090 |
09352-70113-510 |
— | ||
| replacements | |||||
|
8
|
8
09352-70113-600
HOSE(7X11X600)
D 35090 |
09352-70113-600 |
— | ||
|
8
|
8
09352-70119-600 Hose(7X11X600)D 35090 |
09352-70119-600 |
from US $4.64 |
||
|
8
|
8
09354-70123-600
Hose, drain (l:600->90)
H 35089 |
09354-70123-600 |
— | ||
| replacements | |||||
|
8
|
8
44421-12FR0-000 HOSEH 35089 |
44421-12FR0-000 |
from US $16.64 |
||
|
8
|
8
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) H 35089 |
09355-70125-600 |
from US $5.51 |
||
|
9
|
9
09401-A1140-400
Colher
|
09401-A1140-400 |
— | ||
|
10
|
10
09408-00063-000 CLAMPH 35089 |
09408-00063-000 |
US $30.20 |
||
|
10
|
10
09408-00109-000
Clamp
D 35090 |
09408-00109-000 |
— | ||
|
11
|
11
27661-60A01-000 BRACKET,DIFF MOUNT,R |
27661-60A01-000 |
US $48.21 |
||
|
12
|
12
27665-60A00-000
ブラケット,ディファレンシャルマウンチング,レフト
|
27665-60A00-000 |
— | ||
| replacement | |||||
|
12
|
12
27665-60A01-000 BRACKET,DIFF MOUNT,L |
27665-60A01-000 |
US $87.22 |
||
|
13
|
13
01107-10303-000 ボルト |
01107-10303-000 |
US $1.72 |
||
| replacement | |||||
|
13
|
13
01500-1030A-000 BOLT |
01500-1030A-000 |
from US $0.96 |
||
|
14
|
14
27550-40A00-000
Diff.suspension pad
|
27550-40A00-000 |
— | ||
|
15
|
15
09103-12033-000 BOLT(12X84) |
09103-12033-000 |
from US $4.39 |
||
|
16
|
16
27670-60A00-000 BRACKET,DIFF MOUNT RR NO.1 |
27670-60A00-000 |
US $26.31 |
||
|
17
|
17
27675-60A01-000 BRACKET,DIFF MOUNT RR NO.2 |
27675-60A01-000 |
US $15.79 |
||
|
18
|
18
01137-10203-000
ボルト
|
01137-10203-000 |
— | ||
| replacement | |||||
|
18
|
18
01570-1020A-000 Bolt |
01570-1020A-000 |
US $0.96 |
||
|
19
|
19
01517-10553-000
ボルト
|
01517-10553-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-1055B-000 Bolt |
01550-1055B-000 |
from US $1.44 |
||
|
19
|
19
01550-10557-000 Bolt |
01550-10557-000 |
from US $1.37 |
||
|
20
|
20
08321-B3110-300
Rondelle
|
08321-B3110-300 |
— | ||
|
21
|
21
08310-12103-000 Nut |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
21
|
21
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
21
|
21
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
22
|
22
27561-60A01-000 MOUNTING,DIFF RR |
27561-60A01-000 |
from US $9.99 |
||
|
23
|
23
01517-10653-000
Bolt
|
01517-10653-000 |
— | ||
|
24
|
24
09160-10104-000 WASHER(10.5X50X3.2) |
09160-10104-000 |
from US $3.74 |
||
|
25
|
25
09180-10117-000 SPACER(10.9X17.3X46.8) |
09180-10117-000 |
from US $3.96 |
||
|
26
|
26
04321-B3110-300
Grover washer
|
04321-B3110-300 |
— | ||
|
26
|
26
27301-60A12-000
Rear differential a/
|
27301-60A12-000 |
— | ||
| replacement | |||||
|
26
|
26
27301-77E20-000
DIFFERENTIAL ASSY,RR
|
27301-77E20-000 |
— | ||
