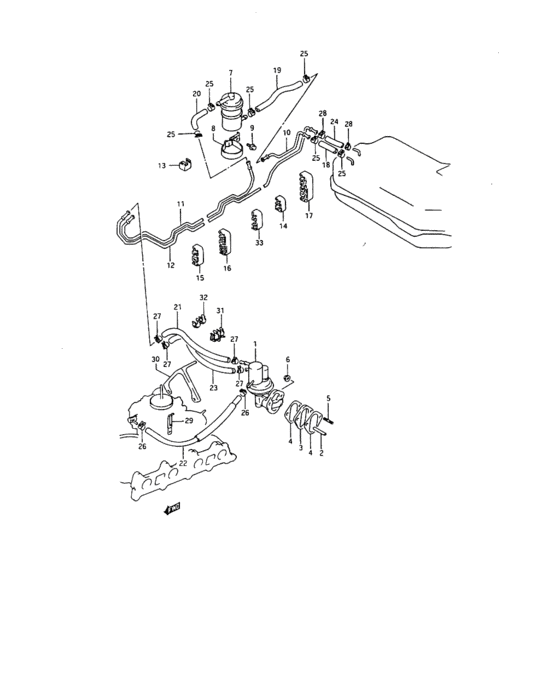

Fuel pump carb (FUEL PUMP CARB) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-A60A0-100
Pump assy, fuel
|
15100-A60A0-100 |
— | ||
|
2
|
2
15315-82000-000 ROD,FUEL PUMP |
15315-82000-000 |
US $3.04 |
||
|
3
|
3
15318-60A00-000
Insulator, fuel pump
|
15318-60A00-000 |
— | ||
| replacement | |||||
|
3
|
3
15318-60A01-000
INSULATOR,FUEL PUMP
|
15318-60A01-000 |
— | ||
|
4
|
4
15319-B60A0-000
Pump gasket
|
15319-B60A0-000 |
— | ||
|
5
|
5
01421-08303-000
Stud m 8x1.25 x
|
01421-08303-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0830A-000 BOLT,STUD |
01421-0830A-000 |
from US $1.44 |
||
|
6
|
6
08316-A1608-600
Ecrou
|
08316-A1608-600 |
— | ||
|
7
|
7
15410-A8000-000
Fuel filter
|
15410-A8000-000 |
— | ||
|
8
|
8
09403-A4530-100
Clip fij. filtre
TYPE 3 |
09403-A4530-100 |
— | ||
|
8
|
8
15421-60A00-000
Clip
|
15421-60A00-000 |
— | ||
| replacement | |||||
|
8
|
8
09403-51407-000 CLAMP |
09403-51407-000 |
US $2.56 |
||
|
9
|
9
01537-06102-000
Bolt
|
01537-06102-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-06107-000 BOLT |
01550-06107-000 |
from US $0.80 |
||
|
10
|
10
15811-60A10-000
Pipe, fuel tank to filter
|
15811-60A10-000 |
— | ||
|
11
|
11
15821-A60A1-000
Pump filter pipe
|
15821-A60A1-000 |
— | ||
|
12
|
12
15861-60A10-000
Return pipe
|
15861-60A10-000 |
— | ||
|
13
|
13
15891-60A00-000
クランプ,フューエルパイプ
|
15891-60A00-000 |
— | ||
| replacement | |||||
|
13
|
13
15893-67B00-000 CLAMP,FUEL PIPE |
15893-67B00-000 |
US $1.76 |
||
|
14
|
14
15892-60A00-000
クランプ,フューエルパイプ
|
15892-60A00-000 |
— | ||
| replacement | |||||
|
14
|
14
15892-60A11-000 CLAMP,FUEL PIPE |
15892-60A11-000 |
US $1.60 |
||
|
15
|
15
15893-60A00-000
クランプ,フューエルパイプ
|
15893-60A00-000 |
— | ||
| replacement | |||||
|
15
|
15
15893-60A11-000 CLAMP,FUEL PIPE |
15893-60A11-000 |
US $2.24 |
||
|
16
|
16
15895-60A00-000
クランプ,フューエルパイプ
|
15895-60A00-000 |
— | ||
| replacement | |||||
|
16
|
16
15895-60A11-000 CLAMP,FUEL PIPE |
15895-60A11-000 |
US $2.56 |
||
|
17
|
17
15896-60A00-000
CLAMP,FUEL PIPE
|
15896-60A00-000 |
— | ||
|
18
|
18
09356-76145-300
Hose,filter to hose
L:300-120 |
09356-76145-300 |
— | ||
| replacement | |||||
|
18
|
18
09356-76145-600 HOSE(7.6X14X600)Hose (7.6x14x600) L:300-120 |
09356-76145-600 |
from US $22.63 |
||
|
19
|
19
09356-76145-300
Hose,filter to hose
L:300-130 |
09356-76145-300 |
— | ||
| replacement | |||||
|
19
|
19
09356-76145-600 HOSE(7.6X14X600)Hose (7.6x14x600) L:300-130 |
09356-76145-600 |
from US $22.63 |
||
|
20
|
20
09356-76145-300
Hose,filter to hose
L:300-120 |
09356-76145-300 |
— | ||
| replacement | |||||
|
20
|
20
09356-76145-600 HOSE(7.6X14X600)Hose (7.6x14x600) L:300-120 |
09356-76145-600 |
from US $22.63 |
||
|
21
|
21
15870-60A00-000
Hose,pipe to pump
|
15870-60A00-000 |
— | ||
| replacement | |||||
|
21
|
21
09356-58125-00A HOSE(5.8X12.2X1000)Hose, fuel (5.8x12.2x1000) |
09356-58125-00A |
US $43.30 |
||
|
21
|
21
15870-60A01-000
Hose,pipe to pump
TYPE 3 |
15870-60A01-000 |
— | ||
| replacement | |||||
|
21
|
21
09356-58125-00A HOSE(5.8X12.2X1000)Hose, fuel (5.8x12.2x1000) TYPE 3 |
09356-58125-00A |
US $43.30 |
||
|
22
|
22
15830-A8300-100
Hose,pump-carbur.
|
15830-A8300-100 |
— | ||
|
23
|
23
15840-60A00-000
Hose,pump to pipe
|
15840-60A00-000 |
— | ||
| replacements | |||||
|
23
|
23
09356-76145-00B
HOSE(7.6X14X2000)
|
09356-76145-00B |
— | ||
|
23
|
23
09356-76145-00A
Hose, pipe to pump
|
09356-76145-00A |
— | ||
|
24
|
24
09356-58125-300
ホース,8.8X12.2X300
L:300-110 |
09356-58125-300 |
— | ||
| replacement | |||||
|
24
|
24
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:300-110 |
09356-58127-600 |
from US $15.84 |
||
|
25
|
25
09401-12407-000
Clip
|
09401-12407-000 |
— | ||
| replacement | |||||
|
25
|
25
09401-12405-000 CLIP |
09401-12405-000 |
from US $1.60 |
||
|
26
|
26
09401-A1140-400
Colher
|
09401-A1140-400 |
— | ||
|
27
|
27
09401-B1340-400
Collier
|
09401-B1340-400 |
— | ||
|
28
|
28
09401-A1140-400
Colher
|
09401-A1140-400 |
— | ||
|
29
|
29
09404-A0840-500
Collier
H MOTOR 6275 |
09404-A0840-500 |
— | ||
|
29
|
29
09408-A0012-100
Clamp, fuel hose
D MOTOR 6276 |
09408-A0012-100 |
— | ||
|
30
|
30
15881-60A00-000
Bracket
|
15881-60A00-000 |
— | ||
| replacement | |||||
|
30
|
30
15881-60A0V-000
BRACKET,FUEL HOSE CLAMP
|
15881-60A0V-000 |
— | ||
|
31
|
31
09408-00090-000
クランプ
|
09408-00090-000 |
— | ||
| replacement | |||||
|
31
|
31
09403-13308-000 CLAMP |
09403-13308-000 |
US $14 |
||
|
32
|
32
09408-B0008-300
Hose clip
|
09408-B0008-300 |
— | ||
|
33
|
33
15897-60A00-000
CLAMP,FUEL PIPE
|
15897-60A00-000 |
— | ||
