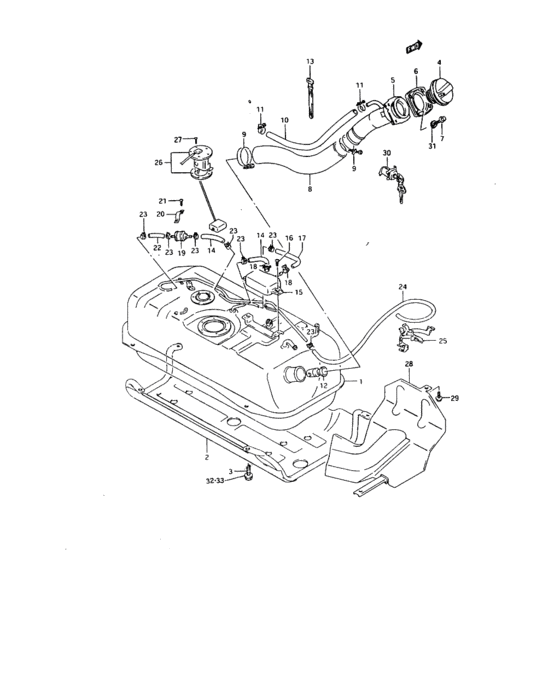

Fuel tank, carb (FUEL TANK, CARB) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-60A10-000
Tank assy, fuel
|
89101-60A10-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-64A50-000
TANK ASSY,FUEL
|
89101-64A50-000 |
— | ||
|
2
|
2
89320-60A00-000
PROTECTOR,FUEL TANK
|
89320-60A00-000 |
— | ||
|
3
|
3
01707-10253-000
Bolt, carrier
|
01707-10253-000 |
— | ||
|
4
|
4
89260-65AB0-000
Cap assy, filler
TYPE 3 |
89260-65AB0-000 |
— | ||
| replacement | |||||
|
4
|
4
89260-50J00-000 CAP ASSY,FUEL FILLERTYPE 3 |
89260-50J00-000 |
US $19.80 |
||
|
4
|
4
89260-82031-000
キャップアッシ,フューエルフィラ
|
89260-82031-000 |
— | ||
| replacement | |||||
|
4
|
4
89260-73H00-000 CAP ASSY,FUEL FILLER |
89260-73H00-000 |
from US $19.82 |
||
|
5
|
5
89201-60A00-000
ネックアッシ,フューエルフィラ
|
89201-60A00-000 |
— | ||
| replacement | |||||
|
5
|
5
89201-60A03-000 NECK ASSY,FUEL FILLER |
89201-60A03-000 |
US $106.35 |
||
|
6
|
6
89285-82300-000
Filler neck gasket
|
89285-82300-000 |
— | ||
|
7
|
7
09116-05014-000 BOLT(5X20) |
09116-05014-000 |
US $1.82 |
||
|
8
|
8
89241-60A00-000
ホース,フューエルタンクフィラ
|
89241-60A00-000 |
— | ||
| replacement | |||||
|
8
|
8
89241-60A20-000 HOSE,FUEL TANK FILLER |
89241-60A20-000 |
US $206.08 |
||
|
9
|
9
09400-A2231-300
Clamp
|
09400-A2231-300 |
— | ||
|
10
|
10
09354-13204-520
Breather hose
|
09354-13204-520 |
— | ||
| replacements | |||||
|
10
|
10
09355-13207-00B HOSE(13X20X2000) |
09355-13207-00B |
from US $45.60 |
||
|
10
|
10
09355-13207-600 HOSE(13X20X600)Hose, breather |
09355-13207-600 |
from US $11.63 |
||
|
11
|
11
09400-A2031-100
Clamp
|
09400-A2031-100 |
— | ||
|
12
|
12
89280-60A00-000
バルブ,フューエルタンク,インレット
|
89280-60A00-000 |
— | ||
| replacement | |||||
|
12
|
12
89280-60A01-000 VALVE,FUEL TANK INLET |
89280-60A01-000 |
US $26.40 |
||
|
13
|
13
09467-A2340-100
Clamp
|
09467-A2340-100 |
— | ||
|
14
|
14
09354-54115-300
ホース,5.4X11.4X300
|
09354-54115-300 |
— | ||
| replacement | |||||
|
14
|
14
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum |
09355-54115-600 |
from US $7.20 |
||
|
15
|
15
89411-60A01-000
SEPARATOR,FUEL AND VAPOR
|
89411-60A01-000 |
— | ||
|
16
|
16
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
17
|
17
09354-54116-300
ホース,5.4X11.4X300
|
09354-54116-300 |
— | ||
| replacement | |||||
|
17
|
17
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum |
09355-54115-600 |
from US $7.20 |
||
|
18
|
18
09401-A1140-900
Clamp
|
09401-A1140-900 |
— | ||
|
19
|
19
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
20
|
20
89485-60A00-000
クランプ,チェックバルブ
|
89485-60A00-000 |
— | ||
| replacement | |||||
|
20
|
20
89485-82000-000 CLAMP,CHECK VALVE |
89485-82000-000 |
US $2.24 |
||
|
21
|
21
02112-05086-000
Screw
|
02112-05086-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
|
22
|
22
09354-54115-300
ホース,5.4X11.4X300
|
09354-54115-300 |
— | ||
| replacement | |||||
|
22
|
22
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum |
09355-54115-600 |
from US $7.20 |
||
|
23
|
23
09401-A1140-900
Clamp
|
09401-A1140-900 |
— | ||
|
24
|
24
09354-54115-00A
ホース,5.4X11.4X1000
|
09354-54115-00A |
— | ||
| replacement | |||||
|
24
|
24
09355-54115-00B HOSE(5.4X11.4X2000) |
09355-54115-00B |
US $37.17 |
||
|
25
|
25
89411-61A00-000
HOLDER,CHECK VALVE OUTLET HOSE
|
89411-61A00-000 |
— | ||
|
26
|
26
34810-A60A1-100
Fuel gauge
|
34810-A60A1-100 |
— | ||
|
27
|
27
02112-05086-000
Screw
|
02112-05086-000 |
— | ||
| replacement | |||||
|
27
|
27
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
|
28
|
28
89311-60A10-000
プロテクタ,フューエルフィラホース
|
89311-60A10-000 |
— | ||
| replacement | |||||
|
28
|
28
89311-66A10-000 PROTECTOR,FUEL FILLER HOSE |
89311-66A10-000 |
US $71.44 |
||
|
29
|
29
09132-06008-000 SCREW(6X12) |
09132-06008-000 |
US $12.90 |
||
|
30
|
30
89300-60801-000
シリンダセット,フューエルリッド
JA-JH |
89300-60801-000 |
— | ||
| replacement | |||||
|
30
|
30
89300-60802-000 CYLINDER,FUEL LID LOCKCylinder, fuel lid lock JA-JH |
89300-60802-000 |
US $76.80 |
||
|
30
|
30
89340-60A01-000
Lock cylinder
TYPE 3 |
89340-60A01-000 |
— | ||
|
31
|
31
09161-05012-000
Flat washer
|
09161-05012-000 |
— | ||
|
32
|
32
08322-21103-000 ワッシャ |
08322-21103-000 |
US $2.73 |
||
| replacements | |||||
|
32
|
32
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
32
|
32
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
33
|
33
08321-B3110-300
Rondelle
|
08321-B3110-300 |
— | ||
