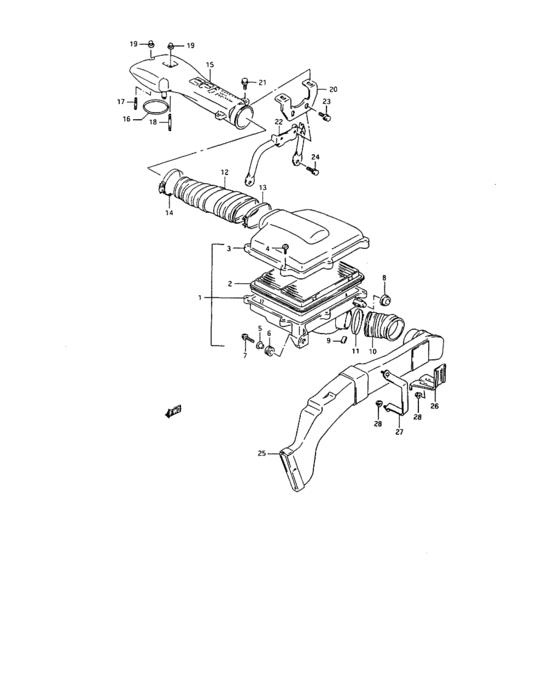

Inj. air fil. type 2,type 3 (INJ. AIR FIL. TYPE 2,TYPE 3) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-61A01-000 CLEANER ASSY,AIR |
13700-61A01-000 |
US $237.36 |
||
|
2
|
2
13780-61A00-000
ELEMENT,AIR CLEANER
|
13780-61A00-000 |
— | ||
|
3
|
3
13740-61A00-000
キャップ,エアクリーナ
|
13740-61A00-000 |
— | ||
|
4
|
4
13743-61A00-000
スクリュ,エアクリーナ
|
13743-61A00-000 |
— | ||
| replacements | |||||
|
4
|
4
02112-1620B-000 SCREW |
02112-1620B-000 |
from US $0.80 |
||
|
4
|
4
02112-16203-000
Screw
|
02112-16203-000 |
— | ||
|
5
|
5
13812-61A00-000
スペーサ,エアクリーナケース
|
13812-61A00-000 |
— | ||
|
6
|
6
13813-61A00-000
グロメット,エアクリーナケース
|
13813-61A00-000 |
— | ||
| replacement | |||||
|
6
|
6
13813-61AT0-000 GROMMET SET,AIR CLEANER |
13813-61AT0-000 |
US $6.56 |
||
|
7
|
7
01514-06253-000
Vis fixation carter
|
01514-06253-000 |
— | ||
|
8
|
8
09308-15006-000
GROMMET
|
09308-15006-000 |
— | ||
|
9
|
9
13814-61A00-000
CUSHION,AIR CLEANER
|
13814-61A00-000 |
— | ||
|
10
|
10
13871-61A00-000
Hose,air cleaner,inlet
|
13871-61A00-000 |
— | ||
|
11
|
11
09402-68202-000
クランプ
|
09402-68202-000 |
— | ||
| replacement | |||||
|
11
|
11
09402-68208-000 CLAMP |
09402-68208-000 |
from US $6.72 |
||
|
12
|
12
13880-61A00-000 HOSE ASSY,AIR CLEANER,OUTLET |
13880-61A00-000 |
from US $44.69 |
||
|
13
|
13
13891-61A00-000
Clamp,air clnr out hose
|
13891-61A00-000 |
— | ||
| replacement | |||||
|
13
|
13
13891-61A0V-000 CLAMP,AIR CLEANER OUTLET HOSE |
13891-61A0V-000 |
US $14.29 |
||
|
14
|
14
09402-76502-000
クランプ
|
09402-76502-000 |
— | ||
| replacement | |||||
|
14
|
14
09402-82511-000 CLAMP |
09402-82511-000 |
US $65.90 |
||
|
15
|
15
13830-61A02-000
Case, air intake
|
13830-61A02-000 |
— | ||
|
16
|
16
13885-61A00-000
シール,エアインテークケース
|
13885-61A00-000 |
— | ||
| replacement | |||||
|
16
|
16
13879-81050-000 GASKET,CARB UPR |
13879-81050-000 |
US $2.89 |
||
|
17
|
17
01421-06553-000
Bolt,stud
|
01421-06553-000 |
— | ||
| replacement | |||||
|
17
|
17
01421-0655A-000 BOLT,STUD |
01421-0655A-000 |
US $17.70 |
||
|
18
|
18
01421-06803-000
スタッドボルト
|
01421-06803-000 |
— | ||
| replacement | |||||
|
18
|
18
01421-0680A-000 BOLT,STUD |
01421-0680A-000 |
from US $3.69 |
||
|
19
|
19
01514-06123-000
Vis
|
01514-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
19
|
19
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
20
|
20
13861-61A01-000
Plate,air intake case
|
13861-61A01-000 |
— | ||
|
21
|
21
01517-08163-000
Bolt 8 x 16
|
01517-08163-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
21
|
21
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
22
|
22
13850-61A01-000
ブラケット,エアインテークケース
|
13850-61A01-000 |
— | ||
| replacement | |||||
|
22
|
22
13850-61A02-000
Bracket,air intake case
|
13850-61A02-000 |
— | ||
|
23
|
23
01517-08123-000
ボルト
|
01517-08123-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
23
|
23
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
24
|
24
01137-08163-000
ボルト
|
01137-08163-000 |
— | ||
| replacement | |||||
|
24
|
24
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
25
|
25
13820-60A01-000
Case,air clnr suction
|
13820-60A01-000 |
— | ||
|
26
|
26
13828-60A00-000
Clamp,suction case,no,1
|
13828-60A00-000 |
— | ||
|
27
|
27
13829-60A00-000
CLAMP,SUCTION CASE NO.2
|
13829-60A00-000 |
— | ||
|
28
|
28
08316-A1606-300
Fastening nut
|
08316-A1606-300 |
— | ||
