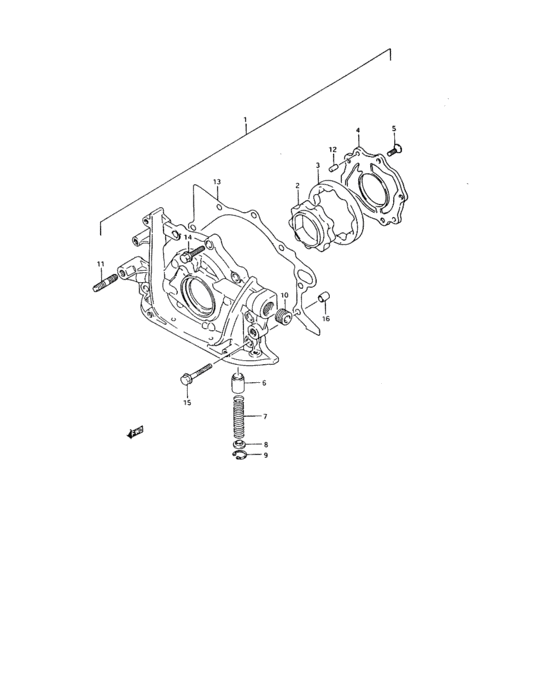

Oil pump (OIL PUMP) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-60810-000
ポンプアッシ,オイル
|
16100-60810-000 |
— | ||
| replacement | |||||
|
1
|
1
16100-60840-000 PUMP SET,OIL |
16100-60840-000 |
from US $244.94 |
||
|
1
|
1
16100-60A00-000
Oil pump assy
TYPE 3 |
16100-60A00-000 |
— | ||
|
2
|
2
16131-60A00-000
ギヤ,オイルポンプ,インナ
|
16131-60A00-000 |
— | ||
| replacement | |||||
|
2
|
2
16130-60A00-000 ROTOR SET,OIL PUMP |
16130-60A00-000 |
US $139.20 |
||
|
3
|
3
16132-60A00-000
ギヤ,オイルポンプ,アウタ
|
16132-60A00-000 |
— | ||
|
4
|
4
16161-60A00-000
プレート,オイルポンプギヤ
|
16161-60A00-000 |
— | ||
|
5
|
5
09126-06007-000 SCREW(6X14)Bolt |
09126-06007-000 |
from US $3.21 |
||
|
6
|
6
16151-60A00-000
バルブ,オイルポンプリリーフ
|
16151-60A00-000 |
— | ||
| replacement | |||||
|
6
|
6
16150-60A20-000 VALVE SET,OIL PUMP RELIEF |
16150-60A20-000 |
US $9.12 |
||
|
7
|
7
16152-60A00-000
スプリング,オイルリリーフ
|
16152-60A00-000 |
— | ||
| replacement | |||||
|
7
|
7
16150-60A20-000 VALVE SET,OIL PUMP RELIEF |
16150-60A20-000 |
US $9.12 |
||
|
8
|
8
09169-05011-000
Washer
|
09169-05011-000 |
— | ||
| replacement | |||||
|
8
|
8
09169-05024-000 WASHER |
09169-05024-000 |
from US $3.25 |
||
|
9
|
9
08331-41159-000
New Genuine Part
|
08331-41159-000 |
— | ||
| replacement | |||||
|
9
|
9
08331-4115A-000 CIRCLIP |
08331-4115A-000 |
US $1.60 |
||
|
10
|
10
09246-08003-000
Plug
|
09246-08003-000 |
— | ||
| replacement | |||||
|
10
|
10
09246-08002-000 PLUG |
09246-08002-000 |
US $1.76 |
||
|
11
|
11
01411-08203-000
Stud 8x20
|
01411-08203-000 |
— | ||
| replacement | |||||
|
11
|
11
01411-0820B-000 BOLT,STUD |
01411-0820B-000 |
US $1.12 |
||
|
12
|
12
04221-06129-000 PIN |
04221-06129-000 |
from US $0.96 |
||
|
13
|
13
16119-A60A1-000
Case gasket
|
16119-A60A1-000 |
— | ||
|
14
|
14
02142-06233-000
Screw
|
02142-06233-000 |
— | ||
|
15
|
15
01517-16355-000
Screw
|
01517-16355-000 |
— | ||
|
16
|
16
04211-A0910-900
Coupille centrage
|
04211-A0910-900 |
— | ||
