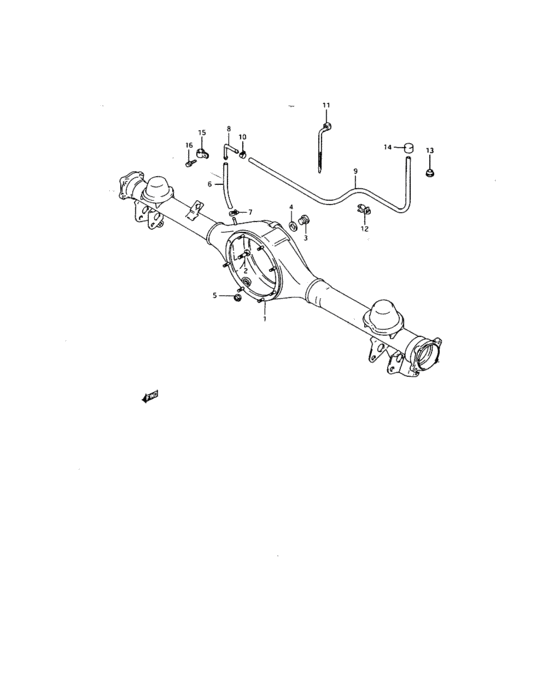

Rr shaft housing (RR SHAFT HOUSING) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46500-A60A0-000
Rear shaft case
|
46500-A60A0-000 |
— | ||
|
2
|
2
09119-10037-000 BoltBolt (10x42) |
09119-10037-000 |
from US $5.88 |
||
|
3
|
3
09246-A1600-900
Vacuum plug
|
09246-A1600-900 |
— | ||
|
4
|
4
09168-20002-000 GASKET(20.5X30X1.5)20.1x27x2 |
09168-20002-000 |
from US $0.80 |
||
| replacement | |||||
|
4
|
4
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) |
09168-20003-000 |
from US $2.28 |
||
|
5
|
5
09246-A1601-000
Brain plug
|
09246-A1601-000 |
— | ||
|
6
|
6
46520-60A00-000
ホース,ブリーザ
|
46520-60A00-000 |
— | ||
| replacement | |||||
|
6
|
6
46546-65D00-000 HOSE,BREATHER L:310 |
46546-65D00-000 |
US $10.49 |
||
|
7
|
7
00010-00000-000
Collier tuyau
|
00010-00000-000 |
— | ||
|
8
|
8
09367-08003-000 UNION |
09367-08003-000 |
US $42.70 |
||
|
9
|
9
09352-70113-29A
Hose n.2
TYPE 3 |
09352-70113-29A |
— | ||
|
9
|
9
46544-60A00-000
ホース,ブリーザ,NO.2
H DIG.90 |
46544-60A00-000 |
— | ||
| replacements | |||||
|
9
|
9
09352-70113-00B
HOSE(7X11X2000)
H DIG.90 |
09352-70113-00B |
— | ||
|
9
|
9
09352-70119-00B Hose(7X11X2000)H DIG.90 |
09352-70119-00B |
from US $22.40 |
||
|
9
|
9
46544-60A01-000
Hose n.2
D ENERO 91-TYPE 2 |
46544-60A01-000 |
— | ||
| replacements | |||||
|
9
|
9
09352-70113-00B
HOSE(7X11X2000)
D ENERO 91-TYPE 2 |
09352-70113-00B |
— | ||
|
9
|
9
09352-70119-00B Hose(7X11X2000)D ENERO 91-TYPE 2 |
09352-70119-00B |
from US $22.40 |
||
|
10
|
10
09401-A1140-400
Colher
TYPE 1,TYPE 2 |
09401-A1140-400 |
— | ||
|
10
|
10
09401-A1140-900
Clamp
TYPE 3 |
09401-A1140-900 |
— | ||
|
11
|
11
09407-14408-000 CLAMP(L:120) |
09407-14408-000 |
US $9.20 |
||
| replacement | |||||
|
11
|
11
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
12
|
12
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
12
|
12
09407-A2340-100
Clamp
TYPE 3 |
09407-A2340-100 |
— | ||
|
13
|
13
09308-11009-000 GROMMETTYPE 3 |
09308-11009-000 |
US $28 |
||
|
13
|
13
09308-12010-000
グロメット
TYPE 1,TYPE 2 |
09308-12010-000 |
— | ||
|
14
|
14
46543-60A00-000
プラグ,ブリーザ
|
46543-60A00-000 |
— | ||
| replacement | |||||
|
14
|
14
27991-65D01-000 PLUG,BREATHER |
27991-65D01-000 |
from US $1.92 |
||
|
15
|
15
09403-14408-000 CLAMP |
09403-14408-000 |
from US $4.62 |
||
|
16
|
16
01537-06102-000
Bolt
|
01537-06102-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-06107-000 BOLT |
01550-06107-000 |
from US $0.80 |
||
