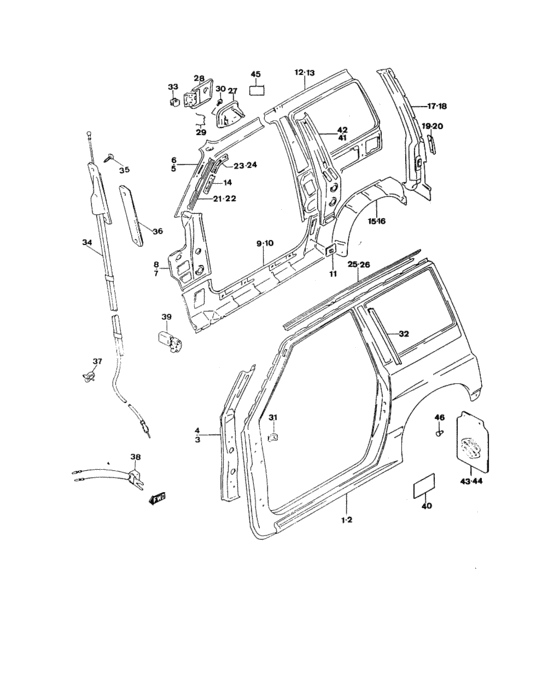

Side panel, v (SIDE PANEL, V) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64110-61A20-000
Panel, side body outer rh
H 11001,JX |
64110-61A20-000 |
— | ||
| replacement | |||||
|
1
|
1
64111-61A10-000
PANEL,SIDE BODY OUTER,R
H 11001,JX |
64111-61A10-000 |
— | ||
|
1
|
1
64110-61A80-000
Outer panel,r/h
H 11000,JX |
64110-61A80-000 |
— | ||
| replacement | |||||
|
1
|
1
64111-61A10-000
PANEL,SIDE BODY OUTER,R
H 11000,JX |
64111-61A10-000 |
— | ||
|
1
|
1
64110-62A10-000
Outer panel,r/h
H 11000,JA |
64110-62A10-000 |
— | ||
| replacement | |||||
|
1
|
1
64111-61A10-000
PANEL,SIDE BODY OUTER,R
H 11000,JA |
64111-61A10-000 |
— | ||
|
1
|
1
64110-62A30-000
Outer panel,r/h
United Kingdom,JX |
64110-62A30-000 |
— | ||
| replacement | |||||
|
1
|
1
64111-61A30-000
Panel,side body outer,r
United Kingdom,JX |
64111-61A30-000 |
— | ||
|
1
|
1
64110-62A40-000
Outer panel,r/h
D 11001,JA |
64110-62A40-000 |
— | ||
|
2
|
2
64510-51A00-000
Outer panel,l/h
H 11000,JA |
64510-51A00-000 |
— | ||
|
2
|
2
64510-61A80-000
Outer panel,l/h
H 11000,JX |
64510-61A80-000 |
— | ||
| replacement | |||||
|
2
|
2
64511-61A30-000 PANEL,SIDE BODY OUTER,LH 11000,JX |
64511-61A30-000 |
US $577.28 |
||
|
2
|
2
64510-62A20-000
Outer panel,l/h
United Kingdom,JX |
64510-62A20-000 |
— | ||
| replacement | |||||
|
2
|
2
64511-61A10-000
Panel,side body outer,l
United Kingdom,JX |
64511-61A10-000 |
— | ||
|
2
|
2
64510-62A30-000
Outer panel,l/h
H 11001,JX |
64510-62A30-000 |
— | ||
| replacement | |||||
|
2
|
2
64511-61A30-000 PANEL,SIDE BODY OUTER,LH 11001,JX |
64511-61A30-000 |
US $577.28 |
||
|
2
|
2
64510-62A40-000
Panel, side body outer lh
D 11001,JA |
64510-62A40-000 |
— | ||
|
3
|
3
64120-60A00-000
リンフォースメント,フロントピラー,ライト
H 11000 |
64120-60A00-000 |
— | ||
| replacement | |||||
|
3
|
3
64120-60A11-000 REINFORCEMENT,FR PILLAR,RH 11000 |
64120-60A11-000 |
US $110.21 |
||
|
3
|
3
64120-60A10-000
リンフォースメント,フロントピラー,ライト
D 11001 |
64120-60A10-000 |
— | ||
| replacement | |||||
|
3
|
3
64120-60A11-000 REINFORCEMENT,FR PILLAR,RD 11001 |
64120-60A11-000 |
US $110.21 |
||
|
4
|
4
64520-60A00-000
リンフォースメント,フロントピラー,レフト
H 11000 |
64520-60A00-000 |
— | ||
| replacement | |||||
|
4
|
4
64520-60A11-000 REINFORCEMENT,FR PILLAR,LH 11000 |
64520-60A11-000 |
US $127.70 |
||
|
4
|
4
64520-60A10-000
リンフォースメント,フロントピラー,レフト
H 11001 |
64520-60A10-000 |
— | ||
| replacement | |||||
|
4
|
4
64520-60A11-000 REINFORCEMENT,FR PILLAR,LH 11001 |
64520-60A11-000 |
US $127.70 |
||
|
5
|
5
63111-61A20-000 PANEL,ROOF SIDE INR,RJX |
63111-61A20-000 |
US $55.57 |
||
|
5
|
5
63111-61A30-000 PANEL,ROOF SIDE INR,RJA |
63111-61A30-000 |
US $55.57 |
||
|
6
|
6
63511-61A20-000
PANEL,ROOF SIDE INR,L
JX |
63511-61A20-000 |
— | ||
|
6
|
6
63511-61A30-000 PANEL,ROOF SIDE INR,LJA |
63511-61A30-000 |
US $60.72 |
||
|
7
|
7
61480-60A01-000
パネル,フロントピラーインナロア,ライト
|
61480-60A01-000 |
— | ||
| replacement | |||||
|
7
|
7
61480-62A10-000
Panel,fr pilla inr lwr,r
|
61480-62A10-000 |
— | ||
|
8
|
8
61580-60A01-000
パネル,フロントピラーインナロア,レフト
|
61580-60A01-000 |
— | ||
| replacements | |||||
|
8
|
8
09100-08294-000 BOLT(8X13) |
09100-08294-000 |
US $12.50 |
||
|
8
|
8
61580-62A00-000
Panel comp,fr pillar inr lwr,l
|
61580-62A00-000 |
— | ||
|
9
|
9
61490-60A00-000
PANEL,SILL SIDE INNER,R
|
61490-60A00-000 |
— | ||
|
10
|
10
61590-60A00-000 PANEL,SILL SIDE INNER,L |
61590-60A00-000 |
US $200 |
||
|
11
|
11
61492-80000-000
リンフォースメント,シートベルト,ロア
|
61492-80000-000 |
— | ||
| replacement | |||||
|
11
|
11
61492-80010-000 REINFORCEMENT,SEAT BELT LOWER |
61492-80010-000 |
US $5.63 |
||
|
12
|
12
63210-61A00-000
Panel, side body inner rh
D 11001:H,19051:JA |
63210-61A00-000 |
— | ||
|
12
|
12
63210-61A20-000
Panel, side body inner rh
D 11001:H,19051:JX |
63210-61A20-000 |
— | ||
| replacement | |||||
|
12
|
12
63210-61X02-000
Panel, side body inner rh
D 11001:H,19051:JX |
63210-61X02-000 |
— | ||
|
12
|
12
63210-61A30-000
Inner side panel,r/h
H 11000,JA |
63210-61A30-000 |
— | ||
| replacement | |||||
|
12
|
12
63210-61A00-000
Panel, side body inner rh
H 11000,JA |
63210-61A00-000 |
— | ||
|
12
|
12
63210-61A50-000
パネル,サイドボディインナ,ライト
H 11000,JX |
63210-61A50-000 |
— | ||
| replacement | |||||
|
12
|
12
63210-61X02-000
Panel, side body inner rh
H 11000,JX |
63210-61X02-000 |
— | ||
|
12
|
12
63210-63A00-000
Inner side panel,r/h
D 19052,JA |
63210-63A00-000 |
— | ||
|
12
|
12
63210-63A20-000
PANEL,SIDE BODY INNER,R
D 19052,JX |
63210-63A20-000 |
— | ||
|
13
|
13
63610-61A00-000
Panel, side body inner lh
D 11001:H,19051:JA |
63610-61A00-000 |
— | ||
|
13
|
13
63610-61A20-000
Panel, side body inner lh
D 11001:H,19051:JX |
63610-61A20-000 |
— | ||
| replacement | |||||
|
13
|
13
63610-61X02-000
Panel, side body inner lh
D 11001:H,19051:JX |
63610-61X02-000 |
— | ||
|
13
|
13
63610-61A30-000
Inner side panel,l/h
H 11000,JA |
63610-61A30-000 |
— | ||
|
13
|
13
63610-61A50-000
パネル,サイドボディインナ,レフト
H 11000,JX |
63610-61A50-000 |
— | ||
| replacement | |||||
|
13
|
13
63610-61X02-000
Panel, side body inner lh
H 11000,JX |
63610-61X02-000 |
— | ||
|
13
|
13
63610-63A00-000
Inner side panel,l/h
D 19052,JA |
63610-63A00-000 |
— | ||
|
13
|
13
63610-63A20-000
パネル,サイドボディインナ,レフト
D 19052,JX |
63610-63A20-000 |
— | ||
|
14
|
14
64151-60A00-000 REINFORCEMENT,RADIO ANTENNA |
64151-60A00-000 |
US $6.59 |
||
|
15
|
15
63410-60A00-000 PANEL,WHEEL HOUSING OUTER,R |
63410-60A00-000 |
US $209.60 |
||
|
16
|
16
63811-60A00-000 PANEL,RR WHEEL HSG OTR,L |
63811-60A00-000 |
US $209.60 |
||
|
17
|
17
64310-61A00-000
パネル,バックピラーアウタ,ライト
|
64310-61A00-000 |
— | ||
| replacement | |||||
|
17
|
17
64310-61A01-000 PANEL,BACK PILLAR OUTER,R |
64310-61A01-000 |
US $189.52 |
||
|
18
|
18
64710-61A00-000
パネル,バックピラーアウタ,レフト
TYPE 1,TYPE 2 |
64710-61A00-000 |
— | ||
| replacement | |||||
|
18
|
18
64710-61A22-000 PANEL,BACK PILLAR OUTER,LTYPE 1,TYPE 2 |
64710-61A22-000 |
US $307.28 |
||
|
18
|
18
64710-61A01-000
Rear out.pillar,l/h
TYPE 3 |
64710-61A01-000 |
— | ||
| replacement | |||||
|
18
|
18
64710-61A22-000 PANEL,BACK PILLAR OUTER,LTYPE 3 |
64710-61A22-000 |
US $307.28 |
||
|
19
|
19
65965-61A00-000 GARNISH,BACK PLR,R |
65965-61A00-000 |
US $32.38 |
||
|
20
|
20
65966-61A00-000 GARNISH,BACK PLR,L |
65966-61A00-000 |
US $32.38 |
||
|
21
|
21
64130-61A00-000 PANEL,FRONT WINDOW SIDE,R |
64130-61A00-000 |
US $33.30 |
||
|
22
|
22
64530-61A00-000 PANEL,FRONT WINDOW SIDE,L |
64530-61A00-000 |
US $44.16 |
||
|
23
|
23
64141-61A00-000 REINFORCEMENT,FR PILLAR UPR,R |
64141-61A00-000 |
US $13.87 |
||
|
24
|
24
64541-61A00-000 REINFORCEMENT,FR PILLAR UPR,L |
64541-61A00-000 |
US $13.87 |
||
|
25
|
25
64241-61A00-000
RAIL,ROOF SIDE OUTER,R
|
64241-61A00-000 |
— | ||
|
26
|
26
64641-61A00-000
RAIL,ROOF SIDE OUTER,L
|
64641-61A00-000 |
— | ||
|
27
|
27
64230-60A00-000 BOX,FUEL INLETJA |
64230-60A00-000 |
US $41.95 |
||
|
27
|
27
64231-60A10-000
BOX,FUEL INLET
JX |
64231-60A10-000 |
— | ||
|
28
|
28
65950-60A00-000 LID,FUEL INLETJA |
65950-60A00-000 |
US $47.10 |
||
|
28
|
28
65950-60A20-000 LID,FUEL INLETJX |
65950-60A20-000 |
US $44.53 |
||
|
29
|
29
65956-60A00-000
Hook
JX |
65956-60A00-000 |
— | ||
|
30
|
30
02152-05123-000
スクリュ
|
02152-05123-000 |
— | ||
| replacements | |||||
|
30
|
30
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
30
|
30
02112-1512A-000 SCREW |
02112-1512A-000 |
US $9.90 |
||
|
31
|
31
64214-60A00-000 BRACKET,COWL SIDE GARNISH RR |
64214-60A00-000 |
US $3.64 |
||
|
32
|
32
64216-61A00-000
Bracket, ctr pillar garnish
JA |
64216-61A00-000 |
— | ||
|
33
|
33
77132-60A00-000
ストッパ,フューエルリッド
|
77132-60A00-000 |
— | ||
| replacement | |||||
|
33
|
33
77117-60B00-000 STOPPER,FUEL LID |
77117-60B00-000 |
US $1.76 |
||
|
34
|
34
39250-60A00-000
アンテナアッシ
H 29969:JX |
39250-60A00-000 |
— | ||
| replacement | |||||
|
34
|
34
39250-60AA0-000 ANTENNA ASSYH 29969:JX |
39250-60AA0-000 |
US $64 |
||
|
34
|
34
39250-A60A0-000
Antenna
D 29970:JX |
39250-A60A0-000 |
— | ||
|
35
|
35
39251-60A00-000
スクリュ,アンテナ
JX |
39251-60A00-000 |
— | ||
| replacement | |||||
|
35
|
35
09129-04003-000 SCREW(4X12)JX |
09129-04003-000 |
US $15.10 |
||
|
36
|
36
39262-60A00-000
COVER,ANT HOLE
Belgium,Holland,Greece:JA |
39262-60A00-000 |
— | ||
|
37
|
37
09408-00106-000
クランプ
H 29969-JX |
09408-00106-000 |
— | ||
| replacement | |||||
|
37
|
37
09403-06412-000 CLAMPH 29969-JX |
09403-06412-000 |
US $12.90 |
||
|
38
|
38
33551-60A10-000 CONDENSER,NOISE SUPPRJX |
33551-60A10-000 |
US $14.32 |
||
|
39
|
39
33552-86000-000 FILTER,NOISE SUPPRESSORJX |
33552-86000-000 |
US $70.40 |
||
|
40
|
40
52263-00000-000
Tare/charge anagram
TYPE 1:N1 |
52263-00000-000 |
— | ||
|
40
|
40
52541-00000-000
Tare/charge anagram
TYPE 2,TYPE 3:N1 |
52541-00000-000 |
— | ||
|
40
|
40
52695-00000-000
Tare/charge anagram
TYPE 2,TYPE 3:N1:Holland |
52695-00000-000 |
— | ||
|
41
|
41
64250-61A00-000
REINFORCEMENT,CTR PILLAR,R
TYPE 2,TYPE 3 |
64250-61A00-000 |
— | ||
|
42
|
42
64650-61A00-000
REINFORCEMENT,CTR PILLAR,L
TYPE 2,TYPE 3 |
64650-61A00-000 |
— | ||
|
43
|
43
99000-990YB-167
Front flap set
|
99000-990YB-167 |
— | ||
|
44
|
44
52227-00000-000
Rear flap,r/h
|
52227-00000-000 |
— | ||
|
44
|
44
52228-00000-000
Rear flap,l/h
|
52228-00000-000 |
— | ||
|
45
|
45
11959-64B10-000
Label, fuel caution
TYPE 3 |
11959-64B10-000 |
— | ||
|
46
|
46
09409-06318-000 CLIP |
09409-06318-000 |
US $12.90 |
||
