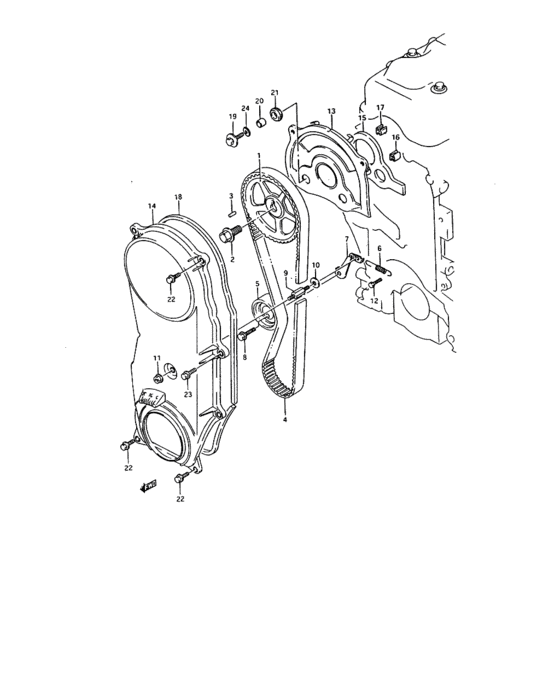

Timing (TIMING) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12741-60A00-000
プーリ,カムシャフトタイミング
|
12741-60A00-000 |
— | ||
| replacement | |||||
|
1
|
1
12741-60A01-000 PULLEY,CAMSHAFT TIMING BELT |
12741-60A01-000 |
US $204.80 |
||
|
2
|
2
01517-12256-000
Gear screw
|
01517-12256-000 |
— | ||
|
3
|
3
04221-05109-000 PIN |
04221-05109-000 |
from US $0.80 |
||
|
4
|
4
12761-B60A0-000
Timing belt
|
12761-B60A0-000 |
— | ||
|
5
|
5
12810-82003-000 TENSIONER ASSY,TIMING BELT |
12810-82003-000 |
US $148.80 |
||
|
6
|
6
12821-60A01-000 SPRING,TENSIONER |
12821-60A01-000 |
US $5.28 |
||
|
7
|
7
12830-60A00-000 PLATE,TENSIONER |
12830-60A00-000 |
US $9.60 |
||
|
8
|
8
01517-08356-000
Bolt, front
|
01517-08356-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
8
|
8
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
9
|
9
09108-06056-000
BOLT,STUD
|
09108-06056-000 |
— | ||
|
10
|
10
09160-06057-000
Washer (6.5x18x1.6)
|
09160-06057-000 |
— | ||
| replacement | |||||
|
10
|
10
09160-06109-000 WASHER(6.5X18X1.6) |
09160-06109-000 |
from US $0.80 |
||
|
11
|
11
08316-A1606-300
Fastening nut
|
08316-A1606-300 |
— | ||
|
12
|
12
01107-06256-000
Bolt, fender center
|
01107-06256-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-0625A-000 BOLTBolt, gear shift arm |
01500-0625A-000 |
from US $0.80 |
||
|
13
|
13
11360-A8200-000
Belt inner cover
|
11360-A8200-000 |
— | ||
|
14
|
14
11390-60A11-000 COVER,TIMING BELT,OUTSIDE |
11390-60A11-000 |
from US $35.82 |
||
|
15
|
15
11383-82000-000 SEAL,TIMING BELT COVER INSIDE |
11383-82000-000 |
US $13.28 |
||
|
16
|
16
11394-82000-000
シール,ウォータポンプ
|
11394-82000-000 |
— | ||
| replacement | |||||
|
16
|
16
11394-70B00-000 SEAL |
11394-70B00-000 |
US $4.80 |
||
|
17
|
17
11394-82000-000
シール,ウォータポンプ
|
11394-82000-000 |
— | ||
| replacement | |||||
|
17
|
17
11394-70B00-000 SEAL |
11394-70B00-000 |
US $4.80 |
||
|
17
|
17
11395-82000-000
Arretoir int couvercle
TYPE 3 |
11395-82000-000 |
— | ||
|
18
|
18
11396-60B00-000
シール,タイミングベルトカバー,アウトサイド
|
11396-60B00-000 |
— | ||
| replacement | |||||
|
18
|
18
11396-71C00-000 SEAL,TIMING BELT COVER OUT |
11396-71C00-000 |
from US $4.12 |
||
|
19
|
19
01107-06206-000
Bolt, front
|
01107-06206-000 |
— | ||
| replacement | |||||
|
19
|
19
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
20
|
20
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $2.08 |
||
|
21
|
21
09308-10C04-000
Rubber bush
|
09308-10C04-000 |
— | ||
|
22
|
22
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
22
|
22
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
23
|
23
01517-06203-000
Bolt
|
01517-06203-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
23
|
23
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
24
|
24
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
24
|
24
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
