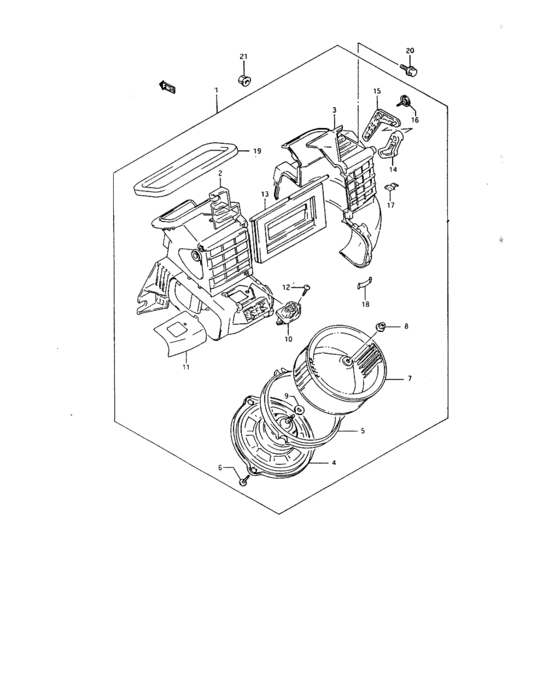

Vent. circuit (VENT. CIRCUIT) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74200-60A30-000
Ventilator assy
DENSO |
74200-60A30-000 |
— | ||
| replacement | |||||
|
1
|
1
74200-60A31-000 BLOWER ASSYDENSO |
74200-60A31-000 |
US $584.32 |
||
|
2
|
2
74211-60A10-000
Box
|
74211-60A10-000 |
— | ||
| replacement | |||||
|
2
|
2
74211-60A11-000 CASE,BLOWER |
74211-60A11-000 |
US $80.22 |
||
|
3
|
3
74212-60A10-000
Box
|
74212-60A10-000 |
— | ||
| replacements | |||||
|
3
|
3
74212-60A11-000 CASE,BLOWER |
74212-60A11-000 |
US $80.22 |
||
|
3
|
3
74151-70D01-000 CLAMP,CONTROL WIRE |
74151-70D01-000 |
US $4.12 |
||
|
4
|
4
74250-60A30-000
Engine assy
|
74250-60A30-000 |
— | ||
| replacement | |||||
|
4
|
4
74250-60A00-000 MOTOR ASSY |
74250-60A00-000 |
US $492.80 |
||
|
5
|
5
74261-60B00-000
Back packing
|
74261-60B00-000 |
— | ||
| replacement | |||||
|
5
|
5
74261-60A10-000 PACKING |
74261-60A10-000 |
US $9.28 |
||
|
6
|
6
74135-82000-000 SCREW,MOTOR |
74135-82000-000 |
US $1.73 |
||
|
7
|
7
74231-60A10-000 FAN,BLOWER |
74231-60A10-000 |
US $31.17 |
||
|
8
|
8
08316-26058-000
Nut 5mm
|
08316-26058-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-2005A-000 NUT |
08316-2005A-000 |
from US $0.80 |
||
|
9
|
9
74131-82000-000
ワッシャ,ファン
|
74131-82000-000 |
— | ||
| replacement | |||||
|
9
|
9
17112-82000-000 WASHER,FAN |
17112-82000-000 |
US $0.85 |
||
|
10
|
10
74290-60A30-000 RESISTOR,BLOWER |
74290-60A30-000 |
US $29.60 |
||
|
11
|
11
74215-60A10-000
PLATE,COVER
|
74215-60A10-000 |
— | ||
|
12
|
12
03112-04129-000
Screw
|
03112-04129-000 |
— | ||
| replacement | |||||
|
12
|
12
03111-0412A-000 SCREW |
03111-0412A-000 |
from US $3.04 |
||
|
13
|
13
74271-60A10-000
DAMPER
|
74271-60A10-000 |
— | ||
|
14
|
14
74281-60A10-000 PLATE |
74281-60A10-000 |
US $4.23 |
||
|
15
|
15
74282-60A10-000 LEVER,CONT |
74282-60A10-000 |
US $10.27 |
||
|
16
|
16
74183-82005-000 SCREW,LINK |
74183-82005-000 |
US $1.73 |
||
|
17
|
17
74151-85000-000 CLAMP,LOCK |
74151-85000-000 |
US $3.72 |
||
|
18
|
18
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
19
|
19
74262-60A00-000
パッキン
|
74262-60A00-000 |
— | ||
| replacement | |||||
|
19
|
19
74163-84101-000 PACKING |
74163-84101-000 |
from US $7.90 |
||
|
20
|
20
01514-06123-000
Vis
|
01514-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
20
|
20
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
21
|
21
08316-A1608-600
Ecrou
|
08316-A1608-600 |
— | ||
