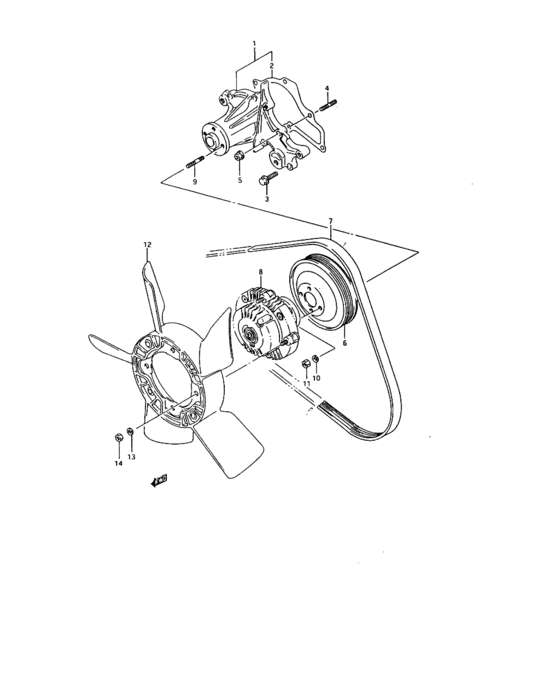

Water pump (WATER PUMP) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- grade
- JE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-60812-000
ポンプアッシ,ウォータ
|
17400-60812-000 |
— | ||
| replacements | |||||
|
1
|
1
17400-60815-000
PUMP, WATER
|
17400-60815-000 |
— | ||
|
1
|
1
17400-60816-000 Water Pump |
17400-60816-000 |
from US $109.96 |
||
|
1
|
1
17400-60A02-000
Water pump assy
TYPE 3 |
17400-60A02-000 |
— | ||
|
2
|
2
17431-A60A1-000
Pump gasket
|
17431-A60A1-000 |
— | ||
|
2
|
2
17431-A8200-000
Pump gasket
TYPE 1 |
17431-A8200-000 |
— | ||
|
3
|
3
09105-05066-000
Screw
|
09105-05066-000 |
— | ||
|
4
|
4
01421-06203-000
Stud bolt (l:20)(green)
|
01421-06203-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0620A-000 BOLT,STUD |
01421-0620A-000 |
from US $1.12 |
||
|
5
|
5
08316-A1606-300
Fastening nut
|
08316-A1606-300 |
— | ||
|
6
|
6
17511-61A00-000
PULLEY,WATER PUMP
|
17511-61A00-000 |
— | ||
|
7
|
7
17521-A60A0-000
Pump belt
|
17521-A60A0-000 |
— | ||
|
8
|
8
17120-60A00-000
クラッチアッシ,ファン
|
17120-60A00-000 |
— | ||
| replacements | |||||
|
8
|
8
17120-60A01-000 CLUTCH ASSY,FAN |
17120-60A01-000 |
US $196.88 |
||
|
8
|
8
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
8
|
8
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
9
|
9
01411-06203-000
New Genuine Part
|
01411-06203-000 |
— | ||
| replacement | |||||
|
9
|
9
01411-0620A-000 BOLT,STUD |
01411-0620A-000 |
US $0.91 |
||
|
10
|
10
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
11
|
11
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
11
|
11
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
11
|
11
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
12
|
12
17110-60A00-000 FAN,ENG COOLING |
17110-60A00-000 |
US $56.67 |
||
|
13
|
13
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
14
|
14
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
14
|
14
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
14
|
14
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
