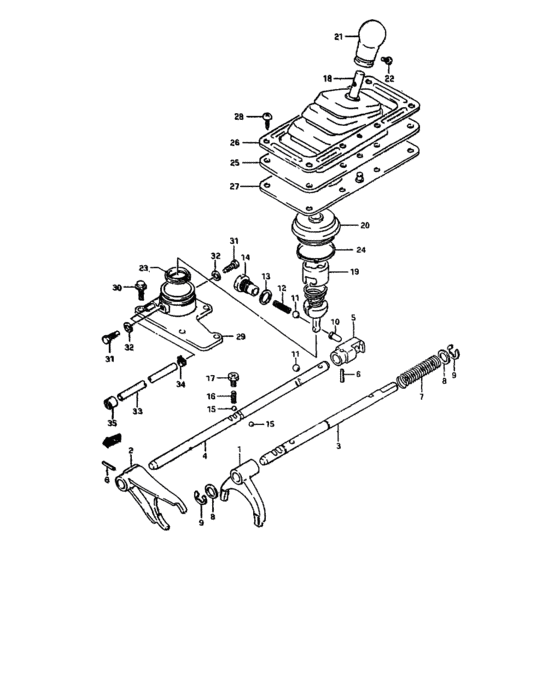

Transfer gear shifting (TRANSFER GEAR SHIFTING) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- 70 ANNIVERSARY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29311-60A02-000 FORK,T/F FRONT DRIVE SHIFT |
29311-60A02-000 |
US $99.57 |
||
|
2
|
2
29321-60A10-000
フォーク,トランスファリダクションシフト
|
29321-60A10-000 |
— | ||
| replacement | |||||
|
2
|
2
29321-60A11-000 FORK,T/F REDUCTION SHIFT |
29321-60A11-000 |
US $128 |
||
|
3
|
3
29331-60A00-000
シャフト,トランスファフロントドライブシフト
|
29331-60A00-000 |
— | ||
| replacements | |||||
|
3
|
3
29331-60A01-000 SHAFT,T/F FRONT DRIVE SHIFT |
29331-60A01-000 |
US $40.11 |
||
|
3
|
3
09383-10002-000 E RING |
09383-10002-000 |
US $18.40 |
||
|
4
|
4
29332-60A00-000
シャフト,トランスファリダクションシフト
|
29332-60A00-000 |
— | ||
| replacement | |||||
|
4
|
4
29332-60A10-000 SHAFT,T/F REDUCTION SHIFT |
29332-60A10-000 |
US $42.69 |
||
|
4
|
4
29332-60A10-000 SHAFT,T/F REDUCTION SHIFTJSAETA02C01120125~,JSAETA02V01120110~,JSAETD01V01100151~ |
29332-60A10-000 |
US $42.69 |
||
|
5
|
5
29339-60A00-000 YOKE,REDUCTION SHIFT SFT |
29339-60A00-000 |
US $33.86 |
||
|
6
|
6
09205-05012-000 PIN,SPRING(5X25) |
09205-05012-000 |
US $1.22 |
||
|
7
|
7
09440-19020-000 SPRING |
09440-19020-000 |
US $28.30 |
||
|
8
|
8
03211-14221-000
Washer
|
03211-14221-000 |
— | ||
|
9
|
9
08332-11126-000
E ring
|
08332-11126-000 |
— | ||
| replacement | |||||
|
9
|
9
08332-1112A-000 E RING |
08332-1112A-000 |
from US $0.96 |
||
|
10
|
10
29334-60A00-000
ピン,トランスファセレクトリターン
|
29334-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
29334-60A10-000 PIN,T/F SELECT RETURN |
29334-60A10-000 |
US $4.82 |
||
|
11
|
11
06111-12004-000 BALL |
06111-12004-000 |
from US $1.12 |
||
|
12
|
12
09440-10033-000 SPRING |
09440-10033-000 |
US $19.10 |
||
|
13
|
13
09160-18018-000 WASHER(18X24X2)Washer (18x24x2) |
09160-18018-000 |
US $0.96 |
||
|
14
|
14
09128-18001-000
Bolt,18x27
|
09128-18001-000 |
— | ||
| replacement | |||||
|
14
|
14
29416-65D00-000 Bolt |
29416-65D00-000 |
US $7.58 |
||
|
15
|
15
06111-10003-000 BALL |
06111-10003-000 |
from US $0.80 |
||
|
16
|
16
29415-60A00-000 SPRING,T/F GEAR SHF SFT LCTG<-09440-07055 |
29415-60A00-000 |
US $2.72 |
||
|
17
|
17
09128-10002-000 BOLT(10X9) |
09128-10002-000 |
from US $1.28 |
||
|
18
|
18
29300-60A13-000 LEVER ASSY,T/F GEAR SHF CONT2DR |
29300-60A13-000 |
US $127.70 |
||
|
18
|
18
29300-56B00-000 LEVER ASSY,T/F GEAR SHF CONT4DR:AT |
29300-56B00-000 |
US $99.36 |
||
|
19
|
19
29348-60A00-000
カバー,ギヤシフトレバーケース
|
29348-60A00-000 |
— | ||
|
20
|
20
29345-60A01-000
ブーツ,トランスファギヤシフトレバー,NO,1
|
29345-60A01-000 |
— | ||
|
21
|
21
29344-60A10-000
ノブ,トランスファコントロール
|
29344-60A10-000 |
— | ||
| replacement | |||||
|
21
|
21
29344-65D01-5PK KNOB,T/F GEAR SHF CONT |
29344-65D01-5PK |
US $45.60 |
||
|
22
|
22
02112-06125-000
Screw 6x12
|
02112-06125-000 |
— | ||
| replacements | |||||
|
22
|
22
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
22
|
22
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
23
|
23
29535-60A00-000 SEAT,T/F GEAR SHF LEVER |
29535-60A00-000 |
US $2.58 |
||
|
24
|
24
09401-57901-000 CLAMP |
09401-57901-000 |
US $7.84 |
||
|
25
|
25
29346-60A01-000
BOOT,T/F GR SHF LEVER NO.2
|
29346-60A01-000 |
— | ||
|
25
|
25
29346-56B01-000
ブーツ,トランスファギヤシフトレバー
AT,JSAETA01C00125362~,JSAETA01V00124738~,JSAETD01V00100001~ |
29346-56B01-000 |
— | ||
| replacement | |||||
|
25
|
25
29346-60A40-000 BOOT,T/F GR SHF LEVER NO.2AT,JSAETA01C00125362~,JSAETA01V00124738~,JSAETD01V00100001~ |
29346-60A40-000 |
US $60.80 |
||
|
26
|
26
29347-60A01-000 COVER,T/F LVR BOOT |
29347-60A01-000 |
US $68.82 |
||
|
26
|
26
29347-56B00-000 COVER,T/F LVR BOOTJSAETA01C00125362~,JSAETA01V00124738~,JSAETD01V00100001~ |
29347-56B00-000 |
US $16.80 |
||
|
27
|
27
29349-60A10-000
シート,トランスファギヤシフトレバー
JSAETA01C00162356~,JSAETA01V00143969~,JSAETD01V00108293~ |
29349-60A10-000 |
— | ||
| replacement | |||||
|
27
|
27
29349-60A11-000 SHEET,T/F GEAR SHIFT LEVERJSAETA01C00162356~,JSAETA01V00143969~,JSAETD01V00108293~ |
29349-60A11-000 |
US $27.36 |
||
|
28
|
28
03141-06163-000
Screw 6x16
|
03141-06163-000 |
— | ||
| replacement | |||||
|
28
|
28
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
28
|
28
03141-06203-000
Screw
JSAETA01C00125362~,JSAETA01V00124738~,JSAETD01V00100001~ |
03141-06203-000 |
— | ||
| replacement | |||||
|
28
|
28
03141-0620A-000 SCREWJSAETA01C00125362~,JSAETA01V00124738~,JSAETD01V00100001~ |
03141-0620A-000 |
US $0.80 |
||
|
29
|
29
29750-60A00-000 CASE,T/F GEAR SHIFT |
29750-60A00-000 |
US $85.38 |
||
|
30
|
30
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
30
|
30
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
31
|
31
09135-08006-000 BOLT(8X20) |
09135-08006-000 |
US $2.24 |
||
|
32
|
32
09162-08008-000 WASHER,LOCKLock washer |
09162-08008-000 |
from US $0.80 |
||
|
33
|
33
09354-70123-00B
ホース,7X12X2000
2DR |
09354-70123-00B |
— | ||
| replacements | |||||
|
33
|
33
09354-70113-00B
HOSE(7X11X2000)
2DR |
09354-70113-00B |
— | ||
|
33
|
33
09355-70125-00B HOSE(7X12X2000)Hose, fuel (conn to filter) (7x12x2000) 2DR |
09355-70125-00B |
from US $43.33 |
||
|
33
|
33
09355-70132-00B
Hose(7X11X2000)
2DR |
09355-70132-00B |
— | ||
|
33
|
33
09352-70113-008
Hose, breather
4DR:AT,JSAETD01V00114633~ |
09352-70113-008 |
— | ||
|
34
|
34
09401-11407-000
CLIP
2DR,~TA01C-100391,~TAD1V-100606 |
09401-11407-000 |
— | ||
| replacement | |||||
|
34
|
34
09401-11415-000 CLIP2DR,~TA01C-100391,~TAD1V-100606 |
09401-11415-000 |
from US $1.06 |
||
|
35
|
35
46543-60A00-000
プラグ,ブリーザ
4DR:AT |
46543-60A00-000 |
— | ||
| replacement | |||||
|
35
|
35
27991-65D01-000 PLUG,BREATHER4DR:AT |
27991-65D01-000 |
US $1.92 |
||
