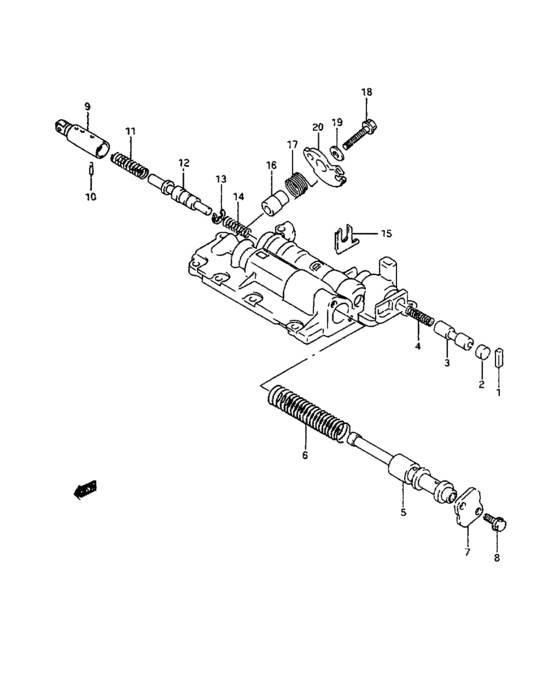

4at fr up valve body (AT:4 VALVE) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
26530-57B00-000
ボディアッシ,アッパバルブ,フロント
|
26530-57B00-000 |
— | ||
|
1
|
1
26574-57B00-000
Retainer, valve
|
26574-57B00-000 |
— | ||
|
2
|
2
29846-57B00-000
Plug, valve
|
29846-57B00-000 |
— | ||
|
3
|
3
26535-57B00-000
Valve, cutback
|
26535-57B00-000 |
— | ||
|
4
|
4
29633-57B00-000
Spring, valve
|
29633-57B00-000 |
— | ||
|
5
|
5
26536-57B00-000
Valve, secondary regulator
|
26536-57B00-000 |
— | ||
|
6
|
6
29632-57B00-000
Spring, valve
|
29632-57B00-000 |
— | ||
|
7
|
7
26527-57B00-000
Cover, front valve end
|
26527-57B00-000 |
— | ||
|
8
|
8
29982-57B00-000 Bolt |
29982-57B00-000 |
US $5.30 |
||
|
9
|
9
26550-57B00-000
Valve, kickdown
4DR |
26550-57B00-000 |
— | ||
|
9
|
9
26550-57B01-000
Valve, knckdown
4DR, JSAETD01V00131048~ |
26550-57B01-000 |
— | ||
|
10
|
10
29896-57B00-000
Pin, locating
|
29896-57B00-000 |
— | ||
|
11
|
11
29626-57B00-000
Spring, valve primary
|
29626-57B00-000 |
— | ||
|
12
|
12
26537-57B00-000
Valve, throttle
|
26537-57B00-000 |
— | ||
|
13
|
13
28947-57B00-000
Ring, valve
|
28947-57B00-000 |
— | ||
|
14
|
14
29631-57B00-000
Spring, valve
|
29631-57B00-000 |
— | ||
|
14
|
14
29623-57B00-000
Spring, valve
|
29623-57B00-000 |
— | ||
|
15
|
15
26528-57B00-000
Plate, keep
|
26528-57B00-000 |
— | ||
|
16
|
16
26529-57B00-000
Spacer, cam
|
26529-57B00-000 |
— | ||
|
17
|
17
29629-57B00-000
Spring, cam return
|
29629-57B00-000 |
— | ||
|
18
|
18
29971-57B00-000 Bolt |
29971-57B00-000 |
US $5.59 |
||
|
19
|
19
29943-57B00-000
Wahser, cam
|
29943-57B00-000 |
— | ||
|
20
|
20
26562-57B00-000
Cam,throttle valve
|
26562-57B00-000 |
— |
