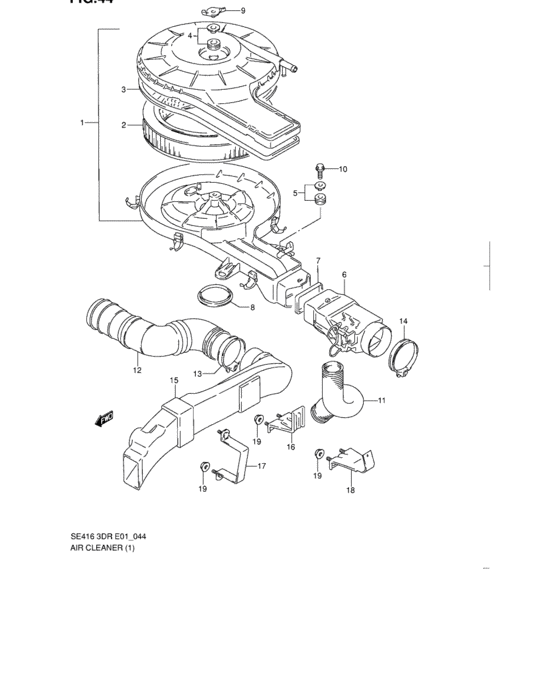

Air cleaner (MT:W/CARBURETOR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
- grade
- 70 ANNIVERSARY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-60A11-000
CLEANER ASSY,AIR
|
13700-60A11-000 |
— | ||
|
2
|
2
13780-60A00-000 ELEMENT,AIR CLEANER |
13780-60A00-000 |
US $52.99 |
||
|
3
|
3
13775-60A00-000
Gasket
|
13775-60A00-000 |
— | ||
|
4
|
4
13773-60AT0-000
GROMMET SET,AIR CLEANER
|
13773-60AT0-000 |
— | ||
|
5
|
5
13813-61AT0-000 GROMMET SET,AIR CLEANER |
13813-61AT0-000 |
US $6.56 |
||
|
6
|
6
13740-60A10-000
CASE ASSY,AIR VALVE
W/WARM AIR |
13740-60A10-000 |
— | ||
|
6
|
6
13740-60A20-000
CASE ASSY
N/WARM AIR |
13740-60A20-000 |
— | ||
|
7
|
7
13713-60A00-000
GASKET
|
13713-60A00-000 |
— | ||
|
8
|
8
13885-60A00-000
SEAL,AIR CLEANER CASE
|
13885-60A00-000 |
— | ||
|
9
|
9
09144-06006-000 NUT |
09144-06006-000 |
US $46 |
||
|
10
|
10
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
11
|
11
13841-60A00-000
Hose, warm air
W/WARM AIR |
13841-60A00-000 |
— | ||
| replacement | |||||
|
11
|
11
13845-77A00-000
HOSE,WARM AIR NO.2
W/WARM AIR |
13845-77A00-000 |
— | ||
|
12
|
12
13870-60A00-000
HOSE,COOL AIR
TYPE 1 |
13870-60A00-000 |
— | ||
|
12
|
12
13870-56B11-000
HOSE,COOL AIR
TYPE 2,TYPE 3 |
13870-56B11-000 |
— | ||
|
13
|
13
09402-68208-000 CLAMPTYPE 1 |
09402-68208-000 |
from US $6.72 |
||
|
13
|
13
13879-56B10-000
CLAMP,COOL AIR HOSE
TYPE 2,TYPE 3 |
13879-56B10-000 |
— | ||
|
14
|
14
09402-72203-000 CLAMPClamp (case side) |
09402-72203-000 |
from US $2.43 |
||
|
15
|
15
13820-60A10-000
Air suction case
TYPE 1 |
13820-60A10-000 |
— | ||
|
15
|
15
13820-60A11-000
CASE,AIR CLNR SUCTION
TYPE 1,TA01C-101446~,TA01V-104527~,JSAETA01C00131561~,JSAETA01V00122508~ |
13820-60A11-000 |
— | ||
|
15
|
15
13820-56B20-000
CASE,AIR CLNR SUCTION
TYPE 2,TYPE 3 |
13820-56B20-000 |
— | ||
|
16
|
16
13828-60A00-000
Clamp,suction case,no,1
TYPE 1 |
13828-60A00-000 |
— | ||
|
16
|
16
13829-56B01-000
CLAMP,SUCTION CASE NO.2
TYPE 2,~TA01C-112740,~TA01V-118029 |
13829-56B01-000 |
— | ||
|
17
|
17
13829-60A00-000
CLAMP,SUCTION CASE NO.2
TYPE 1 |
13829-60A00-000 |
— | ||
|
18
|
18
13829-56B01-000
CLAMP,SUCTION CASE NO.2
TYPE 2 |
13829-56B01-000 |
— | ||
|
19
|
19
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
