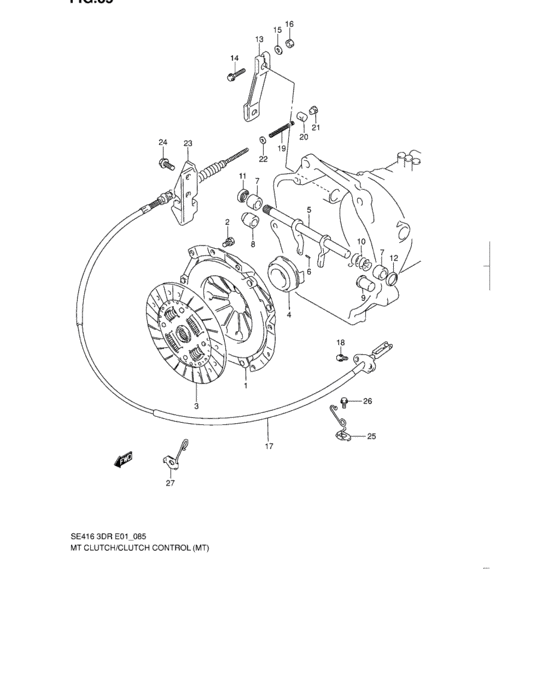

Mt clutch and clutch control (MT) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-57B10-000
Clutch cover assy
TYPE 1,TYPE 2,<-22100-60A01 |
22100-57B10-000 |
— | ||
|
2
|
2
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
2
|
2
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
3
|
3
22400-60AV0-000 DISC,CLUTCHTYPE 1,TYPE 2 |
22400-60AV0-000 |
US $166.70 |
||
|
3
|
3
22400-57B10-000
ディスク,クラッチ
TYPE 3 |
22400-57B10-000 |
— | ||
| replacement | |||||
|
3
|
3
22400-57810-000 CLUTCH DISC and COVER SETTYPE 3 |
22400-57810-000 |
US $344 |
||
|
4
|
4
23265-70C00-000 BEARING,CLUTCH RELEASE<-09269-33003 |
23265-70C00-000 |
from US $38.66 |
||
|
5
|
5
23260-60A00-000 SHAFT,CLUTCH RELEASE |
23260-60A00-000 |
US $76.80 |
||
|
6
|
6
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock |
09205-03019-000 |
from US $0.72 |
||
|
7
|
7
09300-16007-000 BUSH(16X26X17) |
09300-16007-000 |
US $60.70 |
||
|
8
|
8
23264-60A00-000 BUSH,CLUTCH RLSE SHAFT NO.1SEE NOTE |
23264-60A00-000 |
US $7.84 |
||
|
9
|
9
23264-60A10-000 BUSH,CLUTCH RLSE SHAFT NO.2SEE NOTE |
23264-60A10-000 |
US $4.71 |
||
|
10
|
10
23269-60A00-000 SPRING,CLUTCH RELEASE RETURN |
23269-60A00-000 |
US $2.72 |
||
|
11
|
11
09284-16003-000 SEAL,OIL(16X26X7) |
09284-16003-000 |
US $5.26 |
||
|
12
|
12
09241-26002-000 PLUG |
09241-26002-000 |
US $21 |
||
|
13
|
13
23266-60A00-000 ARM,CLUTCH RELEASE |
23266-60A00-000 |
US $46.40 |
||
|
14
|
14
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0840B-000 Bolt |
01550-0840B-000 |
US $1.12 |
||
|
14
|
14
01550-0840A-000 BOLT |
01550-0840A-000 |
from US $1.12 |
||
|
15
|
15
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
15
|
15
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
15
|
15
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
16
|
16
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
16
|
16
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
16
|
16
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
17
|
17
23710-60A11-000
CABLE ASSY,CLUTCH
2V:LHD,<-23710-60A10 |
23710-60A11-000 |
— | ||
|
17
|
17
23710-57B12-000 CABLE ASSY,CLUTCH4V:LHD |
23710-57B12-000 |
US $58.84 |
||
|
17
|
17
23710-60A01-000
CABLE ASSY,CLUTCH
2V:RHD,<-23710-60A00 |
23710-60A01-000 |
— | ||
|
17
|
17
23710-57B20-000 CABLE ASSY,CLUTCH4V:RHD |
23710-57B20-000 |
US $69.18 |
||
|
17
|
17
23710-60AA0-000
Cable assy, clutch
Germany:PRODUCT OF CANADA |
23710-60AA0-000 |
— | ||
| replacement | |||||
|
17
|
17
23710-60A11-000
CABLE ASSY,CLUTCH
Germany:PRODUCT OF CANADA |
23710-60A11-000 |
— | ||
|
18
|
18
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
18
|
18
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.80 |
||
|
19
|
19
09440-08026-000 SPRING |
09440-08026-000 |
from US $1.28 |
||
|
20
|
20
09209-13018-000 PIN(13X18) |
09209-13018-000 |
from US $1.92 |
||
|
21
|
21
09150-06014-000
Nut
|
09150-06014-000 |
— | ||
| replacement | |||||
|
21
|
21
09150-06010-000 NUT |
09150-06010-000 |
from US $1.82 |
||
|
22
|
22
08322-01063-000
Washer
|
08322-01063-000 |
— | ||
| replacement | |||||
|
22
|
22
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
23
|
23
23911-60A01-000
BRACKET,CLUTCH CABLE
TYPE 1:2V |
23911-60A01-000 |
— | ||
|
23
|
23
23911-56B00-000 BRACKET,CLUTCH CABLETYPE 2,TYPE 3:2V |
23911-56B00-000 |
US $21.60 |
||
|
23
|
23
23910-56B10-000 BRACKET,CLUTCH CABLE4V |
23910-56B10-000 |
US $23.92 |
||
|
24
|
24
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
25
|
25
23915-60A20-000
CLAMP,CLUTCH CABLE LEFT NO.1
LHD |
23915-60A20-000 |
— | ||
|
25
|
25
23915-57B01-000
クランプ,クラッチケーブル
RHD |
23915-57B01-000 |
— | ||
|
26
|
26
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
26
|
26
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
27
|
27
23916-60A00-000
CLAMP,CLUTCH CABLE LEFT,NO.2
LHD |
23916-60A00-000 |
— | ||
