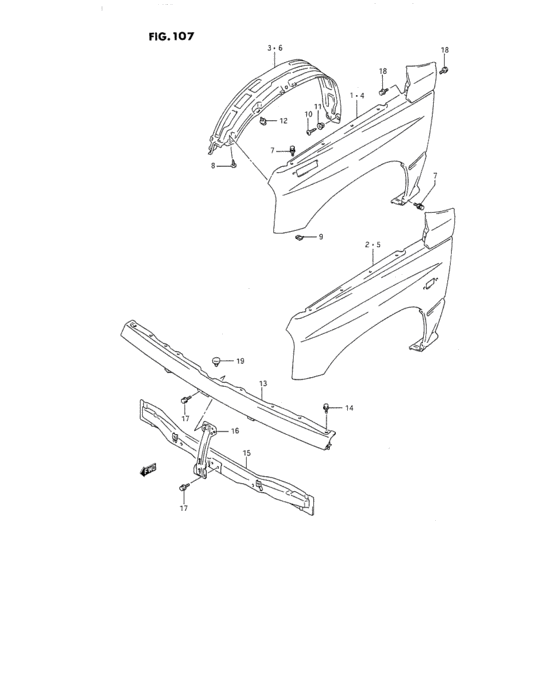

Front fender and lining (FRONT FENDER AND LINING) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58600-60810-000
パネルアッシ,フロントフェンダ,ライト
|
58600-60810-000 |
— | ||
| replacement | |||||
|
1
|
1
58600-60811-000 PANEL SET,FR FENDER,R |
58600-60811-000 |
US $752 |
||
|
2
|
2
58600-60A21-000 PANEL ASSY,FR FENDER,R,,,Finland,Norway,Sweden,Switzerland,,Belgium,1,2,5,6,Italy,Austria,,5,Iceland |
58600-60A21-000 |
US $331.20 |
||
|
3
|
3
72481-60A01-000 LINING,FR FENDER,R |
72481-60A01-000 |
US $161.60 |
||
|
4
|
4
58800-60810-000
パネルアッシ,フロントフェンダ,レフト
|
58800-60810-000 |
— | ||
| replacement | |||||
|
4
|
4
58800-60811-000 PANEL SET,FR FENDER,L |
58800-60811-000 |
US $782.40 |
||
|
5
|
5
58800-60A21-000 PANEL ASSY,FR FENDER,L,,,Finland,Norway,Sweden,Switzerland,,Belgium,1,2,5,6,Italy,Austria,,5,Iceland |
58800-60A21-000 |
US $331.20 |
||
|
6
|
6
72482-60A01-000 LINING,FR FENDER,L |
72482-60A01-000 |
US $161.60 |
||
|
7
|
7
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
03241-06103-000
New Genuine Part
|
03241-06103-000 |
— | ||
| replacement | |||||
|
8
|
8
03241-0610A-000 SCREW |
03241-0610A-000 |
US $0.76 |
||
|
9
|
9
09148-06013-000 NUT |
09148-06013-000 |
US $1.52 |
||
|
10
|
10
03242-06163-000
Screw
|
03242-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
11
|
11
09148-06007-000 NUT |
09148-06007-000 |
US $0.91 |
||
|
12
|
12
09409-07303-5ES CLIP(BLACK) |
09409-07303-5ES |
US $1.52 |
||
|
13
|
13
58110-56B01-000 PANEL,FRONT |
58110-56B01-000 |
US $198.72 |
||
|
14
|
14
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
15
|
15
58190-56B10-000 MEMBER,FR PANEL LWR |
58190-56B10-000 |
US $107.82 |
||
|
16
|
16
72411-60A01-000 MEMBER,FR PANEL CTR |
72411-60A01-000 |
US $64.80 |
||
|
17
|
17
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
17
|
17
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
18
|
18
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
19
|
19
09321-10023-000 CUSHION |
09321-10023-000 |
US $2.08 |
||
