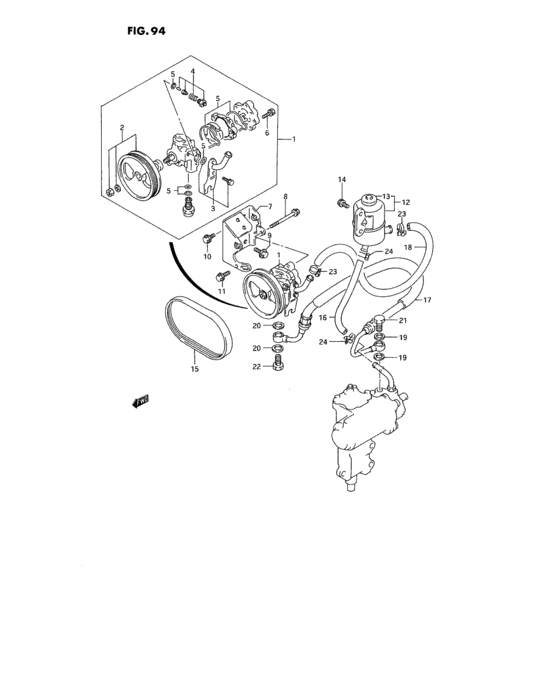

Ps oil pump (LHD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-56B10-000
ポンプアッシ,パワーステアリング
->49100-56B20,USED WITH 01550-08203 |
49100-56B10-000 |
— | ||
| replacements | |||||
|
1
|
1
49100-56B20-000 PUMP ASSY,POWER STEERING->49100-56B20,USED WITH 01550-08203 |
49100-56B20-000 |
US $1,034.88 |
||
|
1
|
1
01550-0820B-000 Bolt->49100-56B20,USED WITH 01550-08203 |
01550-0820B-000 |
from US $0.91 |
||
|
1
|
1
01550-0820A-000 BOLTBolt, funnel bracket ->49100-56B20,USED WITH 01550-08203 |
01550-0820A-000 |
from US $0.96 |
||
|
1
|
1
01550-08207-000 BOLT->49100-56B20,USED WITH 01550-08203 |
01550-08207-000 |
from US $0.96 |
||
|
1
|
1
01550-08203-000
Bolt
->49100-56B20,USED WITH 01550-08203 |
01550-08203-000 |
— | ||
|
1
|
1
49100-56B20-000 PUMP ASSY,POWER STEERINGTD01V-153307~,JSAETD01V00156350~ |
49100-56B20-000 |
US $1,034.88 |
||
|
2
|
2
49111-60A00-000
プーリセット
|
49111-60A00-000 |
— | ||
| replacement | |||||
|
2
|
2
49111-60A10-000
PULLEY SET
|
49111-60A10-000 |
— | ||
|
3
|
3
49112-56B00-000
Connector set
|
49112-56B00-000 |
— | ||
|
4
|
4
49113-86000-000 TERMINAL SET |
49113-86000-000 |
US $66.61 |
||
|
5
|
5
49114-56B00-000
SEAL SET
|
49114-56B00-000 |
— | ||
|
6
|
6
49115-60A00-000
BOLT SET
|
49115-60A00-000 |
— | ||
|
7
|
7
49120-56B00-000 BRACKET,PUMP |
49120-56B00-000 |
US $131.38 |
||
|
8
|
8
09103-08132-000
Bolt (8x100)
|
09103-08132-000 |
— | ||
| replacement | |||||
|
8
|
8
09103-08230-000 BOLT(8X100)Bolt (8x100) |
09103-08230-000 |
US $1.76 |
||
|
9
|
9
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
10
|
10
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
10
|
10
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
11
|
11
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
|
12
|
12
49140-56B00-000 TANK ASSY,POWER STEERING OIL |
49140-56B00-000 |
US $182.40 |
||
|
13
|
13
49141-60A00-000 CAP,TANK |
49141-60A00-000 |
US $47.20 |
||
|
14
|
14
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
14
|
14
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
15
|
15
49181-56B10-000 BELT,4PK810N/AIR CON |
49181-56B10-000 |
US $32.02 |
||
|
16
|
16
49211-60A70-000 HOSE,RETURN |
49211-60A70-000 |
US $24.80 |
||
|
17
|
17
49210-56B70-000
Hose, pressure
->49230-79,USED WITH 09408-00176 |
49210-56B70-000 |
— | ||
| replacements | |||||
|
17
|
17
49230-79E01-000
HOSE,PRESSURE
->49230-79,USED WITH 09408-00176 |
49230-79E01-000 |
— | ||
|
17
|
17
09408-00176-000 CLAMP->49230-79,USED WITH 09408-00176 |
09408-00176-000 |
US $2.59 |
||
|
17
|
17
49230-79E00-000
HOSE,PRESSURE
->49230-79,USED WITH 09408-00176 |
49230-79E00-000 |
— | ||
|
18
|
18
49214-56B00-000 HOSE,SUCTION |
49214-56B00-000 |
US $66.40 |
||
|
19
|
19
09168-14009-000
Washer
|
09168-14009-000 |
— | ||
| replacements | |||||
|
19
|
19
09168-14014-000 GASKET(14X18X1.5) |
09168-14014-000 |
from US $0.92 |
||
|
19
|
19
09168-14011-000 GASKET(14X20X1.5) |
09168-14011-000 |
from US $0.72 |
||
|
20
|
20
09168-16002-000 GASKET(16X22X2) |
09168-16002-000 |
from US $0.90 |
||
|
21
|
21
09360-14011-000 UNION |
09360-14011-000 |
US $13.44 |
||
|
22
|
22
09360-16003-000 UNION |
09360-16003-000 |
from US $5.94 |
||
|
23
|
23
09400-24301-000 CLAMP |
09400-24301-000 |
US $1.92 |
||
|
24
|
24
09400-18302-000 CLAMP |
09400-18302-000 |
US $23.20 |
||
