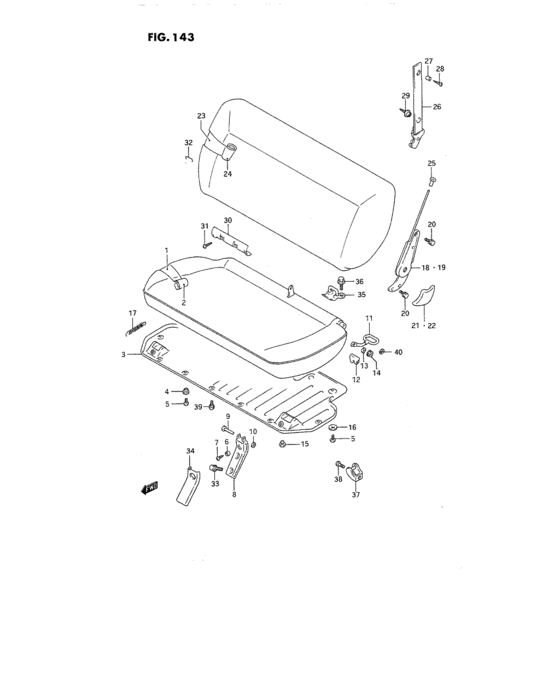

Rear seat (BENCH SEAT) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87105-56B51-000
Cushion sub assy,rr seat
TYPE 2 |
87105-56B51-000 |
— | ||
|
1
|
1
87105-56BA1-000
Cushion sub assy, seat
TYPE 3 |
87105-56BA1-000 |
— | ||
|
2
|
2
87180-56B20-G64
Trim comp,rear seat cushion
TYPE 2 |
87180-56B20-G64 |
— | ||
|
2
|
2
87180-56B60-B8G
Cover, cushion
TYPE 2:JX: |
87180-56B60-B8G |
— | ||
|
2
|
2
87180-56BA0-B8G
Cover, cushion
TYPE 3 |
87180-56BA0-B8G |
— | ||
|
3
|
3
87191-56B11-5PK
Board,rr seat cushion under
|
87191-56B11-5PK |
— | ||
|
4
|
4
87169-60A10-000
ワッシャ,リヤシートクッションボード
|
87169-60A10-000 |
— | ||
|
5
|
5
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
6
|
6
87196-83000-000 CUSHION |
87196-83000-000 |
US $3.09 |
||
|
7
|
7
03241-05103-000
Screw
|
03241-05103-000 |
— | ||
| replacement | |||||
|
7
|
7
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
8
|
8
87250-56B10-000 MALE,RR SEAT HNG |
87250-56B10-000 |
US $18.03 |
||
|
9
|
9
87259-56B10-000 PIN,REAR SEAT HINGE |
87259-56B10-000 |
US $1.76 |
||
|
10
|
10
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
| replacement | |||||
|
10
|
10
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
11
|
11
87281-56B10-000
HANDLE,REAR SEAT LOCK
|
87281-56B10-000 |
— | ||
|
12
|
12
87199-56B10-000
PROTECTOR,RR SEAT LOCK HANDLE
|
87199-56B10-000 |
— | ||
|
13
|
13
09164-06012-000 WASHER |
09164-06012-000 |
US $11 |
||
|
14
|
14
08316-10053-000
Nut
|
08316-10053-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.77 |
||
|
15
|
15
87292-65C10-000 CUSHION,REAR SEAT |
87292-65C10-000 |
US $1.88 |
||
|
16
|
16
87292-60A30-000
CUSHION,REAR SEAT STOPPER,NO.2
|
87292-60A30-000 |
— | ||
|
17
|
17
09443-14015-000 SPRING |
09443-14015-000 |
from US $4.57 |
||
|
18
|
18
87210-56B50-000
HINGE,RR SEAT BACK,R
|
87210-56B50-000 |
— | ||
|
19
|
19
87610-56B50-000
HINGE,RR SEAT BACK,L
|
87610-56B50-000 |
— | ||
|
20
|
20
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
20
|
20
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
21
|
21
87221-56B11-5PK COVER,RR SEAT RECLINING LWR,R |
87221-56B11-5PK |
US $8.28 |
||
|
22
|
22
87621-56B11-5PK COVER,RR SEAT RECLINING LWR,L |
87621-56B11-5PK |
US $8.28 |
||
|
23
|
23
87305-56B51-000
Back sub assy,rear seat
|
87305-56B51-000 |
— | ||
|
24
|
24
87380-56B50-H55
Trim,rr seat back
TYPE 2 |
87380-56B50-H55 |
— | ||
|
24
|
24
87380-56B50-B8G
Cover, back
TYPE 2:JX: |
87380-56B50-B8G |
— | ||
|
24
|
24
87380-56BA0-B8G
Cover, back
TYPE 3 |
87380-56BA0-B8G |
— | ||
|
25
|
25
87211-60A10-5PK KNOB,RR SEAT RECLINING |
87211-60A10-5PK |
US $9.53 |
||
|
26
|
26
87270-56B10-000
BAND,RR SEAT STOPPER
|
87270-56B10-000 |
— | ||
|
27
|
27
87327-83000-000
COLLAR,SEAT STOPPER BAND
|
87327-83000-000 |
— | ||
|
28
|
28
03242-05163-000
Screw
|
03242-05163-000 |
— | ||
| replacement | |||||
|
28
|
28
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
29
|
29
09410-00073-000 HOOK |
09410-00073-000 |
from US $2.24 |
||
|
30
|
30
87495-56B10-5PK
BOX,RR SEAT BELT KEEP
|
87495-56B10-5PK |
— | ||
|
31
|
31
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
31
|
31
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
32
|
32
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
33
|
33
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
33
|
33
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
34
|
34
87264-56B10-5PK COVER,RR SEAT HINGE MALE |
87264-56B10-5PK |
US $11.08 |
||
|
35
|
35
87890-56B10-000 STRIKER,RR SEAT LOCK |
87890-56B10-000 |
US $20.98 |
||
|
36
|
36
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
36
|
36
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
37
|
37
87831-56B11-000 HANGER,RR SEAT STOPPER BAND |
87831-56B11-000 |
US $10.05 |
||
|
38
|
38
02122-06203-000
Screw
|
02122-06203-000 |
— | ||
| replacements | |||||
|
38
|
38
02122-0620B-000 SCREW |
02122-0620B-000 |
from US $3.04 |
||
|
38
|
38
02122-0620A-000 SCREW |
02122-0620A-000 |
from US $0.77 |
||
|
39
|
39
87198-56B10-000
SCREW,REAR SEAT CUSHION BOARD
TD01V-100133~,JSAETD01V00106421 |
87198-56B10-000 |
— | ||
|
40
|
40
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
| replacement | |||||
|
40
|
40
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
