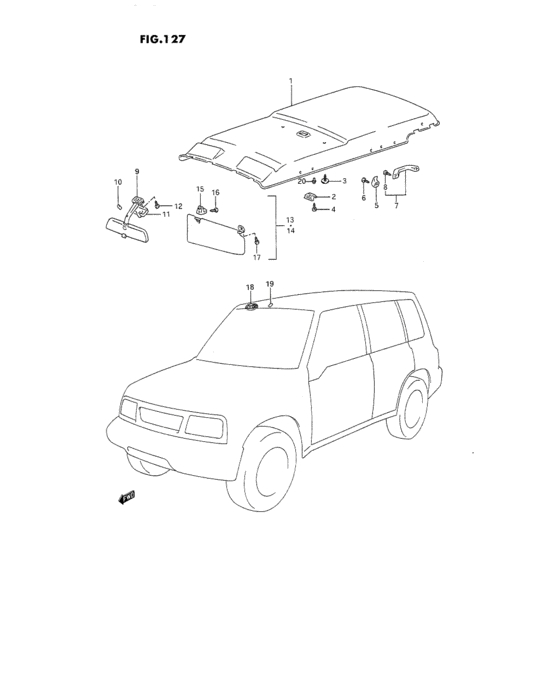

Roof lining (ROOF LINING) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78110-56B10-6NG
Headlining assy, roof
JX,->78110-56B11-6NG,USED WITH 78131-56B00-5EH (2PCS) |
78110-56B10-6NG |
— | ||
| replacements | |||||
|
1
|
1
78110-56B11-6NG
Headlining assy,roof(gray)
JX,->78110-56B11-6NG,USED WITH 78131-56B00-5EH (2PCS) |
78110-56B11-6NG |
— | ||
|
1
|
1
78131-56B00-6GS GARNISH,AIR OUTLETJX,->78110-56B11-6NG,USED WITH 78131-56B00-5EH (2PCS) |
78131-56B00-6GS |
US $5.04 |
||
|
1
|
1
78110-56B00-6NG
ヘッドライニングアッシ,ルーフ(グレー)
JLX,->78110-58B00-6NG,USED WITH 78131-56B00-5EH (2PCS) |
78110-56B00-6NG |
— | ||
| replacements | |||||
|
1
|
1
78110-58B00-6NG
Head lining assy,roof(gray)
JLX,->78110-58B00-6NG,USED WITH 78131-56B00-5EH (2PCS) |
78110-58B00-6NG |
— | ||
|
1
|
1
78131-56B00-6GS GARNISH,AIR OUTLETJLX,->78110-58B00-6NG,USED WITH 78131-56B00-5EH (2PCS) |
78131-56B00-6GS |
US $5.04 |
||
|
1
|
1
78110-56B30-6NG
ヘッドライニングアッシ,ルーフ(グレー)
JLX:W/SUN ROOF,->78110-56B31-6NG,USED WITH 78131-56B00-5EH (2PCS) |
78110-56B30-6NG |
— | ||
| replacement | |||||
|
1
|
1
78131-56B00-6GS GARNISH,AIR OUTLETJLX:W/SUN ROOF,->78110-56B31-6NG,USED WITH 78131-56B00-5EH (2PCS) |
78131-56B00-6GS |
US $5.04 |
||
|
2
|
2
78121-61A00-000 SPACER,ROOM LAMP |
78121-61A00-000 |
US $3.53 |
||
|
3
|
3
09409-06310-5EH CLIP(GRAY)JX |
09409-06310-5EH |
US $17.30 |
||
|
4
|
4
03241-05123-000
Screw
|
03241-05123-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
5
|
5
84491-61A10-5ES
HOOK,COAT HANGER
|
84491-61A10-5ES |
— | ||
| replacement | |||||
|
5
|
5
84491-61A10-5PK HOOK,LUGGAGE ROOM |
84491-61A10-5PK |
US $11.20 |
||
|
6
|
6
03111-06253-000
Screw
|
03111-06253-000 |
— | ||
| replacement | |||||
|
6
|
6
03111-0625A-000 SCREW |
03111-0625A-000 |
from US $0.80 |
||
|
7
|
7
76400-61831-5ES GRIP SET,ASSISTANT<-76400-61830-5ES |
76400-61831-5ES |
US $35.20 |
||
|
8
|
8
09125-06041-000 SCREW(6X20) |
09125-06041-000 |
US $1.76 |
||
|
9
|
9
84703-62A01-5PK
MIRROR ASSY,INS RR VIEW
<-84703-62A00-5PK |
84703-62A01-5PK |
— | ||
|
10
|
10
84782-60A00-000 RUBBER |
84782-60A00-000 |
US $2.24 |
||
|
11
|
11
84781-60A00-5PK COVER,INSIDE MIRROR STAYJX,JLX:W/SUN ROOF |
84781-60A00-5PK |
US $2.74 |
||
|
12
|
12
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
13
|
13
84800-60811-2WE
SUNSHADE SET, RH (GRAY)
JX,<-84800-60810-2WE |
84800-60811-2WE |
— | ||
| replacement | |||||
|
13
|
13
84800-60812-2WE
SUNVISOR ASSY,R
JX,<-84800-60810-2WE |
84800-60812-2WE |
— | ||
|
13
|
13
84800-60811-5UN
Sunfivor set, rh
JLX(N/MIRROR),<-84800-60810-5UN |
84800-60811-5UN |
— | ||
| replacement | |||||
|
13
|
13
84800-60812-5UN
SUNVISOR ASSY,R
JLX(N/MIRROR),<-84800-60810-5UN |
84800-60812-5UN |
— | ||
|
13
|
13
84800-60851-5UN
Sunshade set, rh
JLX(W/MIRROR) |
84800-60851-5UN |
— | ||
| replacement | |||||
|
13
|
13
84800-60852-5UN
SUNVISOR ASSY,R
JLX(W/MIRROR) |
84800-60852-5UN |
— | ||
|
14
|
14
84800-60821-2WE
SUNSHADE SET, LH (GRAY)
JX,<-84800-60820-2WE |
84800-60821-2WE |
— | ||
| replacement | |||||
|
14
|
14
84800-60822-2WE
SUNSHADE SET, LH (GRAY)
JX,<-84800-60820-2WE |
84800-60822-2WE |
— | ||
|
14
|
14
84800-60821-5UN
Sunshade set, lh
JLX(N/MIRROR),<-84800-60820-5UN |
84800-60821-5UN |
— | ||
| replacement | |||||
|
14
|
14
84800-60822-5UN
SUNVISOR ASSY,L
JLX(N/MIRROR),<-84800-60820-5UN |
84800-60822-5UN |
— | ||
|
14
|
14
84800-60841-5UN
SUNVISOR SET,L
JLX(W/MIRROR) |
84800-60841-5UN |
— | ||
|
14
|
14
84800-60892-5UN
Sunvisor set,lh
JLX(N/MIRROR) |
84800-60892-5UN |
— | ||
|
15
|
15
84851-60B00-5ES HOLDER,SUN VISOR<-84851-84000-5ES |
84851-60B00-5ES |
US $2.56 |
||
|
16
|
16
02122-05163-000
Screw, inner
|
02122-05163-000 |
— | ||
| replacement | |||||
|
16
|
16
02122-0516B-000 SCREW |
02122-0516B-000 |
from US $0.80 |
||
|
17
|
17
03212-05163-000
Screw
|
03212-05163-000 |
— | ||
| replacements | |||||
|
17
|
17
03212-0516B-000
SCREW
|
03212-0516B-000 |
— | ||
|
17
|
17
13765-48GV0-000 Screw |
13765-48GV0-000 |
from US $3.55 |
||
|
18
|
18
84891-84000-5ES
PLUG,SUNVISOR HOLE
|
84891-84000-5ES |
— | ||
|
19
|
19
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole CUT AS REQUIRED,<-84892-84000-0EE |
84761-50X50-000 |
US $6.72 |
||
|
20
|
20
09409-06319-000 CLIPJLX:W/SUN ROOF |
09409-06319-000 |
from US $1.67 |
||
