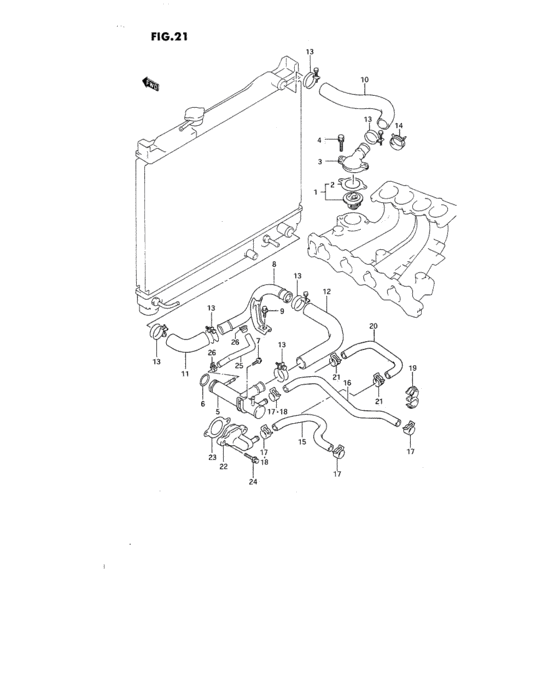

Water hose (WATER HOSE) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17600-60813-000
サーモスタット,ウォータ,82゜C
|
17600-60813-000 |
— | ||
| replacement | |||||
|
1
|
1
17600-60814-000 THERMOSTAT,WATER 82 DEG |
17600-60814-000 |
from US $24.71 |
||
|
1
|
1
17600-60823-000
サーモスタット,ウォータ,88゜C
Finland,Norway,Sweden |
17600-60823-000 |
— | ||
| replacement | |||||
|
1
|
1
17600-60824-000
THERMOSTAT,WATER 88 DEG
Finland,Norway,Sweden |
17600-60824-000 |
— | ||
|
2
|
2
17569-60A10-000 GASKET,THERMO CAP~TD01V-100285,~JSAETD01V00108242 |
17569-60A10-000 |
US $4.32 |
||
|
3
|
3
17561-57B00-000
CAP,WATER THERMOSTAT
|
17561-57B00-000 |
— | ||
|
3
|
3
17561-58B00-000 CAP,WATER THERMOSTATTD01V-151403~,JSAETD01V00151791~ |
17561-58B00-000 |
from US $20.25 |
||
|
4
|
4
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
5
|
5
17550-60X50-000 PIPE,WATER INLETTYPE 2 |
17550-60X50-000 |
US $154.40 |
||
|
5
|
5
17550-58B00-000 PIPE,WATER INLETTYPE 3 |
17550-58B00-000 |
from US $78.86 |
||
|
6
|
6
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
from US $0.63 |
||
|
7
|
7
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
7
|
7
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
8
|
8
17860-60A10-000 PIPE,RDTR OUTLET |
17860-60A10-000 |
from US $35.69 |
||
|
9
|
9
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
9
|
9
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
10
|
10
17841-60A00-000 HOSE,RADIATOR INLET |
17841-60A00-000 |
US $32.80 |
||
|
10
|
10
17841-58B10-000
ホース,ラジエータ,インレット
TD01V-151403~,JSAETD01V00151791~ |
17841-58B10-000 |
— | ||
| replacement | |||||
|
10
|
10
17841-60A00-000 HOSE,RADIATOR INLETTD01V-151403~,JSAETD01V00151791~ |
17841-60A00-000 |
US $32.80 |
||
|
11
|
11
17851-83101-000 HOSE,RADIATOR OUTLET NO.1<-17851-56B01 |
17851-83101-000 |
from US $13.07 |
||
|
12
|
12
17852-60A00-000 HOSE,RADIATOR OUTLET NO.2 |
17852-60A00-000 |
from US $21.53 |
||
|
13
|
13
09400-36312-000 CLAMP |
09400-36312-000 |
from US $1.53 |
||
|
14
|
14
09401-30403-000
クリップ
TD01V-103481~,JSAETD01V00127435~ |
09401-30403-000 |
— | ||
| replacement | |||||
|
14
|
14
09401-30405-000 CLIPTD01V-103481~,JSAETD01V00127435~ |
09401-30405-000 |
from US $3.04 |
||
|
15
|
15
17871-57B03-000 HOSE,HEATER INLETW/HEATER |
17871-57B03-000 |
from US $15.05 |
||
|
16
|
16
17872-60A01-000 HOSE,HEATER OUTLETW/HEATER |
17872-60A01-000 |
from US $19.91 |
||
|
17
|
17
09401-18404-000 CLIPW/HEATER |
09401-18404-000 |
from US $1.33 |
||
|
18
|
18
09401-18403-000 CLIPClip, heater hose W/HEATER,TD01V-100120~,JSAETD01V00105063~ |
09401-18403-000 |
US $1.92 |
||
|
19
|
19
09408-00117-000 CLAMPW/HEATER |
09408-00117-000 |
US $20.20 |
||
|
20
|
20
17873-57B01-000
HOSE,WATER CIRCULATION
N/HEATER |
17873-57B01-000 |
— | ||
|
21
|
21
09401-18404-000 CLIPN/HEATER |
09401-18404-000 |
from US $1.33 |
||
|
22
|
22
17570-57B00-000 CAP,WATER OUTLET |
17570-57B00-000 |
US $39.52 |
||
|
23
|
23
17699-60B02-000 GASKET,THERMO CASE |
17699-60B02-000 |
from US $3.94 |
||
|
24
|
24
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
24
|
24
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
25
|
25
17859-58B00-000
ホース,ウォータバイパス
TYPE 3 |
17859-58B00-000 |
— | ||
| replacements | |||||
|
25
|
25
17859-58B01-000 HOSE,WATER BYPASSTYPE 3 |
17859-58B01-000 |
US $15.04 |
||
|
25
|
25
09401-12410-000 CLIPClip, filter outlet TYPE 3 |
09401-12410-000 |
from US $1.19 |
||
|
26
|
26
09401-12404-000 CLIPClip TYPE 3 |
09401-12404-000 |
from US $1.52 |
||
