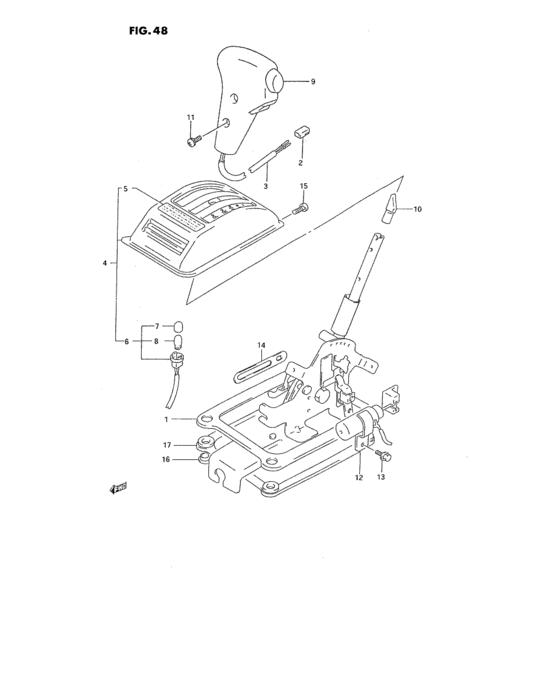

Select lever (AT:Saudi Arabia:TYPE 3) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-57B41-000
LEVER ASSY,SELECT
|
28110-57B41-000 |
— | ||
|
2
|
2
28117-64B60-000 COUPLER,SWITCH WIRE |
28117-64B60-000 |
US $1.47 |
||
|
3
|
3
28118-57B00-000
Tube, over drive harness
|
28118-57B00-000 |
— | ||
| replacement | |||||
|
3
|
3
28118-64B61-000 TUBE,SWITCH WIRE HARNESS |
28118-64B61-000 |
US $1.88 |
||
|
4
|
4
28150-57B30-000
INDICATOR ASSY,SELECT LEVER
|
28150-57B30-000 |
— | ||
|
5
|
5
28156-62B40-000 LABEL,BRAKE INTERLOCK |
28156-62B40-000 |
US $2.10 |
||
|
6
|
6
28180-61A00-000 LAMP ASSY,SELECT LEVER ILLUM |
28180-61A00-000 |
US $11.89 |
||
|
7
|
7
28182-61A00-000 FILTER,BULB |
28182-61A00-000 |
US $2.58 |
||
|
8
|
8
09471-12077-000 BULB(12V1.7W,T10,WB121) |
09471-12077-000 |
from US $1.52 |
||
|
9
|
9
28160-57B31-5PK
Knob, select lever
|
28160-57B31-5PK |
— | ||
| replacement | |||||
|
9
|
9
28160-57B31-000
KNOB ASSY,SEL LEVER
|
28160-57B31-000 |
— | ||
|
10
|
10
28164-57B00-000 GUIDE,DETENT RELEASE |
28164-57B00-000 |
US $7.43 |
||
|
11
|
11
09125-05117-000 SCREW(5X6)Screw (5x6) |
09125-05117-000 |
from US $0.96 |
||
|
12
|
12
38890-63A51-000
SOLENOID,SHIFT LOCK
|
38890-63A51-000 |
— | ||
|
13
|
13
01580-05083-000 Bolt |
01580-05083-000 |
US $13.20 |
||
|
14
|
14
09404-10205-000 CLAMP(L:82)Clamp, lead |
09404-10205-000 |
US $1.28 |
||
|
15
|
15
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
15
|
15
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
16
|
16
09169-08043-000 WASHER |
09169-08043-000 |
US $30.20 |
||
|
17
|
17
28176-61A00-000 GASKET,MANUAL SELECTOR ASSY |
28176-61A00-000 |
US $11.30 |
||
