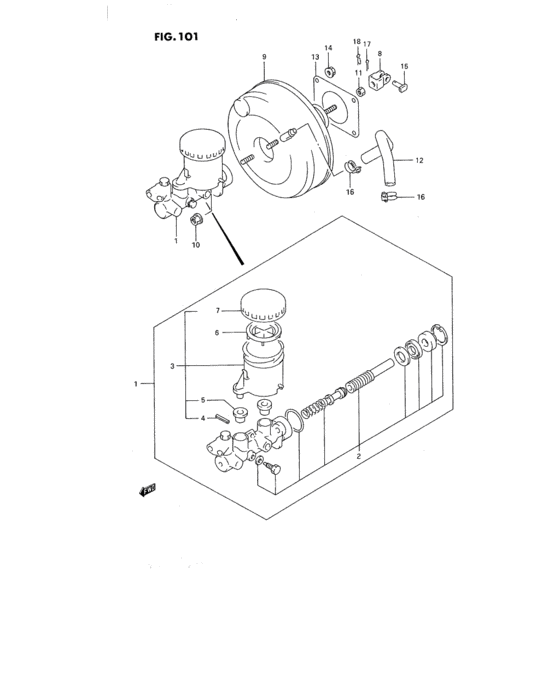

Brake master cyl (RHD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- transmission
- MT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-56B00-000
Cylinder assy,brake master
TYPE 2 |
51100-56B00-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-56B01-000
CYLINDER ASSY,BRAKE MASTER
TYPE 2 |
51100-56B01-000 |
— | ||
|
1
|
1
51100-56B20-000
Cylinder assy,brake master
TYPE 3 |
51100-56B20-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-56B21-000
CYLINDER ASSY,BRAKE MASTER
TYPE 3 |
51100-56B21-000 |
— | ||
|
2
|
2
51100-70841-000
Piston set,brake master
|
51100-70841-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-70842-000 PISTON SET,BRAKE MASTER |
51100-70842-000 |
from US $60 |
||
|
3
|
3
51200-56B00-000 RESERVOIR,MASTER CYLINDER |
51200-56B00-000 |
US $104.88 |
||
|
4
|
4
09205-05016-000 PIN,SPRING(5X32)<-51194-85520 |
09205-05016-000 |
US $1.12 |
||
|
5
|
5
51197-85520-000 GROMMET,RESERVOIR CONNECTOR |
51197-85520-000 |
US $2.72 |
||
|
6
|
6
51234-60A20-000 STRAINER,MASTER CYLINDER |
51234-60A20-000 |
US $7.68 |
||
|
7
|
7
51220-60A20-000 CAP,RESERVOIR |
51220-60A20-000 |
US $17.60 |
||
|
8
|
8
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD |
51182-77E00-000 |
US $9.12 |
||
|
9
|
9
51300-56B00-000
BOOSTER ASSY,BRAKE MASTER
|
51300-56B00-000 |
— | ||
|
10
|
10
09159-08075-000 NUT<-51313-60B00 |
09159-08075-000 |
US $0.91 |
||
|
11
|
11
09140-10019-000 NUT<-51349-82020 |
09140-10019-000 |
US $9.20 |
||
|
12
|
12
51020-57B20-000
HOSE,BRAKE VACUUM
|
51020-57B20-000 |
— | ||
|
13
|
13
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
14
|
14
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
14
|
14
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
15
|
15
09200-10018-000
ピン
|
09200-10018-000 |
— | ||
|
15
|
15
09200-10021-000 PINTD01V-102785~,JSAETD01V00123693~ |
09200-10021-000 |
US $1.28 |
||
|
16
|
16
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
17
|
17
04111-25208-000
25 x 20 cotter
|
04111-25208-000 |
— | ||
| replacement | |||||
|
17
|
17
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
18
|
18
09385-10006-000 PIN,SNAPPin TD01V-102785~,JSAETD01V00123693~ |
09385-10006-000 |
from US $1.60 |
||
