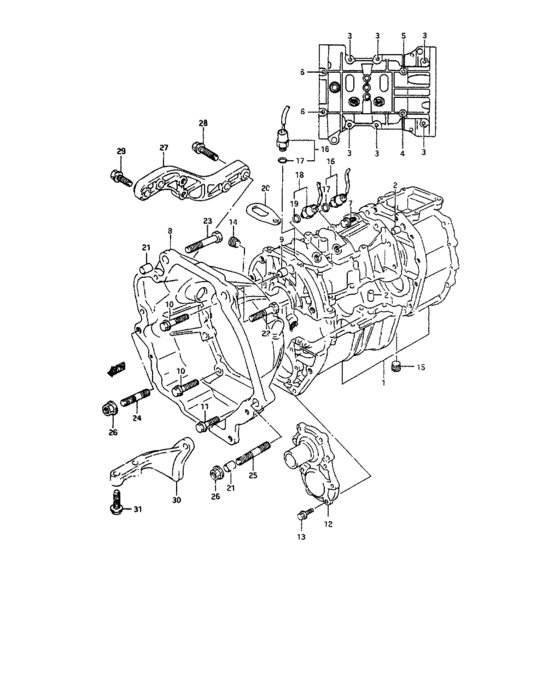

Mt tm case (MT) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- MT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-60A21-000
Case assy, transmission
|
24700-60A21-000 |
— | ||
|
1
|
1
24700-60A01-000
ケースアッシ,トランスミッション
JSAETA01C00141367~,JSAETA01V00129614~ |
24700-60A01-000 |
— | ||
| replacements | |||||
|
1
|
1
24700-60A81-000
CASE ASSY,T/M
JSAETA01C00141367~,JSAETA01V00129614~ |
24700-60A81-000 |
— | ||
|
1
|
1
09166-20013-000 WASHERJSAETA01C00141367~,JSAETA01V00129614~ |
09166-20013-000 |
US $44.90 |
||
|
1
|
1
09262-30097-000 BEARING(30X65X19)JSAETA01C00141367~,JSAETA01V00129614~ |
09262-30097-000 |
US $37.25 |
||
|
1
|
1
09390-65007-000 C RINGJSAETA01C00141367~,JSAETA01V00129614~ |
09390-65007-000 |
US $2.13 |
||
|
1
|
1
24551-65D00-000 SHAFT,T/M REVERSE GEARJSAETA01C00141367~,JSAETA01V00129614~ |
24551-65D00-000 |
US $75.81 |
||
|
2
|
2
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
3
|
3
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
3
|
3
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
4
|
4
01550-08953-000
Bolt
|
01550-08953-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0895B-000 BoltBolt, crankcase (8x95) |
01550-0895B-000 |
US $24.70 |
||
|
4
|
4
01550-0895A-000 BOLT |
01550-0895A-000 |
from US $1.82 |
||
|
5
|
5
09103-08134-000 BOLT(8X110)Bolt, collector no.1 |
09103-08134-000 |
from US $1.82 |
||
|
6
|
6
09103-08131-000 BOLT(8X120) |
09103-08131-000 |
US $2.24 |
||
|
7
|
7
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
7
|
7
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
8
|
8
21341-60A01-000
ハウジング,クラッチ
TYPE 1,->21341-56B01,USED WITH 09108-12007,09108-12006,,23264-60A00,AND 23264-60A10 |
21341-60A01-000 |
— | ||
| replacements | |||||
|
8
|
8
21341-77E00-000
HOUSING,CLUTCH
TYPE 1,->21341-56B01,USED WITH 09108-12007,09108-12006,,23264-60A00,AND 23264-60A10 |
21341-77E00-000 |
— | ||
|
8
|
8
09108-12006-000 BOLT,STUDTYPE 1,->21341-56B01,USED WITH 09108-12007,09108-12006,,23264-60A00,AND 23264-60A10 |
09108-12006-000 |
US $28 |
||
|
8
|
8
23264-60A00-000 BUSH,CLUTCH RLSE SHAFT NO.1TYPE 1,->21341-56B01,USED WITH 09108-12007,09108-12006,,23264-60A00,AND 23264-60A10 |
23264-60A00-000 |
US $7.84 |
||
|
8
|
8
23264-60A10-000 BUSH,CLUTCH RLSE SHAFT NO.2TYPE 1,->21341-56B01,USED WITH 09108-12007,09108-12006,,23264-60A00,AND 23264-60A10 |
23264-60A10-000 |
US $4.71 |
||
|
8
|
8
23264-60A20-000 BUSH,CLUTCH RLSE SHAFT NO.2TYPE 1,->21341-56B01,USED WITH 09108-12007,09108-12006,,23264-60A00,AND 23264-60A10 |
23264-60A20-000 |
US $9.60 |
||
|
8
|
8
09108-12012-000 BOLT,STUDTYPE 1,->21341-56B01,USED WITH 09108-12007,09108-12006,,23264-60A00,AND 23264-60A10 |
09108-12012-000 |
US $2.72 |
||
|
8
|
8
09108-12007-000
Bolt,stud
TYPE 1,->21341-56B01,USED WITH 09108-12007,09108-12006,,23264-60A00,AND 23264-60A10 |
09108-12007-000 |
— | ||
|
8
|
8
21341-56B00-000
ハウジング,クラッチ
TYPE 2,->21341-56B01,USED WITH 23264-60A00,AND 23264-60A10 |
21341-56B00-000 |
— | ||
| replacements | |||||
|
8
|
8
21341-77E00-000
HOUSING,CLUTCH
TYPE 2,->21341-56B01,USED WITH 23264-60A00,AND 23264-60A10 |
21341-77E00-000 |
— | ||
|
8
|
8
23264-60A00-000 BUSH,CLUTCH RLSE SHAFT NO.1TYPE 2,->21341-56B01,USED WITH 23264-60A00,AND 23264-60A10 |
23264-60A00-000 |
US $7.84 |
||
|
8
|
8
23264-60A10-000 BUSH,CLUTCH RLSE SHAFT NO.2TYPE 2,->21341-56B01,USED WITH 23264-60A00,AND 23264-60A10 |
23264-60A10-000 |
US $4.71 |
||
|
8
|
8
23264-60A20-000 BUSH,CLUTCH RLSE SHAFT NO.2TYPE 2,->21341-56B01,USED WITH 23264-60A00,AND 23264-60A10 |
23264-60A20-000 |
US $9.60 |
||
|
8
|
8
21341-56B01-000
ハウジング,クラッチ
JSAETA01V00145236~,JSAETD01V001112877~ |
21341-56B01-000 |
— | ||
| replacements | |||||
|
8
|
8
21341-77E00-000
HOUSING,CLUTCH
JSAETA01V00145236~,JSAETD01V001112877~ |
21341-77E00-000 |
— | ||
|
8
|
8
23264-60A20-000 BUSH,CLUTCH RLSE SHAFT NO.2JSAETA01V00145236~,JSAETD01V001112877~ |
23264-60A20-000 |
US $9.60 |
||
|
9
|
9
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
10
|
10
01550-10403-000
Bolt
|
01550-10403-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-1040B-000 BOLT |
01550-1040B-000 |
US $21.70 |
||
|
10
|
10
01550-1040A-000 BOLT |
01550-1040A-000 |
from US $1.12 |
||
|
11
|
11
01550-10503-000
Bolt
|
01550-10503-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1050B-000 BOLT |
01550-1050B-000 |
US $1.22 |
||
|
12
|
12
24741-60A01-000 RETAINER,INPUT SFT BEARING |
24741-60A01-000 |
US $109.60 |
||
|
13
|
13
09103-08245-000
ボルト,8X30
TYPE 1,TYPE 2 |
09103-08245-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-0830B-000 BoltTYPE 1,TYPE 2 |
01550-0830B-000 |
from US $1.06 |
||
|
13
|
13
09103-08153-000 BOLT(8X30)Bolt (8x30) TYPE 3 |
09103-08153-000 |
US $11.80 |
||
|
14
|
14
09246-16010-000
PLUG
|
09246-16010-000 |
— | ||
| replacement | |||||
|
14
|
14
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
US $4.86 |
||
|
15
|
15
09246-16010-000
PLUG
|
09246-16010-000 |
— | ||
| replacement | |||||
|
15
|
15
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
US $4.86 |
||
|
16
|
16
37610-83001-000 SWITCH ASSY,BACK UP LAMP2DR,~JSAETA01C00141366,~JSAETA01V00129613,<-37610-60A00 |
37610-83001-000 |
US $41.04 |
||
|
17
|
17
09280-11002-000 O RING(D:1.9,ID:11.4)2DR,~JSAETA01C00141366,~JSAETA01V00129613 |
09280-11002-000 |
US $1.52 |
||
|
18
|
18
37610-83001-000 SWITCH ASSY,BACK UP LAMP<-37610-60A00 |
37610-83001-000 |
US $41.04 |
||
|
19
|
19
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
US $1.52 |
||
|
20
|
20
11851-73001-000
フック,エンジン
|
11851-73001-000 |
— | ||
| replacement | |||||
|
20
|
20
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
21
|
21
09206-15001-000 PIN(12.4X15X17) |
09206-15001-000 |
US $1.92 |
||
|
22
|
22
01550-12503-000
Bolt
TYPE 1 |
01550-12503-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-1250A-000 BoltTYPE 1 |
01550-1250A-000 |
US $21.70 |
||
|
22
|
22
01550-12653-000
ボルト
TYPE 2 |
01550-12653-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-1265B-000 BoltTYPE 2 |
01550-1265B-000 |
US $1.76 |
||
|
23
|
23
01550-12603-000
Bolt
TYPE 1 |
01550-12603-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-1260A-000 BoltTYPE 1 |
01550-1260A-000 |
US $24.70 |
||
|
23
|
23
01550-12753-000
ボルト
TYPE 2 |
01550-12753-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-1275A-000 BOLTTYPE 2 |
01550-1275A-000 |
US $1.92 |
||
|
24
|
24
09108-12006-000 BOLT,STUD |
09108-12006-000 |
US $28 |
||
|
25
|
25
09108-12007-000
Bolt,stud
|
09108-12007-000 |
— | ||
|
26
|
26
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
26
|
26
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
27
|
27
24792-56B00-000
スチフナ,ケース,ライト
TYPE 2,->24790-56B10,USED WITH 01550-10203,(5PCS) |
24792-56B00-000 |
— | ||
| replacements | |||||
|
27
|
27
24790-56B10-000 STIFFENER,CASE,RTYPE 2,->24790-56B10,USED WITH 01550-10203,(5PCS) |
24790-56B10-000 |
US $56.80 |
||
|
27
|
27
01550-1020A-000 BOLTBolt, bal sprocket TYPE 2,->24790-56B10,USED WITH 01550-10203,(5PCS) |
01550-1020A-000 |
from US $0.96 |
||
|
27
|
27
01550-10203-000
Bolt
TYPE 2,->24790-56B10,USED WITH 01550-10203,(5PCS) |
01550-10203-000 |
— | ||
|
27
|
27
24790-56B10-000 STIFFENER,CASE,RJSAETA01C00170724~,JSAETA01V00150346~,JSAETD01V00131811~ |
24790-56B10-000 |
US $56.80 |
||
|
28
|
28
01550-10403-000
Bolt
TYPE 2 |
01550-10403-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-1040B-000 BOLTTYPE 2 |
01550-1040B-000 |
US $21.70 |
||
|
28
|
28
01550-1040A-000 BOLTTYPE 2 |
01550-1040A-000 |
from US $1.12 |
||
|
28
|
28
01550-10203-000
Bolt
JSAETA01C00170724~,JSAETA01V00150346~,JSAETD01V00131811~ |
01550-10203-000 |
— | ||
|
29
|
29
01550-10353-000
Bolt
TYPE 2 |
01550-10353-000 |
— | ||
| replacement | |||||
|
29
|
29
01550-1035A-000 BOLTBolt, fr fork upper TYPE 2 |
01550-1035A-000 |
from US $5.68 |
||
|
29
|
29
01550-10203-000
Bolt
JSAETA01C00170724~,JSAETA01V00150346~,JSAETD01V00131811~ |
01550-10203-000 |
— | ||
|
30
|
30
24791-56B00-000
スチフナ,ケース,レフト
TYPE 2 |
24791-56B00-000 |
— | ||
| replacement | |||||
|
30
|
30
24791-56B20-000 STIFFENER,BLOCK&T/M CASE,LTYPE 2 |
24791-56B20-000 |
US $91.26 |
||
|
31
|
31
01550-10353-000
Bolt
TYPE 2 |
01550-10353-000 |
— | ||
| replacement | |||||
|
31
|
31
01550-1035A-000 BOLTBolt, fr fork upper TYPE 2 |
01550-1035A-000 |
from US $5.68 |
||
