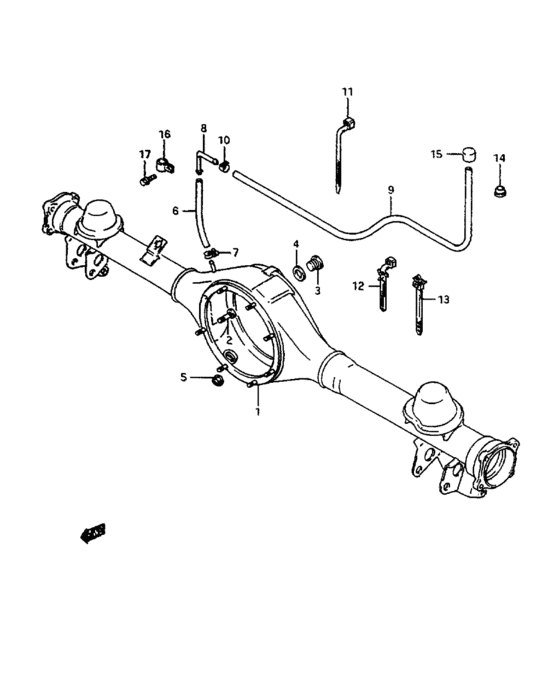

Rear axle housing (REAR AXLE HOUSING) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- 4AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46500-60A20-000 HOUSING ASSY,RR AXLE |
46500-60A20-000 |
US $908.16 |
||
|
2
|
2
09119-10057-000 Bolt |
09119-10057-000 |
US $42 |
||
|
3
|
3
09248-20003-000 PLUG |
09248-20003-000 |
from US $5.17 |
||
|
4
|
4
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) |
09168-20003-000 |
from US $2.28 |
||
|
5
|
5
09246-16010-000
PLUG
|
09246-16010-000 |
— | ||
| replacement | |||||
|
5
|
5
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
US $4.86 |
||
|
6
|
6
46520-60A00-000
ホース,ブリーザ
|
46520-60A00-000 |
— | ||
| replacement | |||||
|
6
|
6
46546-65D00-000 HOSE,BREATHER L:310 |
46546-65D00-000 |
US $10.49 |
||
|
7
|
7
09400-16304-000 CLAMP |
09400-16304-000 |
from US $4.96 |
||
|
8
|
8
09367-08003-000 UNION |
09367-08003-000 |
US $42.70 |
||
|
9
|
9
09352-70113-00B
HOSE(7X11X2000)
2DR,L:2000->1390,<-46544-60A01 |
09352-70113-00B |
— | ||
| replacement | |||||
|
9
|
9
09352-70119-00B Hose(7X11X2000)2DR,L:2000->1390,<-46544-60A01 |
09352-70119-00B |
from US $22.40 |
||
|
10
|
10
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
| replacement | |||||
|
10
|
10
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
10
|
10
09401-11410-000
(ca) clip
JSAETA01C00165364~,JSAETA01V00144228~,JSAETD01V00110028~ |
09401-11410-000 |
— | ||
| replacement | |||||
|
10
|
10
09401-11413-000 CLIPJSAETA01C00165364~,JSAETA01V00144228~,JSAETD01V00110028~ |
09401-11413-000 |
from US $0.96 |
||
|
11
|
11
09407-18403-000
Clamp, switch wire
|
09407-18403-000 |
— | ||
| replacement | |||||
|
11
|
11
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
12
|
12
09407-17401-000
Clamp (l:150)
2DR |
09407-17401-000 |
— | ||
| replacement | |||||
|
12
|
12
09407-17402-000 CLAMP2DR |
09407-17402-000 |
from US $1.98 |
||
|
13
|
13
09407-17401-000
Clamp (l:150)
4DR |
09407-17401-000 |
— | ||
| replacement | |||||
|
13
|
13
09407-17402-000 CLAMP4DR |
09407-17402-000 |
from US $1.98 |
||
|
14
|
14
09308-12010-000
グロメット
|
09308-12010-000 |
— | ||
|
14
|
14
09308-11009-000 GROMMETJSAETA01C00165364~,JSAETA01V00144228~,JSAETD01V00110028~ |
09308-11009-000 |
US $28 |
||
|
15
|
15
46543-60A00-000
プラグ,ブリーザ
|
46543-60A00-000 |
— | ||
| replacement | |||||
|
15
|
15
27991-65D01-000 PLUG,BREATHER |
27991-65D01-000 |
US $1.92 |
||
|
16
|
16
09403-14408-000 CLAMP |
09403-14408-000 |
from US $4.62 |
||
|
17
|
17
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
17
|
17
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
