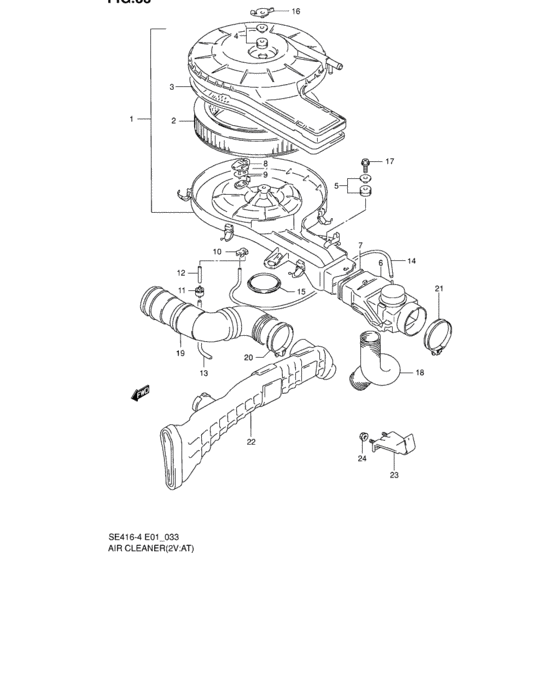

Air cleaner (2 VALVE:W/CARBURETOR:MT:,EC,Saudi Arabia & AT) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- MT
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-63X50-000
CLEANER ASSY,AIR
|
13700-63X50-000 |
— | ||
|
2
|
2
13780-60A00-000 ELEMENT,AIR CLEANER |
13780-60A00-000 |
US $52.99 |
||
|
3
|
3
13775-60A00-000
Gasket
|
13775-60A00-000 |
— | ||
|
4
|
4
13773-60AT0-000
GROMMET SET,AIR CLEANER
|
13773-60AT0-000 |
— | ||
|
5
|
5
13813-61AT0-000 GROMMET SET,AIR CLEANER |
13813-61AT0-000 |
US $6.56 |
||
|
6
|
6
13740-60A00-000
CASE ASSY,AIR VALVE
|
13740-60A00-000 |
— | ||
|
7
|
7
13713-60A00-000
GASKET
|
13713-60A00-000 |
— | ||
|
8
|
8
13749-82111-000 SENSOR ASSY,THERMO |
13749-82111-000 |
US $75.25 |
||
|
9
|
9
13818-82000-000
GASKET,THERMO SENSOR
|
13818-82000-000 |
— | ||
|
10
|
10
13819-83000-000
Clamp,thermo sensor
|
13819-83000-000 |
— | ||
|
11
|
11
13715-82110-000
Valve,check
|
13715-82110-000 |
— | ||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
L:601->50 |
09355-35754-601 |
— | ||
| replacement | |||||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601)L:601->50 |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
L:601->130 |
09355-35754-601 |
— | ||
| replacement | |||||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601)L:601->130 |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
09355-35754-00B
HOSE(3.5X7.5X2000)
L:2000->760 |
09355-35754-00B |
— | ||
| replacement | |||||
|
14
|
14
09355-35006-00B Hose(3.5X7.5X2000)L:2000->760 |
09355-35006-00B |
US $28.80 |
||
|
15
|
15
13885-60A00-000
SEAL,AIR CLEANER CASE
|
13885-60A00-000 |
— | ||
|
16
|
16
09144-06006-000 NUT |
09144-06006-000 |
US $46 |
||
|
17
|
17
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
17
|
17
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
18
|
18
13845-77A00-000
HOSE,WARM AIR NO.2
L:310->240 |
13845-77A00-000 |
— | ||
|
19
|
19
13870-56B11-000
HOSE,COOL AIR
|
13870-56B11-000 |
— | ||
|
20
|
20
13879-56B10-000
CLAMP,COOL AIR HOSE
|
13879-56B10-000 |
— | ||
|
21
|
21
09402-72203-000 CLAMPClamp (case side) |
09402-72203-000 |
from US $2.43 |
||
|
22
|
22
13820-56B20-000
CASE,AIR CLNR SUCTION
|
13820-56B20-000 |
— | ||
|
23
|
23
13829-56B01-000
CLAMP,SUCTION CASE NO.2
|
13829-56B01-000 |
— | ||
|
24
|
24
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
