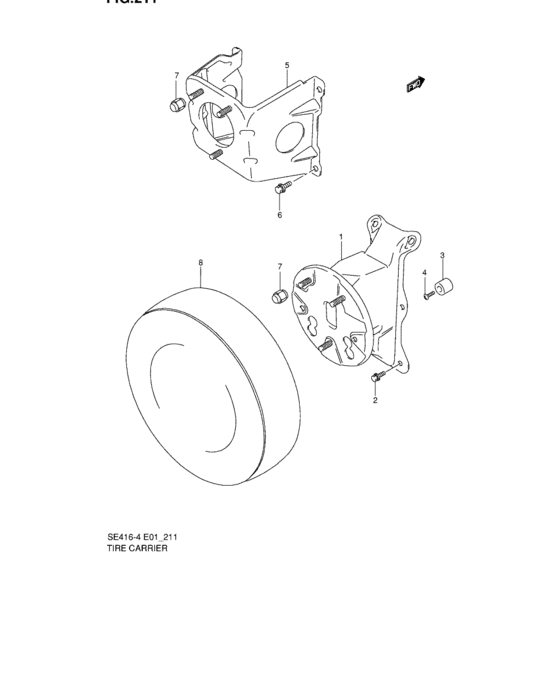

Tire carrier (TIRE CARRIER) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- 3AT
- grade
- SPECIAL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72810-63A00-000
CARRIER,SPARE TIRE
|
72810-63A00-000 |
— | ||
|
2
|
2
01580-08203-000
Bolt, rear
|
01580-08203-000 |
— | ||
| replacement | |||||
|
2
|
2
01580-0820A-000 Bolt |
01580-0820A-000 |
from US $0.91 |
||
|
3
|
3
09320-06018-000 CUSHION |
09320-06018-000 |
US $4 |
||
|
4
|
4
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
4
|
4
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
4
|
4
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
5
|
5
83960-61A00-000
CARRIER,SPARE TIRE
|
83960-61A00-000 |
— | ||
|
6
|
6
01580-10253-000
ボルト
|
01580-10253-000 |
— | ||
| replacement | |||||
|
6
|
6
01580-1025A-000 Bolt |
01580-1025A-000 |
US $19.50 |
||
|
7
|
7
09159-12024-000 NUT |
09159-12024-000 |
US $2.40 |
||
|
8
|
8
72820-60A11-2UN
COVER,SPARE TIRE
,Switzerland,2,Italy,Austria,Israel |
72820-60A11-2UN |
— | ||
