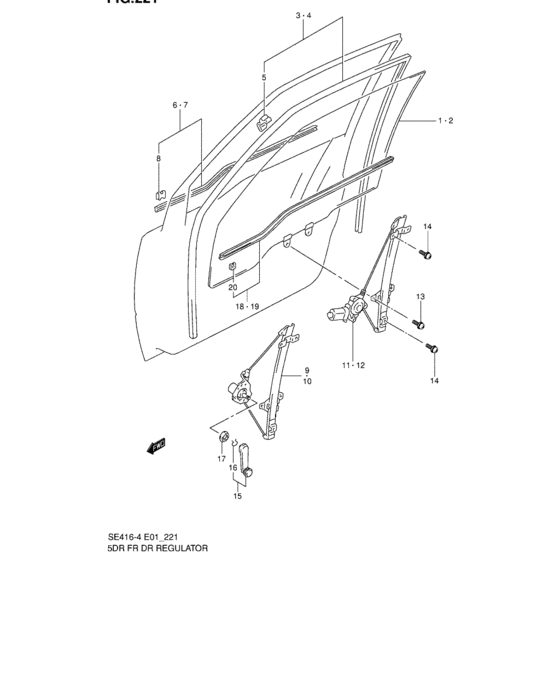

5dr fr dr regulator (5DR FR DR REGULATOR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- SPECIAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84531-56B30-000 GLASS,FR DR WDO,R |
84531-56B30-000 |
US $200.56 |
||
|
1
|
1
84531-56B20-000
Glass,front door window,r
|
84531-56B20-000 |
— | ||
|
2
|
2
84536-56B30-000 GLASS,FR DR WDO,L |
84536-56B30-000 |
US $200.56 |
||
|
2
|
2
84536-56B20-000
Glass,front door window,l
|
84536-56B20-000 |
— | ||
|
3
|
3
83660-56B00-000 RUN,FR DOOR GLASS,R |
83660-56B00-000 |
US $70.66 |
||
|
4
|
4
83680-56B00-000 RUN,FR DOOR GLASS,L |
83680-56B00-000 |
US $76.77 |
||
|
5
|
5
83662-60A00-000 GUIDE,DR WINDOW GLASS |
83662-60A00-000 |
US $13.60 |
||
|
6
|
6
83810-56B00-000 WEATHERSTRIP,FR DR OUT,R |
83810-56B00-000 |
US $79.81 |
||
|
7
|
7
83820-56B00-000 WEATHERSTRIP,FR DR OUT,L |
83820-56B00-000 |
US $79.81 |
||
|
8
|
8
83812-60A00-000 CLIP |
83812-60A00-000 |
US $1.60 |
||
|
9
|
9
83410-56B00-000 REGULATOR ASSY,FR WINDOW,RJX |
83410-56B00-000 |
US $131.38 |
||
|
10
|
10
83440-56B00-000
REGULATOR ASSY,FR WINDOW,L
JX |
83440-56B00-000 |
— | ||
|
11
|
11
83401-57B00-000 REGULATOR ASSY,FR WINDOW,RJLX |
83401-57B00-000 |
US $443.52 |
||
|
12
|
12
83402-57B00-000 REGULATOR ASSY,FR WINDOW,LJLX |
83402-57B00-000 |
US $443.52 |
||
|
13
|
13
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
14
|
14
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
15
|
15
82960-82001-5ES HANDLE,DR WINDOW RGLTRJX:TYPE 4 |
82960-82001-5ES |
US $25.60 |
||
|
15
|
15
82960-82101-T01 HANDLE,DOOR WINDOW RGLTRJX:TYPE 5 |
82960-82101-T01 |
US $14.75 |
||
|
16
|
16
78463-78000-000 SNAPJX |
78463-78000-000 |
US $1.60 |
||
|
17
|
17
82972-82101-5ES ESCUTCHEON,RGLTR HDLJX:TYPE 4 |
82972-82101-5ES |
US $2.24 |
||
|
17
|
17
82972-82101-T01 ESCUTCHEON,WINDOW RGLTR HDLJX:TYPE 5 |
82972-82101-T01 |
US $2.36 |
||
|
18
|
18
83850-56B00-000
WEATHERSTRIP,FR DR INR,R
JX |
83850-56B00-000 |
— | ||
|
19
|
19
83860-56B00-000
WEATHERSTRIP,FR DR INR,L
JX |
83860-56B00-000 |
— | ||
|
20
|
20
83812-60A00-000 CLIPJX |
83812-60A00-000 |
US $1.60 |
||
