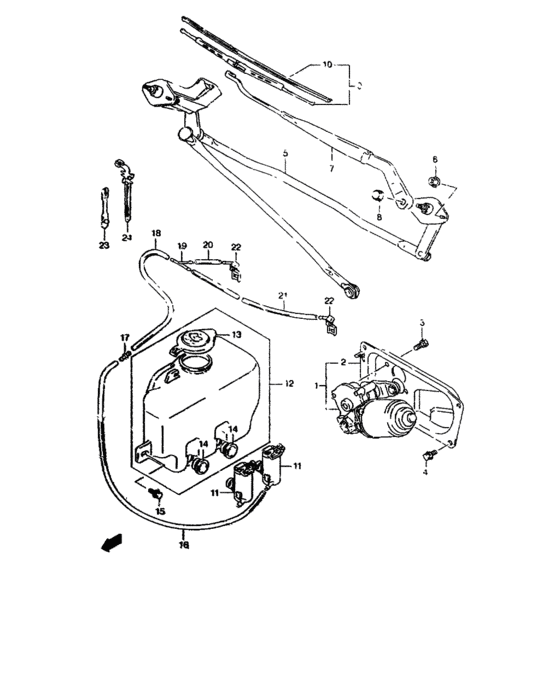

A fr windshield wiper (LHD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-60A40-000 MOTOR&BRACKET ASSY,WIPER |
38101-60A40-000 |
US $467.38 |
||
|
2
|
2
38252-60A00-000 BRACKET,WIPER |
38252-60A00-000 |
US $22.40 |
||
|
3
|
3
01570-06103-000
Bolt
|
01570-06103-000 |
— | ||
| replacement | |||||
|
3
|
3
01570-0610A-000 Bolt |
01570-0610A-000 |
from US $2.48 |
||
|
4
|
4
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
4
|
4
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
5
|
5
38102-60A10-000
LINK ASSY,WIPER
|
38102-60A10-000 |
— | ||
|
6
|
6
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
39310-66B00-000
Arm assy, wiper
|
39310-66B00-000 |
— | ||
|
8
|
8
08313-20C83-000
Nut
|
08313-20C83-000 |
— | ||
|
9
|
9
38340-50F00-000 BLADE ASSY,WIPER,R |
38340-50F00-000 |
US $28.34 |
||
|
10
|
10
38346-56B00-000
BLADE
|
38346-56B00-000 |
— | ||
|
11
|
11
38410-66113-000 PUMP ASSY,WASHERPump assy, washer |
38410-66113-000 |
US $59.20 |
||
|
12
|
12
38450-60A00-000 TANK ASSY,WASHER |
38450-60A00-000 |
US $70.40 |
||
|
12
|
12
38450-61A00-000 TANK ASSY,WASHER |
38450-61A00-000 |
US $73.60 |
||
|
13
|
13
38452-80000-000
キャップ,ウォッシャタンク
|
38452-80000-000 |
— | ||
| replacement | |||||
|
13
|
13
38452-65D00-000 CAP,WASHER TANK |
38452-65D00-000 |
US $1.92 |
||
|
14
|
14
38453-75000-000 GROMMET |
38453-75000-000 |
US $1.60 |
||
|
15
|
15
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
15
|
15
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
16
|
16
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) |
38491-61A00-000 |
US $5.12 |
||
|
17
|
17
38496-61A00-000 VALVE,CHECK |
38496-61A00-000 |
US $2.08 |
||
|
18
|
18
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) |
38491-61A00-000 |
US $5.12 |
||
|
19
|
19
38496-71311-000 CONNECTOR,THREE WAY |
38496-71311-000 |
US $4.16 |
||
|
20
|
20
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) |
38491-61A00-000 |
US $5.12 |
||
|
21
|
21
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) |
38491-61A00-000 |
US $5.12 |
||
|
22
|
22
38480-60A01-000 NOZZLE,WASHER |
38480-60A01-000 |
US $24.80 |
||
|
23
|
23
09407-05400-000
Clamp, washer hose
|
09407-05400-000 |
— | ||
|
24
|
24
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
