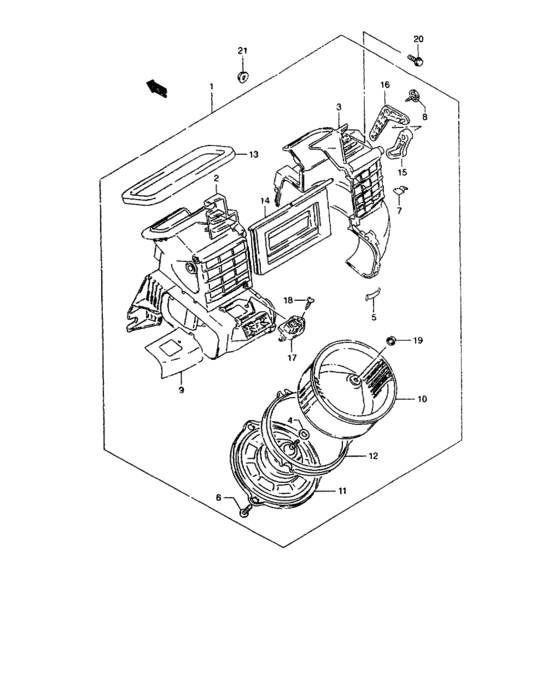

B heater blower (LHD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74200-60A31-000 BLOWER ASSY |
74200-60A31-000 |
US $584.32 |
||
|
2
|
2
74211-60A11-000 CASE,BLOWER |
74211-60A11-000 |
US $80.22 |
||
|
3
|
3
74212-60A11-000 CASE,BLOWER |
74212-60A11-000 |
US $80.22 |
||
|
4
|
4
17112-82000-000 WASHER,FAN |
17112-82000-000 |
US $0.85 |
||
|
5
|
5
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
6
|
6
74135-82000-000 SCREW,MOTOR |
74135-82000-000 |
US $1.73 |
||
|
7
|
7
74151-70D01-000 CLAMP,CONTROL WIRE |
74151-70D01-000 |
US $4.12 |
||
|
8
|
8
74183-82005-000 SCREW,LINK |
74183-82005-000 |
US $1.73 |
||
|
9
|
9
74215-60A10-000
PLATE,COVER
|
74215-60A10-000 |
— | ||
|
10
|
10
74231-60A10-000 FAN,BLOWER |
74231-60A10-000 |
US $31.17 |
||
|
11
|
11
74250-60A00-000 MOTOR ASSY |
74250-60A00-000 |
US $492.80 |
||
|
12
|
12
74261-60A10-000 PACKING |
74261-60A10-000 |
US $9.28 |
||
|
13
|
13
74262-60A00-000
パッキン
|
74262-60A00-000 |
— | ||
| replacement | |||||
|
13
|
13
74163-84101-000 PACKING |
74163-84101-000 |
from US $7.90 |
||
|
14
|
14
74271-60A10-000
DAMPER
|
74271-60A10-000 |
— | ||
|
15
|
15
74281-60A10-000 PLATE |
74281-60A10-000 |
US $4.23 |
||
|
16
|
16
74282-60A10-000 LEVER,CONT |
74282-60A10-000 |
US $10.27 |
||
|
17
|
17
74290-60A20-000
Resistor
|
74290-60A20-000 |
— | ||
| replacement | |||||
|
17
|
17
74290-60A30-000 RESISTOR,BLOWER |
74290-60A30-000 |
US $29.60 |
||
|
18
|
18
03112-04120-000
Screw
|
03112-04120-000 |
— | ||
|
19
|
19
08316-10053-000
Nut
|
08316-10053-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.80 |
||
|
20
|
20
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
20
|
20
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
21
|
21
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
