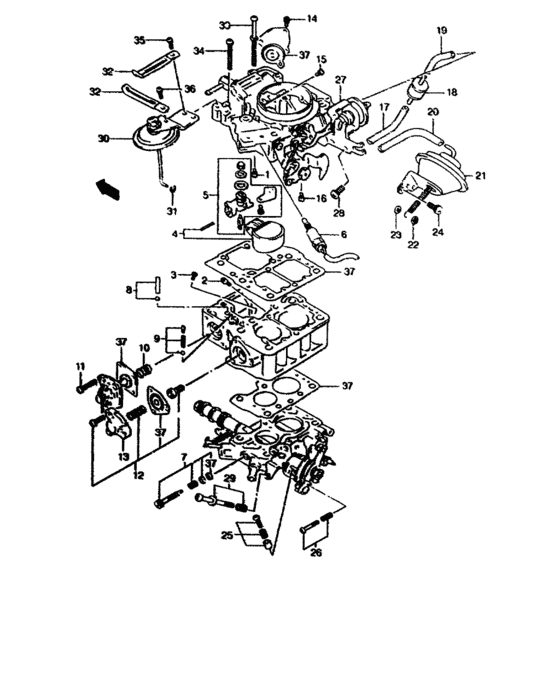

Carburetor (MT) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- MT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
13200-60A03-000
CARBURETOR ASSY
|
13200-60A03-000 |
— | ||
|
1
|
1
13259-60A00-000 JET,PILOT 51.3 |
13259-60A00-000 |
US $8.68 |
||
|
2
|
2
09491-34007-000 JET,MAIN(170)Jet, main (170) |
09491-34007-000 |
from US $7.88 |
||
|
3
|
3
13258-60A00-000
JET,MAIN 98.8
|
13258-60A00-000 |
— | ||
|
4
|
4
13250-840T0-000
FLOAT SET
|
13250-840T0-000 |
— | ||
|
5
|
5
13370-824T0-000
VALVE SET,NEEDLE
|
13370-824T0-000 |
— | ||
|
6
|
6
13260-60A00-000 SOLENOID ASSY |
13260-60A00-000 |
US $124.75 |
||
|
7
|
7
13270-62AT0-000 SCREW SET,IDLE ADJUST |
13270-62AT0-000 |
US $11.89 |
||
|
8
|
8
13248-840T0-000
Bush set
|
13248-840T0-000 |
— | ||
|
9
|
9
13245-60AT0-000
Valve set,check
|
13245-60AT0-000 |
— | ||
|
10
|
10
13494-37010-000 SPRING,ACCEL PUMP |
13494-37010-000 |
US $1.47 |
||
|
11
|
11
02112-34203-000 SCREW |
02112-34203-000 |
US $11 |
||
|
12
|
12
13320-823T0-000 VALVE SET,POWER |
13320-823T0-000 |
US $52.62 |
||
|
13
|
13
13481-60A00-000
COVER ASSY
|
13481-60A00-000 |
— | ||
|
14
|
14
02112-34083-000
Screw
|
02112-34083-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-3408A-000 SCREW |
02112-3408A-000 |
from US $0.80 |
||
|
15
|
15
09492-50020-000
JET,POWER(50)
|
09492-50020-000 |
— | ||
|
16
|
16
09492-20020-000 JET,PILOT(100) |
09492-20020-000 |
US $9.38 |
||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
L:601->50 |
09355-35754-601 |
— | ||
| replacement | |||||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601)L:601->50 |
09355-35006-601 |
from US $5.78 |
||
|
18
|
18
18480-79110-000 JET |
18480-79110-000 |
US $27.42 |
||
|
19
|
19
09355-35754-601
HOSE(3.5X7.5X601)
L:601->40 |
09355-35754-601 |
— | ||
| replacement | |||||
|
19
|
19
09355-35006-601 Hose(3.5X7.5X601)L:601->40 |
09355-35006-601 |
from US $5.78 |
||
|
20
|
20
09355-35754-601
HOSE(3.5X7.5X601)
L:601->80 |
09355-35754-601 |
— | ||
| replacement | |||||
|
20
|
20
09355-35006-601 Hose(3.5X7.5X601)L:601->80 |
09355-35006-601 |
from US $5.78 |
||
|
21
|
21
13330-60A00-000
DEPRESSION ASSY
|
13330-60A00-000 |
— | ||
|
22
|
22
13672-55A00-000
CLIP SPRING
|
13672-55A00-000 |
— | ||
|
23
|
23
13331-60A00-000
Washer
|
13331-60A00-000 |
— | ||
|
24
|
24
02112-35103-000
Screw 5x10
|
02112-35103-000 |
— | ||
| replacement | |||||
|
24
|
24
02112-3510B-000 SCREW |
02112-3510B-000 |
from US $0.76 |
||
|
25
|
25
13601-841T0-000 SCREW SET,ADJUSTN/AIR CON |
13601-841T0-000 |
US $9.16 |
||
|
25
|
25
13601-844T0-000
SCREW SET,ADJUST
W/AIR CON |
13601-844T0-000 |
— | ||
|
26
|
26
13601-60AT0-000 SCREW SET,ADJUSTSpring |
13601-60AT0-000 |
US $3.64 |
||
|
27
|
27
13342-60A00-000
DEPRESSION ASSY
|
13342-60A00-000 |
— | ||
|
28
|
28
02112-35087-000 SCREW |
02112-35087-000 |
US $12.50 |
||
|
29
|
29
13275-60AT0-000
SCREW SET,THROTTLE ADJUST
|
13275-60AT0-000 |
— | ||
|
30
|
30
13360-60A01-000
DEPRESSION ASSY
|
13360-60A01-000 |
— | ||
|
31
|
31
13384-78330-000 E-RING |
13384-78330-000 |
US $2.08 |
||
|
32
|
32
09404-06413-000
Clamp throttle
|
09404-06413-000 |
— | ||
| replacements | |||||
|
32
|
32
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
32
|
32
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
33
|
33
02112-35656-000 SCREW |
02112-35656-000 |
US $26.50 |
||
|
34
|
34
02112-35353-000
Screw
|
02112-35353-000 |
— | ||
| replacement | |||||
|
34
|
34
02112-3535B-000 SCREW |
02112-3535B-000 |
US $22.10 |
||
|
35
|
35
02112-35103-000
Screw 5x10
|
02112-35103-000 |
— | ||
| replacement | |||||
|
35
|
35
02112-3510B-000 SCREW |
02112-3510B-000 |
from US $0.76 |
||
|
36
|
36
13601-05066-000
Screw
|
13601-05066-000 |
— | ||
|
37
|
37
13380-60AT0-000
GASKET SET
|
13380-60AT0-000 |
— | ||
