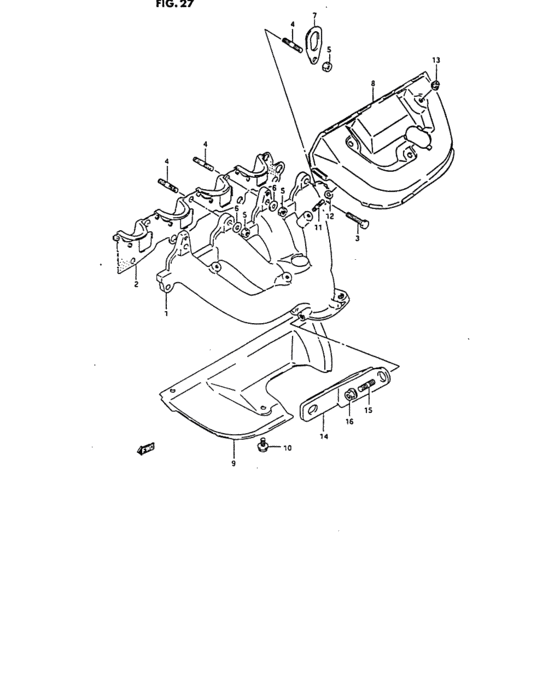

Exhaust manifold (2 VALVE:W/CARBURETOR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- MT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-60X51-000
MANIFOLD,EXH
|
14111-60X51-000 |
— | ||
|
2
|
2
14140-85C00-000
Gasket, exhaust manifold
|
14140-85C00-000 |
— | ||
|
3
|
3
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
3
|
3
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
4
|
4
13117-60B00-000
Stud bolt
|
13117-60B00-000 |
— | ||
| replacements | |||||
|
4
|
4
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
4
|
4
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
|
5
|
5
08310-10083-000
Nut starting motor
|
08310-10083-000 |
— | ||
|
6
|
6
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
6
|
6
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
6
|
6
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
7
|
7
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
8
|
8
14120-60A00-000
COVER,EXH MANF,UPPER
|
14120-60A00-000 |
— | ||
|
9
|
9
14130-85C00-000
Cover, manifold lower
|
14130-85C00-000 |
— | ||
|
10
|
10
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $1.01 |
||
|
11
|
11
01411-06123-000
Bolt, stud
|
01411-06123-000 |
— | ||
| replacement | |||||
|
11
|
11
01411-0612A-000 BOLT,STUD |
01411-0612A-000 |
from US $0.67 |
||
|
12
|
12
09160-84C00-000
Washer
|
09160-84C00-000 |
— | ||
|
13
|
13
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
14
|
14
14190-60A01-000
Stiffener,exh manf
|
14190-60A01-000 |
— | ||
|
15
|
15
01411-10163-000
スタッドボルト
|
01411-10163-000 |
— | ||
| replacement | |||||
|
15
|
15
01411-1016A-000 BOLT,STUD |
01411-1016A-000 |
US $1.60 |
||
|
16
|
16
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
